Driver/Vehicle Information Display: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the overhead console from the headliner (Refer to ELECTRICAL/OVERHEAD CONSOLE - REMOVAL).

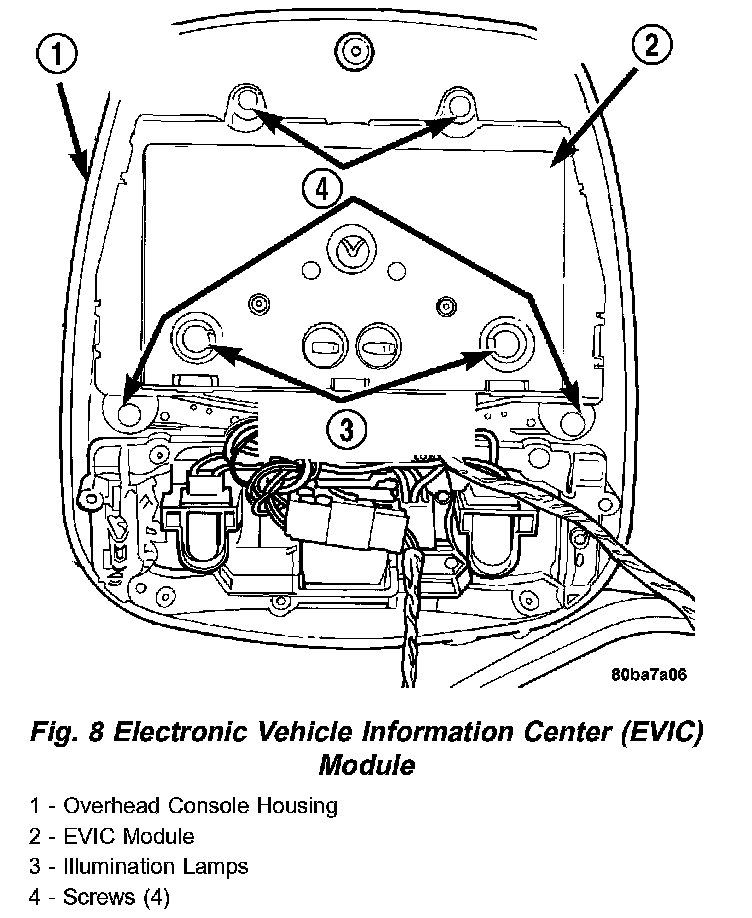

Fig. 8 Electronic Vehicle Information Center (EVIC) Module:

3. Remove the four screws that secure the Electronic Vehicle Information Center (EVIC) module to the overhead console housing (Fig. 8).
4. Remove the EVIC module from the overhead console housing.

NOTE: IF THE EVIC MODULE IS BEING REPLACED, THE TIRE PRESSURE MONITORING SYSTEM MUST BE PROGRAMMED. REFER TO THE TIRES/WHEELS SECTION FOR DETAILED INSTRUCTIONS.

INSTALLATION
1. Position the EVIC module onto the overhead console housing.
2. Install and tighten the four screws that secure the EVIC module to the overhead console housing. Tighten the screws to 0.9 Nm (8 in. lbs.).
3. Install the overhead console onto the headliner (Refer to ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION).
4. Reconnect the battery negative cable.

NOTE:
- IF A NEW COMPASS MINI-TRIP COMPUTER HAS BEEN INSTALLED, THE COMPASS WILL HAVE TO BE CALIBRATED AND THE VARIANCE SET. REFER TO COMPASS VARIATION ADJUSTMENT AND COMPASS CALIBRATION IN THE SERVICE PROCEDURES SECTION OF THIS GROUP FOR THE PROCEDURES.
- IF THE EVIC MODULE IS BEING REPLACED, THE TIRE PRESSURE MONITORING SYSTEM MUST BE PROGRAMMED. REFER TO THE TIRES/WHEELS SECTION FOR DETAILED INSTRUCTIONS.
- SOME 300M VEHICLES USE A DIFFERENT RECOMMENDED TIRE PRESSURE (TIRE SPECIFIED). FOR THIS REASON, ANYTIME A EVIC MODULE IS REMOVED OR REPLACED A DRB III SCAN TOOL MUST BE USED TO SET/VERIFY THAT THE CORRECT TIRE PRESSURE SET-POINT IS PROGRAMMED IN THE EVIC MODULE. FAILURE TO DO SO COULD RESULT IN INCORRECT TIRE PRESSURE MONITORING SET POINTS.
