Steering Column Cover Reinforcement Replacement

REMOVAL
1. Remove steering column cover.

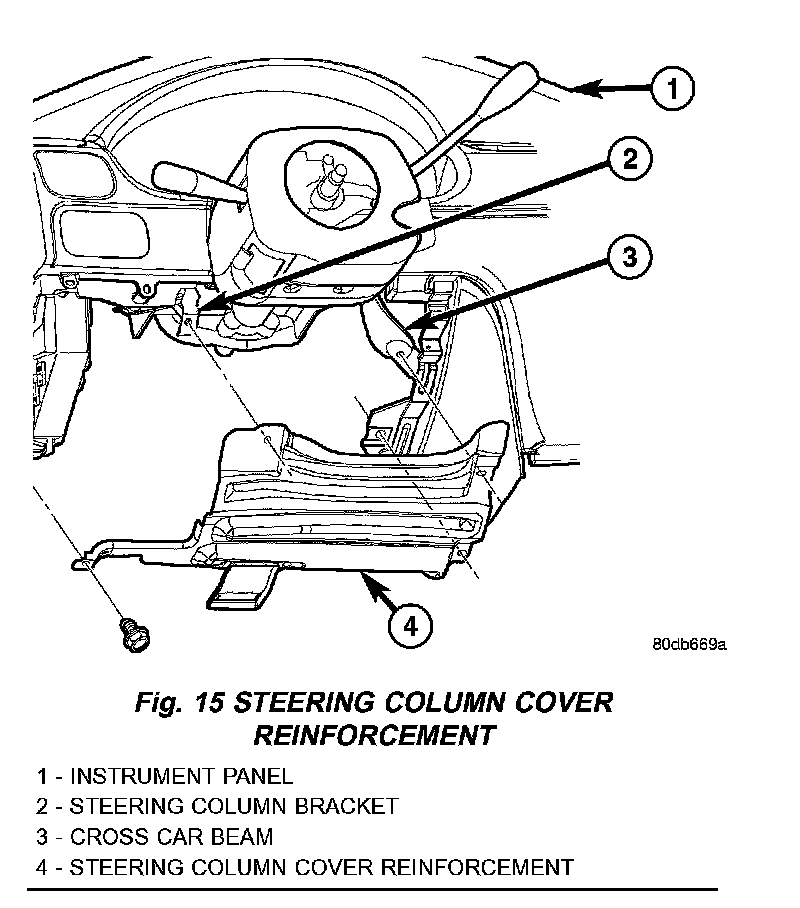

Fig.15 Steering Column Cover Reinforcement:

2. Remove four bolts attaching steering column cover reinforcement.
3. Remove diagnostic connector from the steering column cover reinforcement.
4. Remove steering column cover reinforcement from vehicle.

INSTALLATION
1. Place steering column cover reinforcement in position.
2. Connect diagnostic connector to the steering column cover reinforcement.
3. Install the four bolts attaching steering column cover reinforcement.
4. Install steering column cover.
