6 Passenger Vehicles

REMOVAL

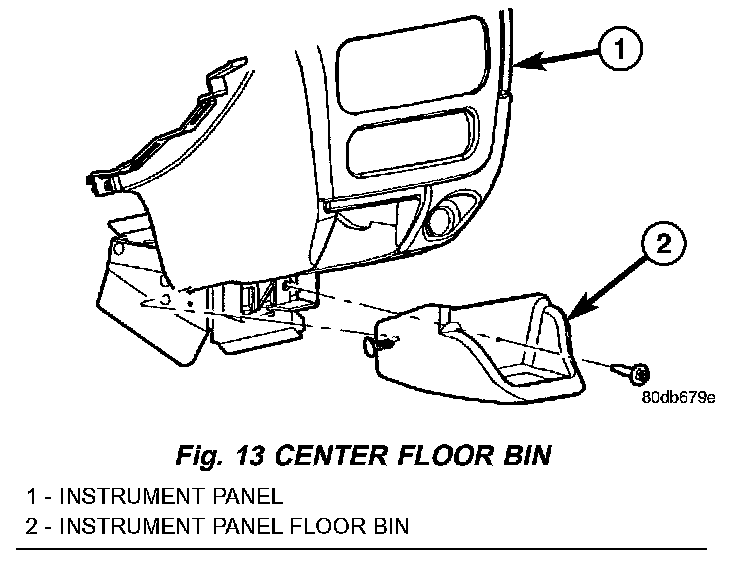

Fig.13 Center Floor Bin:

1. Remove one screw and one push pin to the lower instrument panel.
2. Pull rearward and remove the floor bin.

INSTALLATION
1. Place the instrument panel bin into position and firmly snap into place.
2. Install one screw and one push pin to the lower instrument panel.
