Clock: Description and Operation

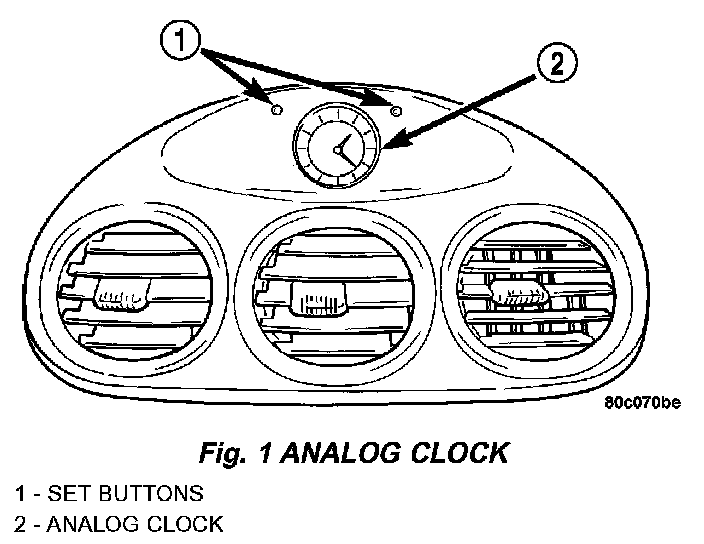

Fig. 1 Analog Clock:
The clock is of analog type (Fig. 1), mounted in the instrument panel center air distribution bezel.
Refer to the Owner's Manual for setting instructions.
