A/C Discharge Hose/Line Replacement

REMOVAL

WARNING: REVIEW THE WARNINGS IN THE FRONT OF THIS SECTION BEFORE PERFORMING THE FOLLOWING OPERATION.

1. Open the hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Recover the refrigerant from the system. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant System Recovery, Refrigerant System Recovery

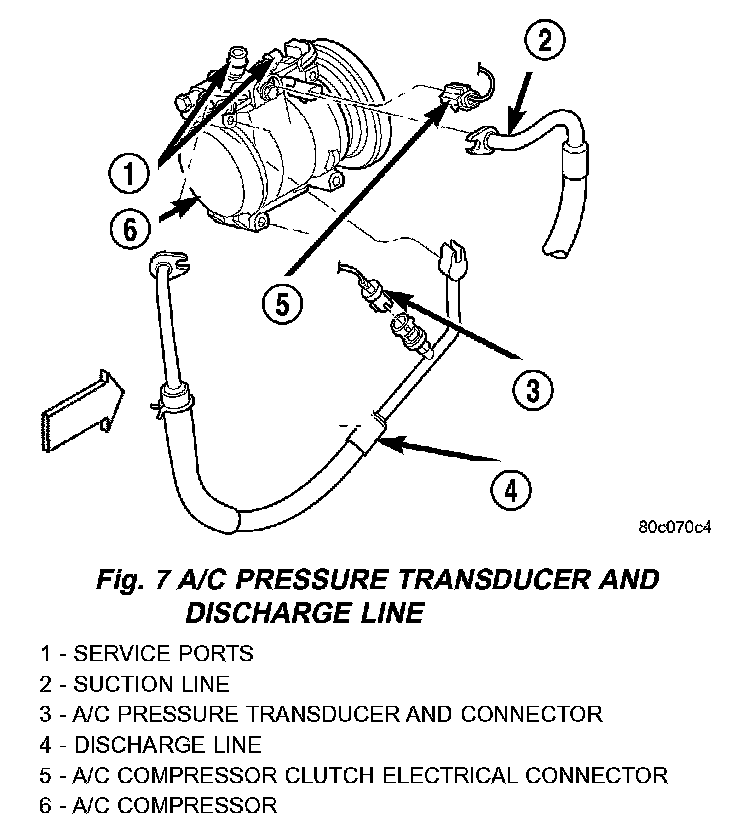

Fig. 7 A/C Pressure Transducer And Discharge Line - 3.2L/3.5L:

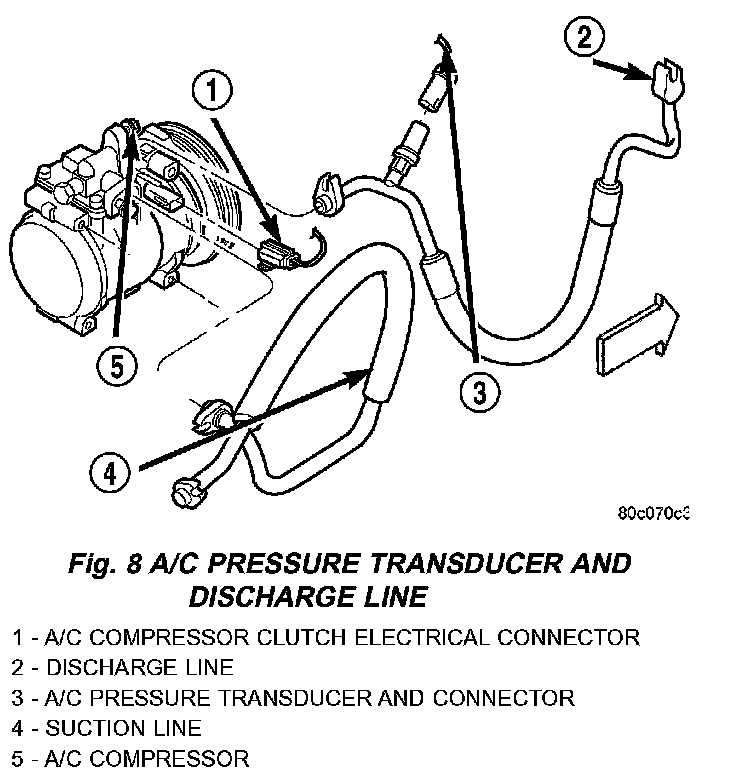

Fig. 8 A/C Pressure Transducer And Discharge Line - 2.7L:

3. Disconnect the a/c pressure transducer wire harness and.
4. Remove the a/c pressure transducer. Refer to: Heating and Air Conditioning, Refrigerant Pressure Sensor/Switch, HVAC, Service and Repair, Service and Repair

5. Disconnect the discharge line at the compressor using an M13 Hex wrench for 2.7L, and a 6 mm allen wrench for 3.2/3.5L.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.

6. Disconnect the discharge line at the A/C condenser using an M13 Hex wrench.

INSTALLATION

WARNING: REVIEW THE WARNINGS IN THE FRONT OF THIS SECTION BEFORE PERFORMING THE FOLLOWING OPERATION.

Any kinks or sharp bends in the refrigerant plumbing will reduce the capacity of the entire air conditioning system. Kinks and sharp bends reduce the flow of refrigerant in the system. A good rule for the flexible hose refrigerant lines is to keep the radius of all bends at least ten times the diameter of the hose. In addition, the flexible hose refrigerant lines should be routed so they are at least 80 millimeters (3 inches) from the exhaust manifold.

High pressures are produced in the refrigerant system when the air conditioning compressor is operating. Extreme care must be exercised to make sure that each of the refrigerant system connections is pressure-tight and leak free. It is a good practice to inspect all flexible hose refrigerant lines at least once a year to make sure they are in good condition and properly routed.

1. Connect the discharge line at the A/C condenser. Tighten retainer bolt to 23 Nm (17 ft. lbs.).
2. Connect the discharge line at the compressor. Tighten retainer bolt to 23 Nm (17 ft. lbs.).
3. Install the a/c pressure transducer. Refer to: Heating and Air Conditioning, Refrigerant Pressure Sensor/Switch, HVAC, Service and Repair, Service and Repair

5. Connect the negative battery cable remote terminal to the remote battery post.
6. Evacuate the refrigerant system. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant System Evacuate, Refrigerant System Evacuate

7. Charge the refrigerant system. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant System Charge, Refrigerant System Charge
