Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Application and ID >> Manual Temperature Control (MTC)

Manual Temperature Control (MTC)

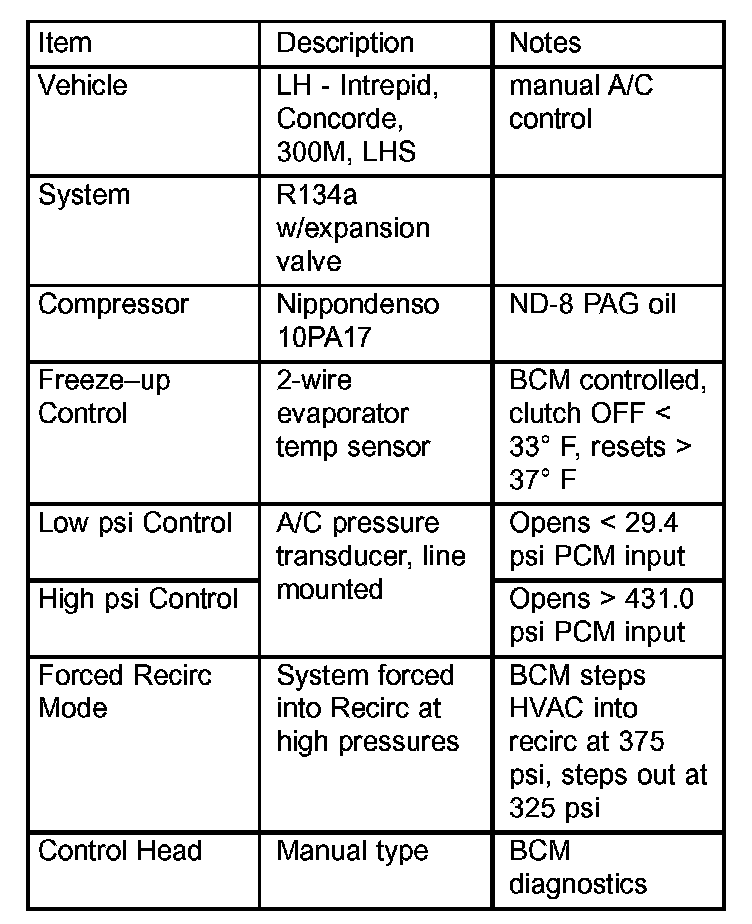

A/C Application Table - MTC:

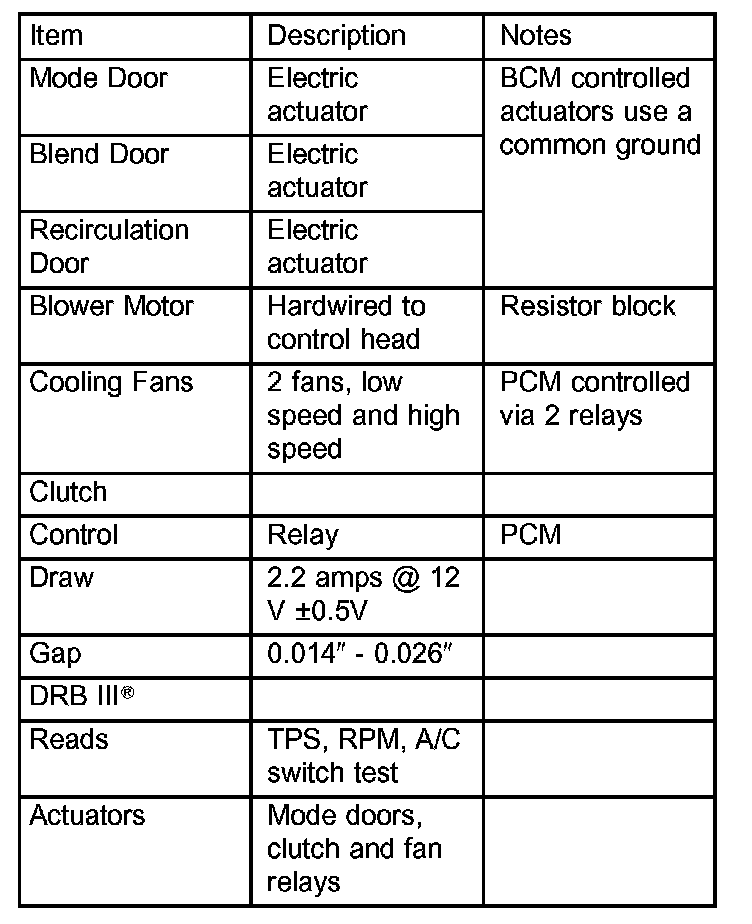

A/C Application Table - MTC:
