Removal

ENGINE 0IL COOLER
1. The engine oil cooler is serviced with the radiator.

COOLER LINES





1. Disconnect cooler lines at radiator (Fig. 88).

NOTE: The quick connect feature of the cooler lines are a one time assembly only design. To remove cooler lines, unscrew the fittings from block and oil pan.

2. Disconnect lines at the engine block and oil pan by unscrewing the fittings.

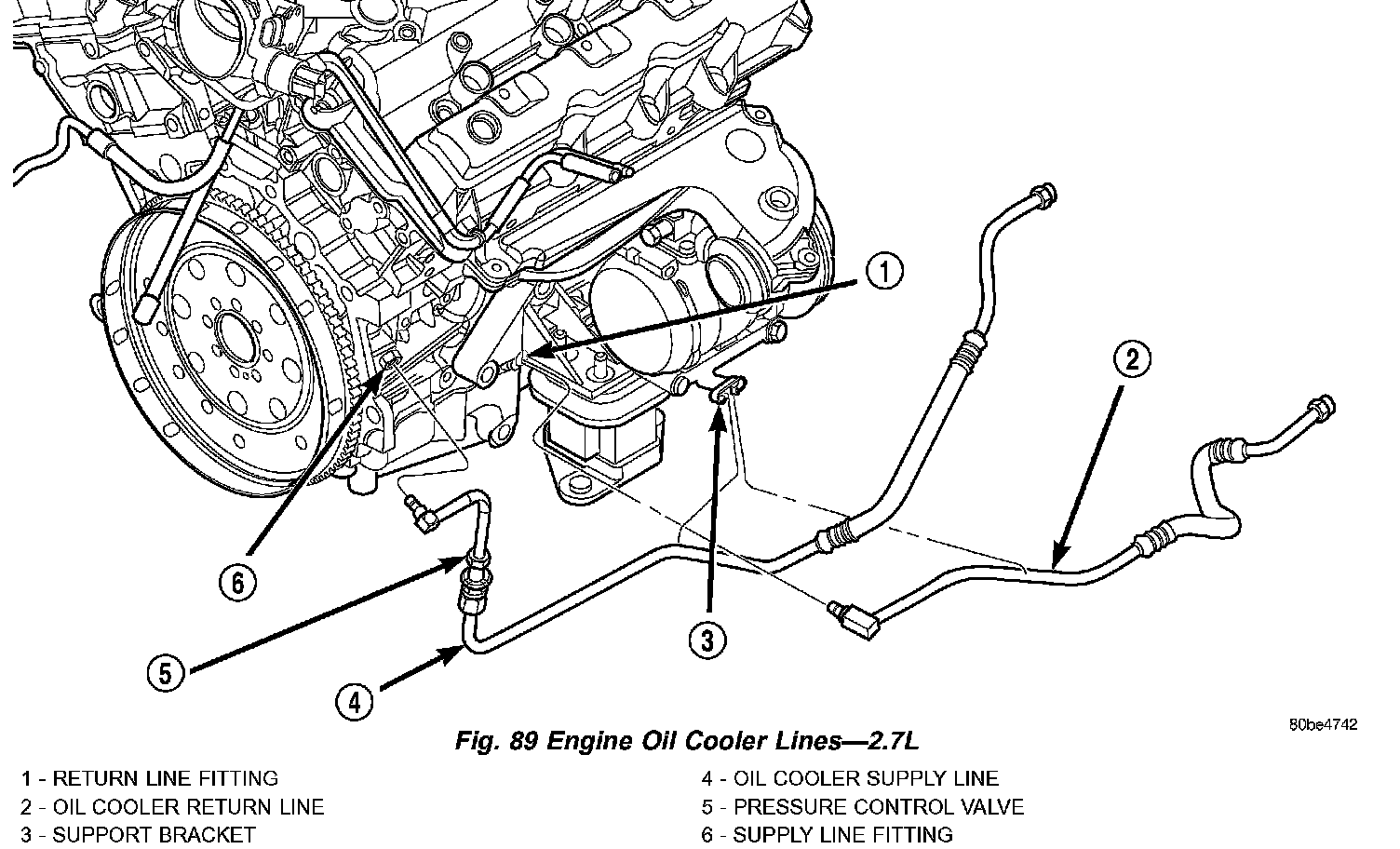

3. Disconnect lines from support bracket and retainer (Fig. 88) and (Fig. 89).
4. Remove lines (Fig. 89).

PRESSURE CONTROL VALVE
1. Disconnect supply line to control valve.
2. Remove control valve by unscrewing fitting from engine block (Fig. 89).
