Left Mount

REMOVAL




1. Raise vehicle on hoist.

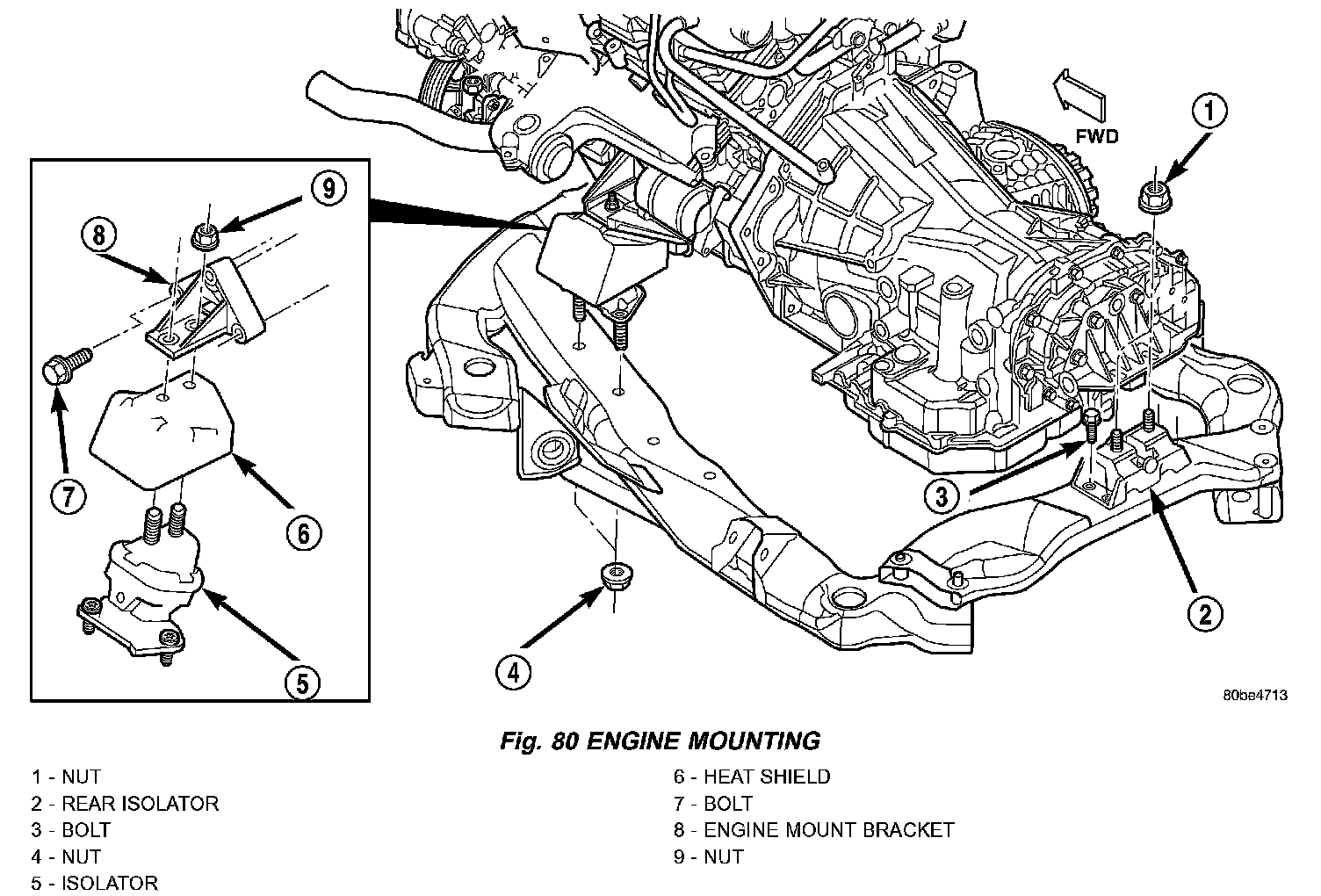

2. Remove the isolator attaching nuts from top of the mounting bracket (Fig. 80).
3. Support the engine with a jack and a block of wood across the full width of the oil pan.
4. Remove the lower attaching nuts from the bottom of the isolator to the frame (Fig. 80).
5. Raise engine carefully with jack enough to remove the isolator with heat shield from its mount.

INSTALLATION
1. Install isolator mount with heat shield onto the frame.
2. Lower the engine onto the isolator mount.
3. Remove jack from vehicle.
4. Tighten the isolator to frame nuts to 61 Nm (45 ft. lbs.) (Fig. 80).
5. Install the upper attaching nuts to mount and tighten to 61 Nm (45 ft. lbs.) (Fig. 80).
6. Lower vehicle.
