Seats

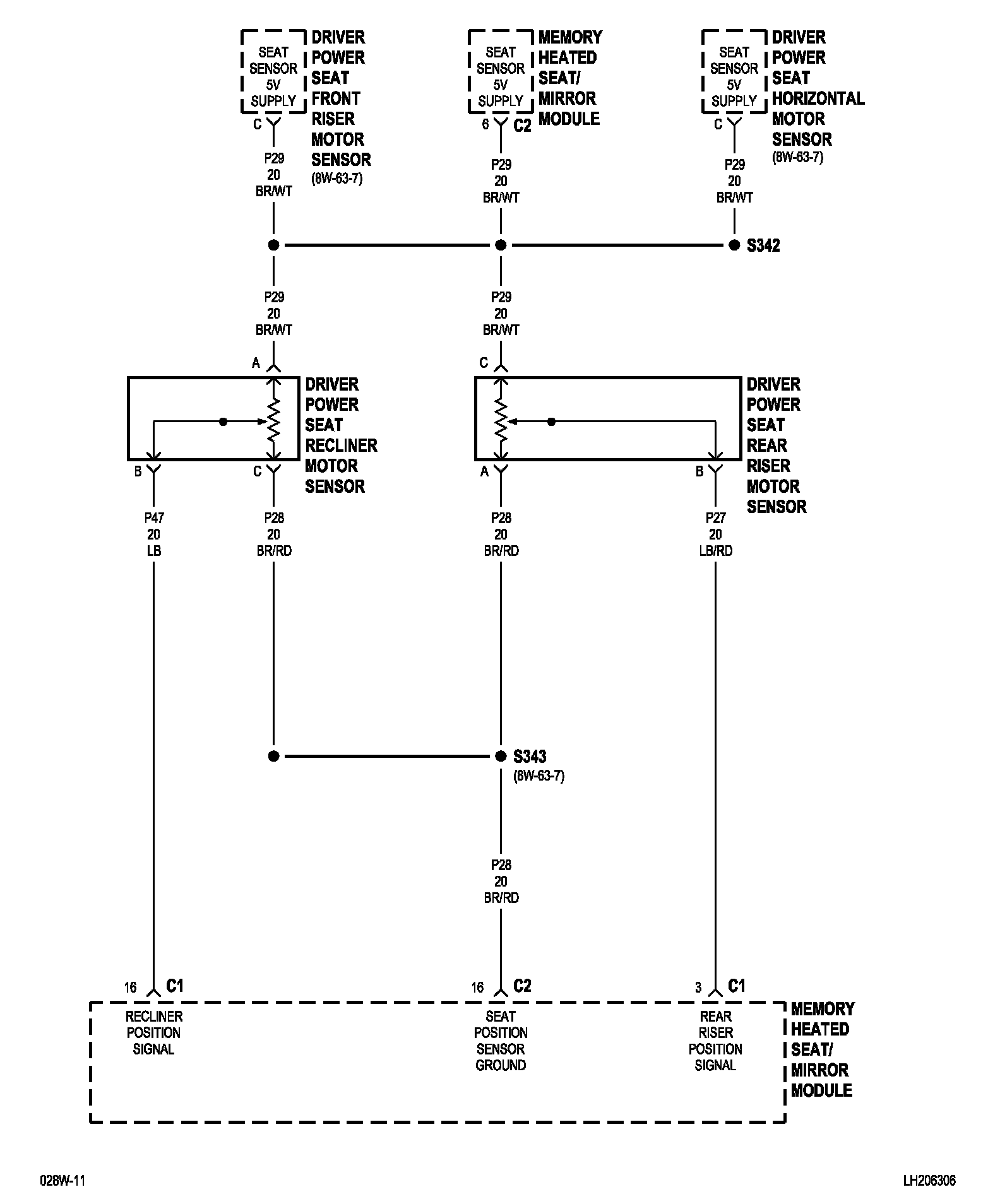

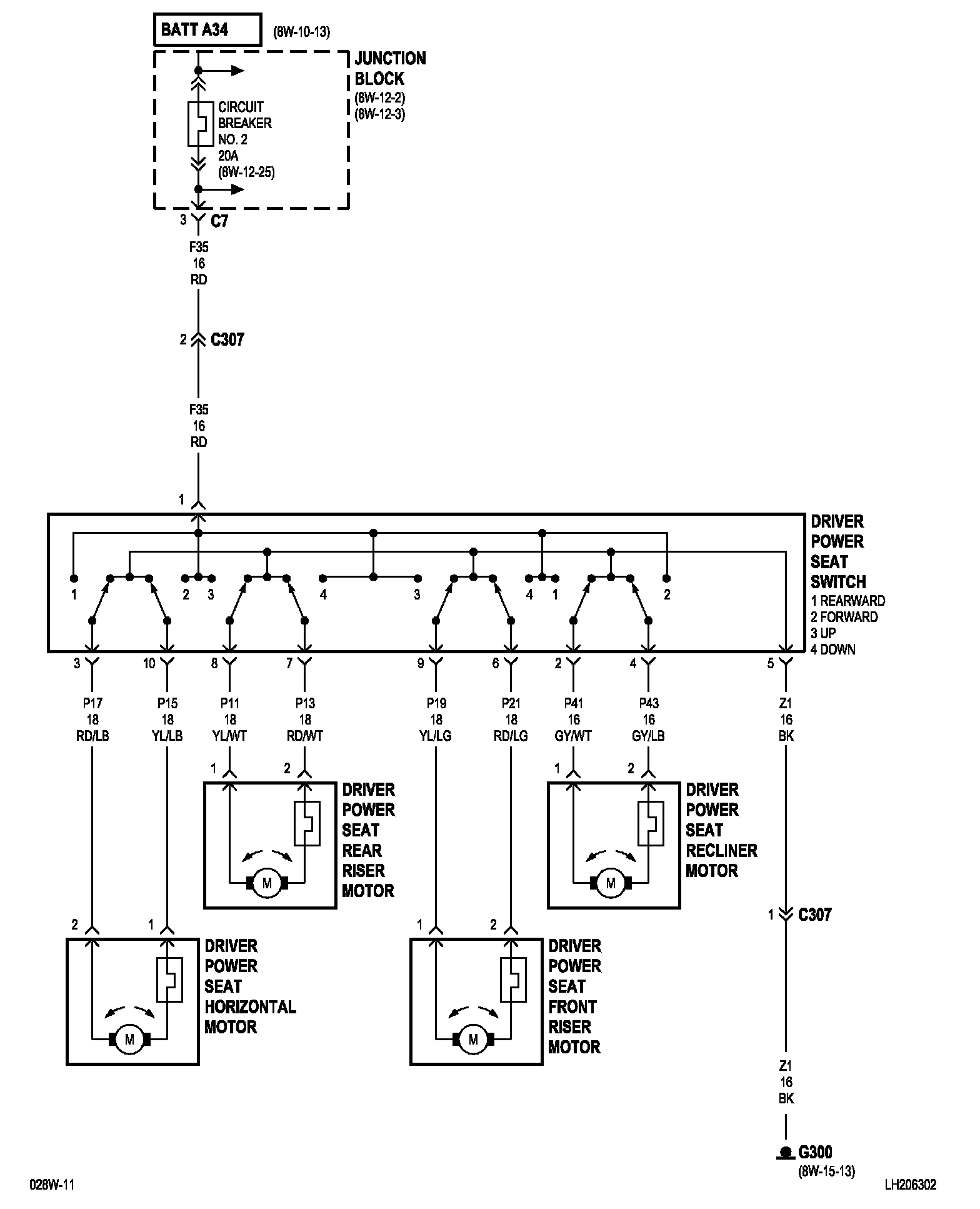

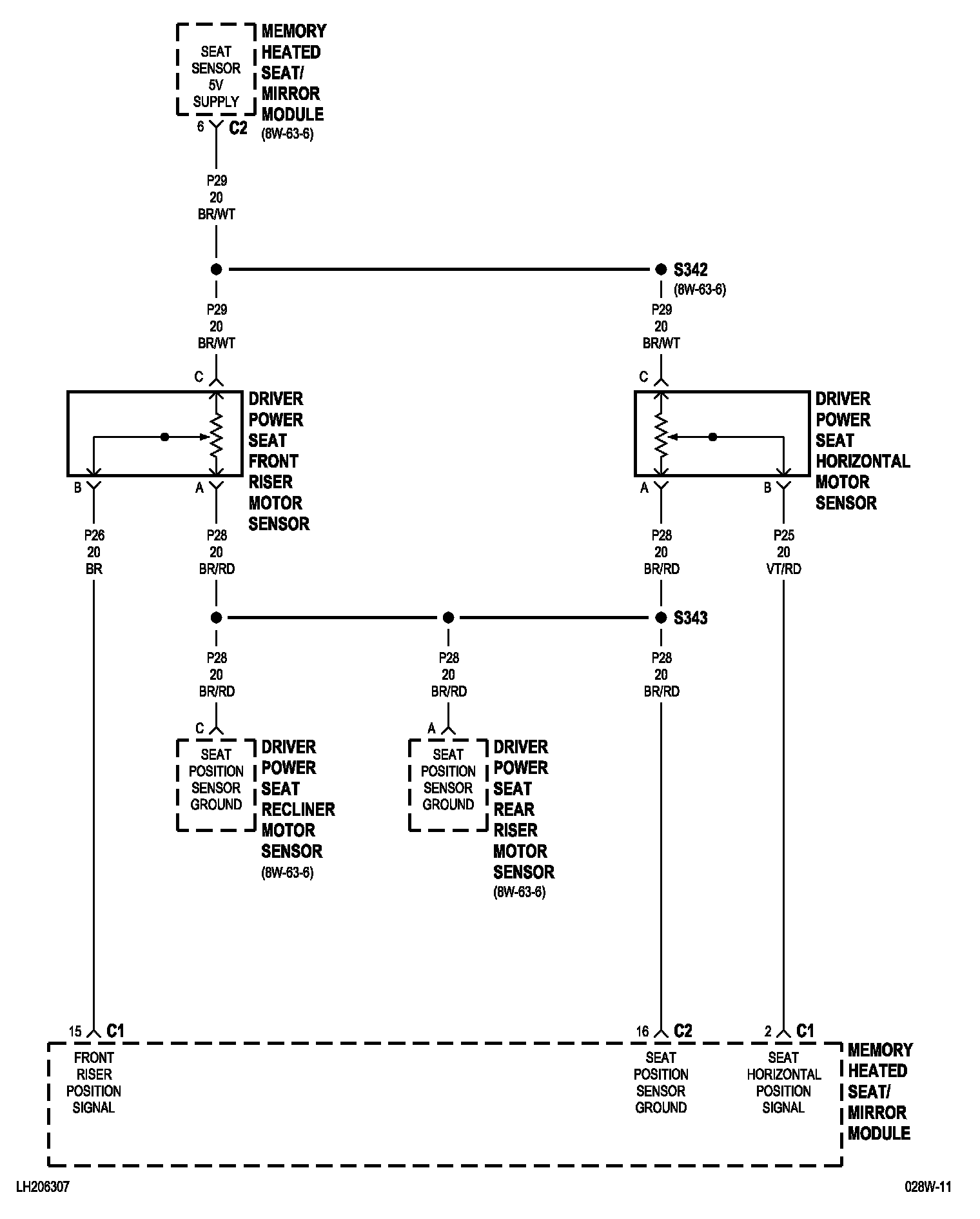

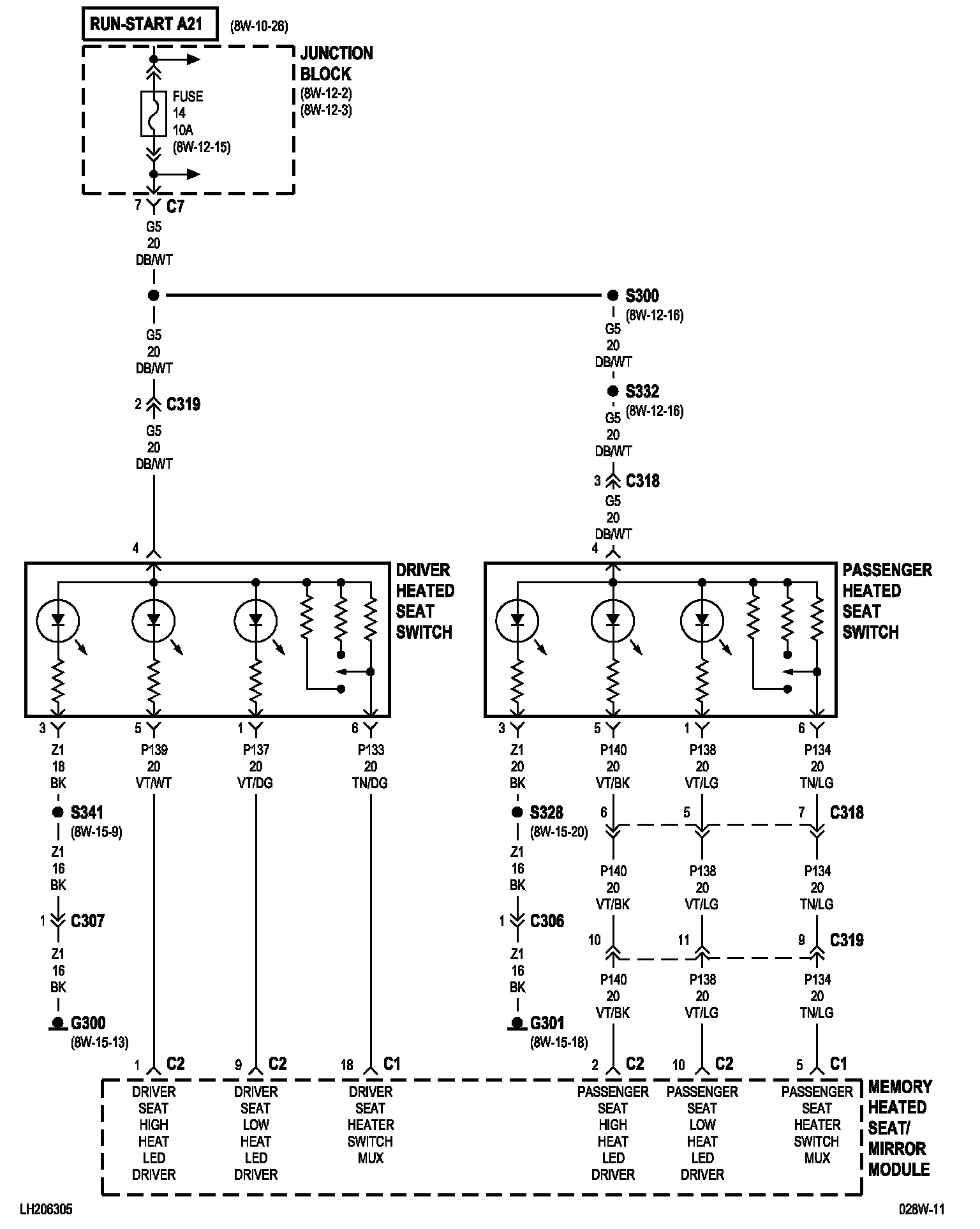

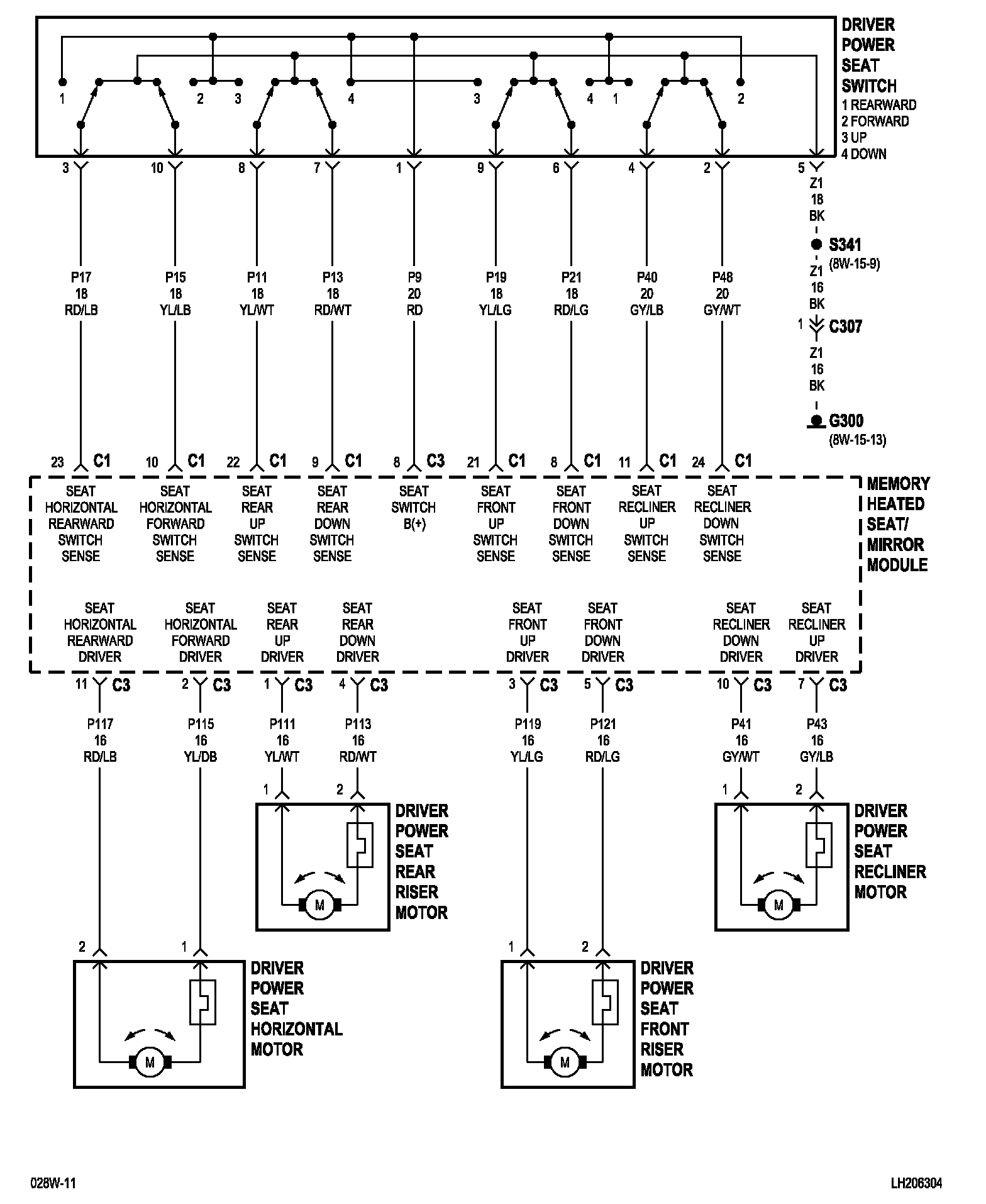

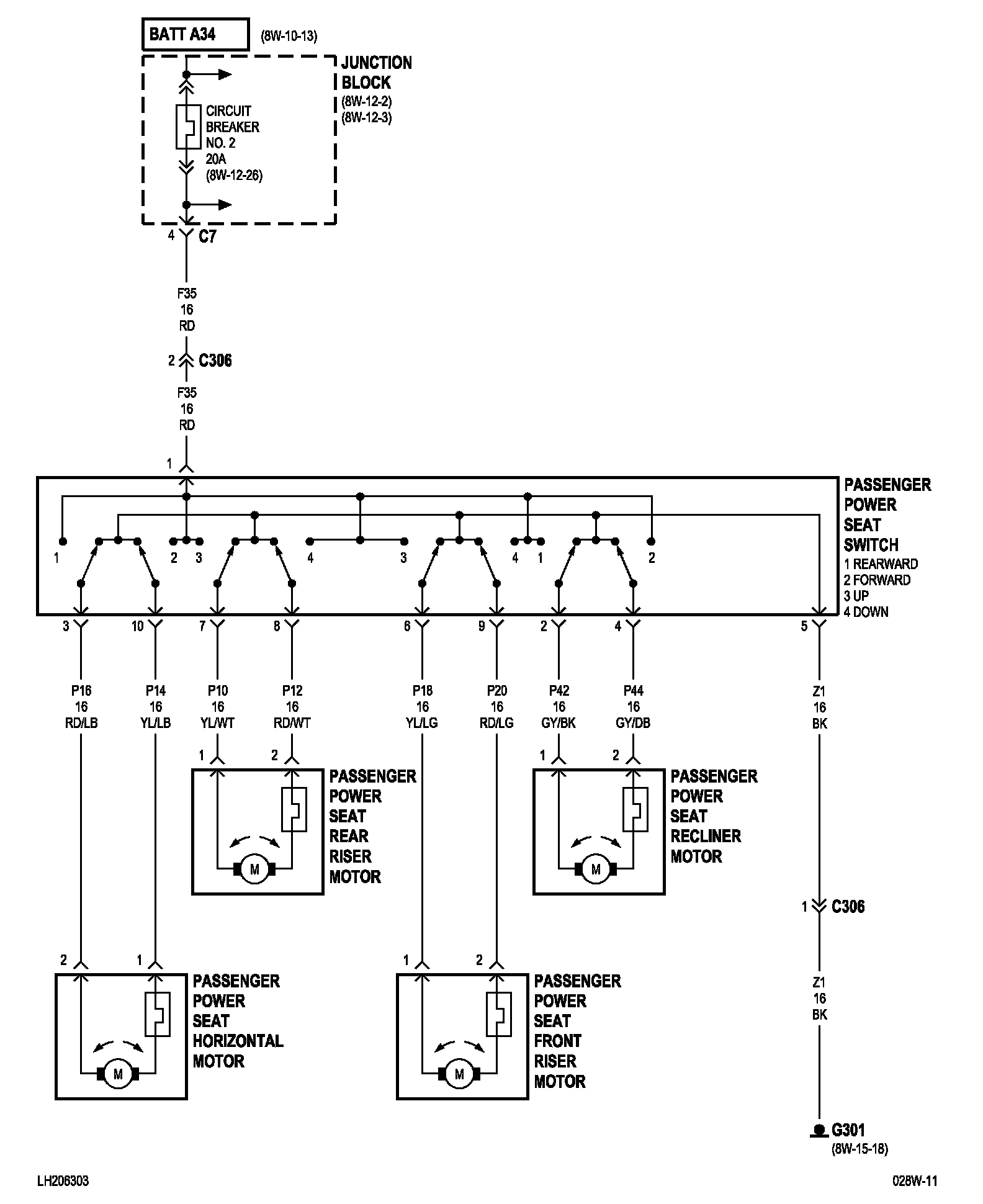

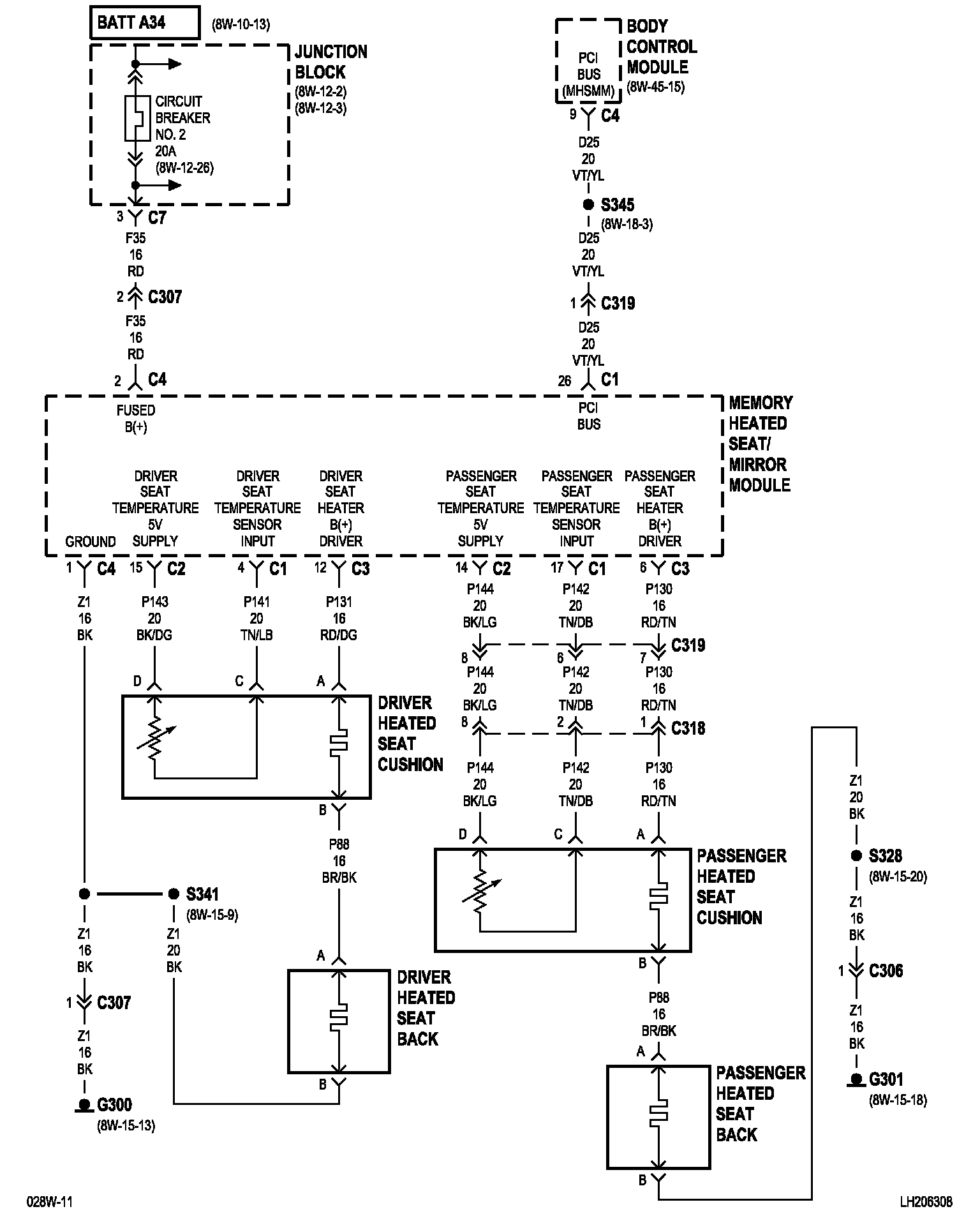

8w-63-2 (Base):

8w-63-3:

8w-63-4 (Memory/Heated):

8w-63-5 (Memory/Heated):

8w-63-6 (Memory/Heated):

8w-63-7 (Memory/Heated):

8w-63-8 (Memory/Heated):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
