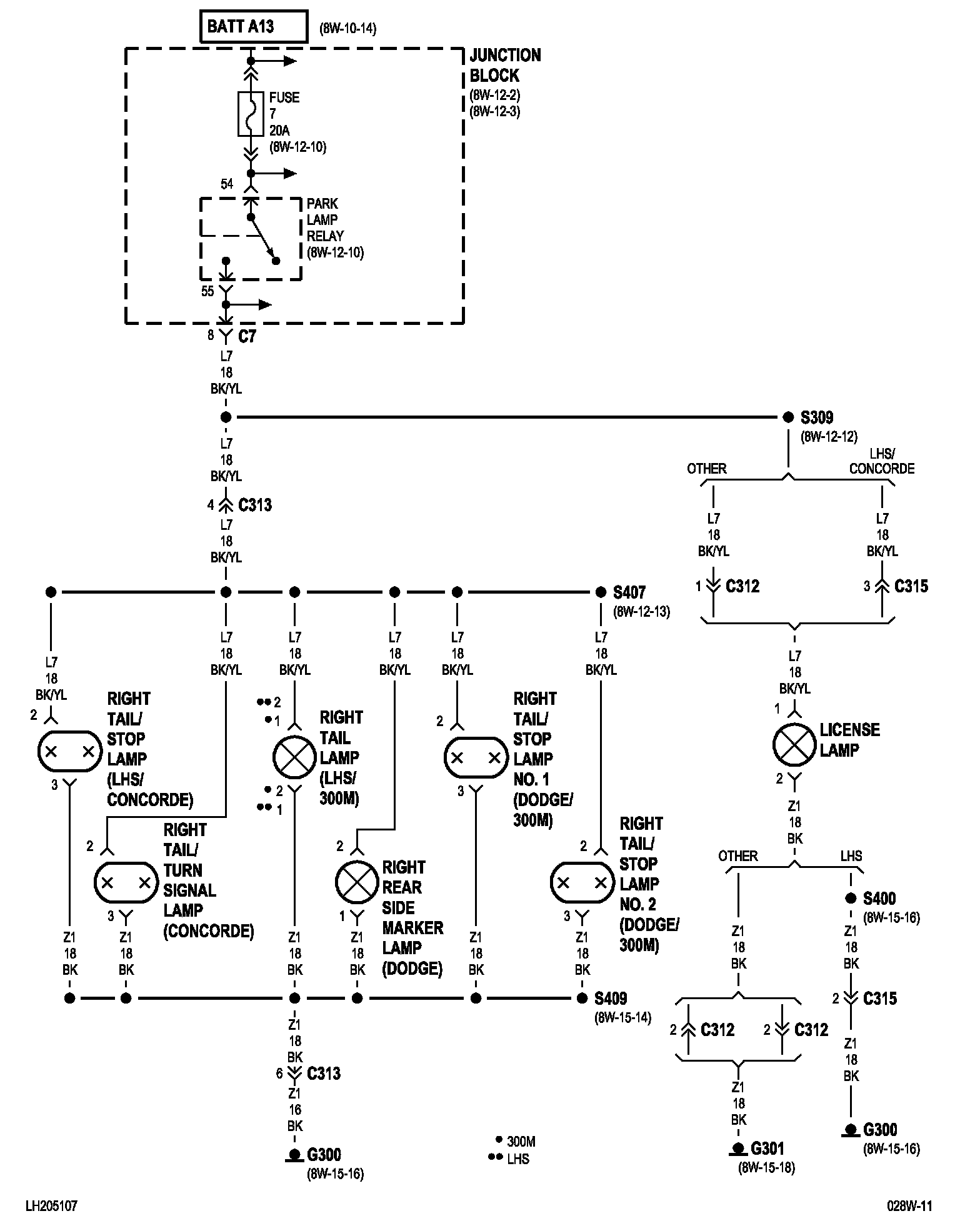

Rear Lighting

8w-51-2 (Except Built-Up-Export):

8w-51-3 (Built-Up-Export):

8w-51-4 (MHS):

8w-51-5 (Except LHS):

8w-51-6 (Except Built-Up-Export):

8w-51-7 (Except Built-Up-Export):

8w-51-8 (Except Built-Up-Export):

8w-51-9 (Built-Up-Export):

8w-51-10 (Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
