Front Lighting

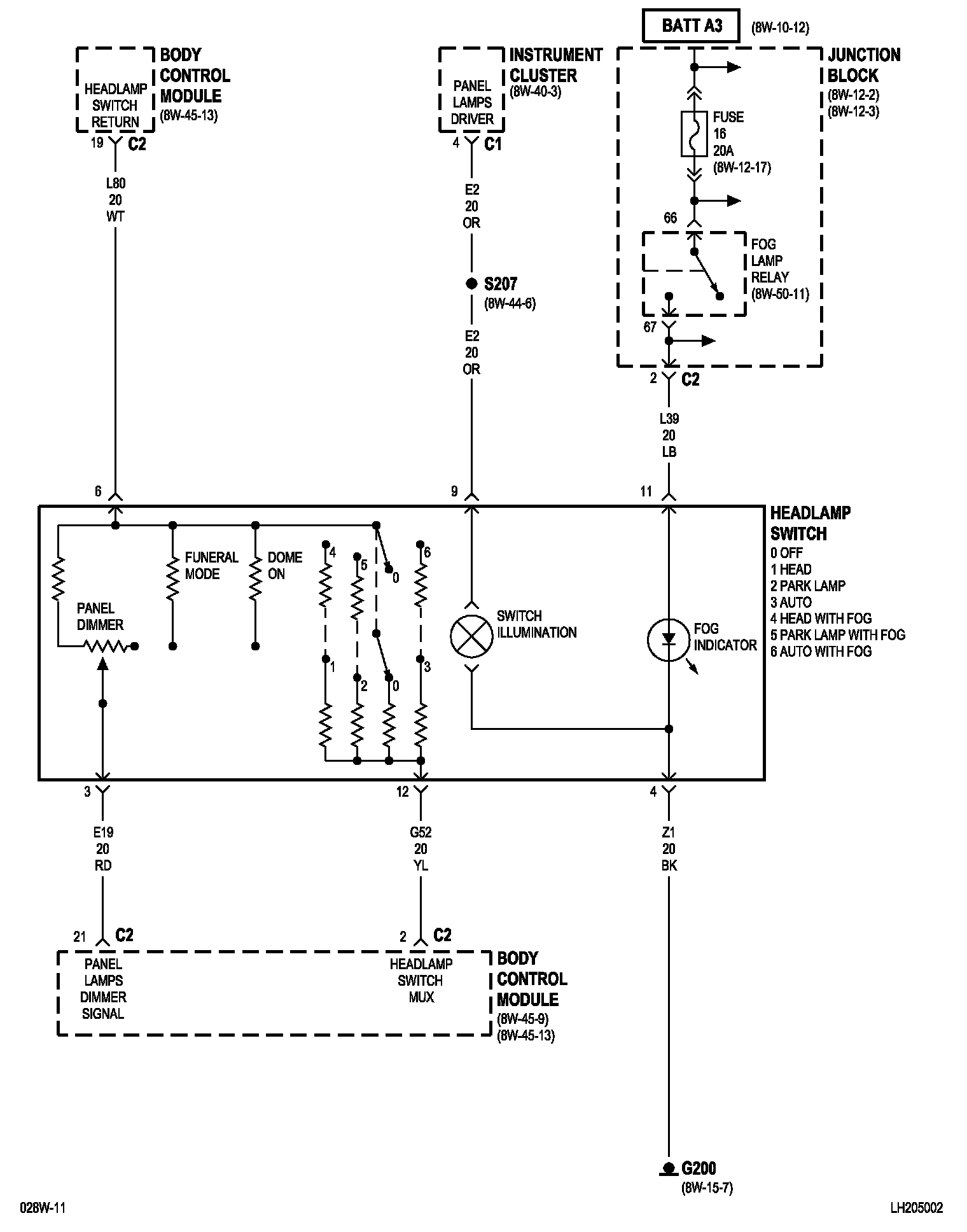

8w-50-2 (Except Built-Up-Export):

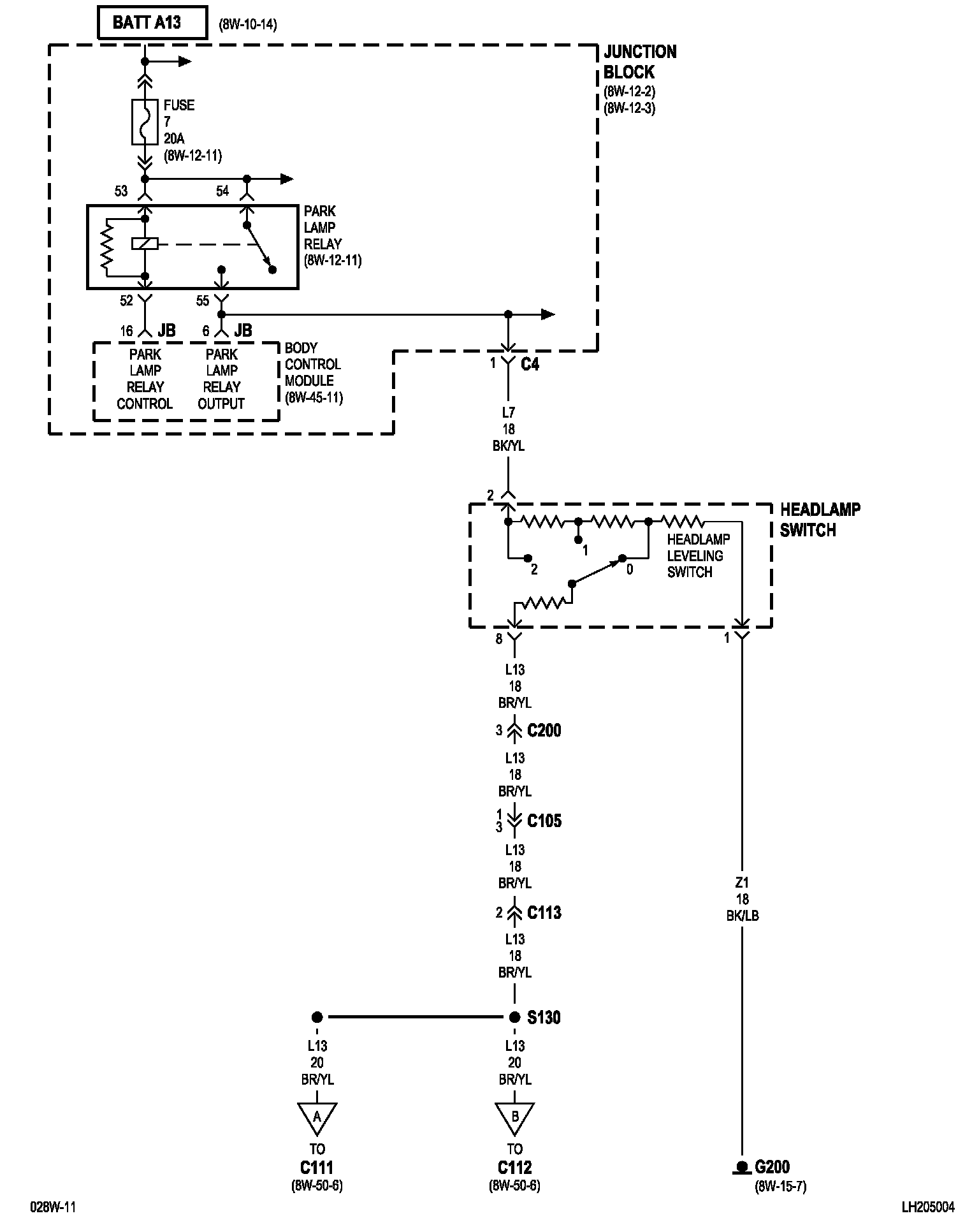

8w-50-3 (Built-Up-Export):

8w-50-4 (Built-Up-Export):

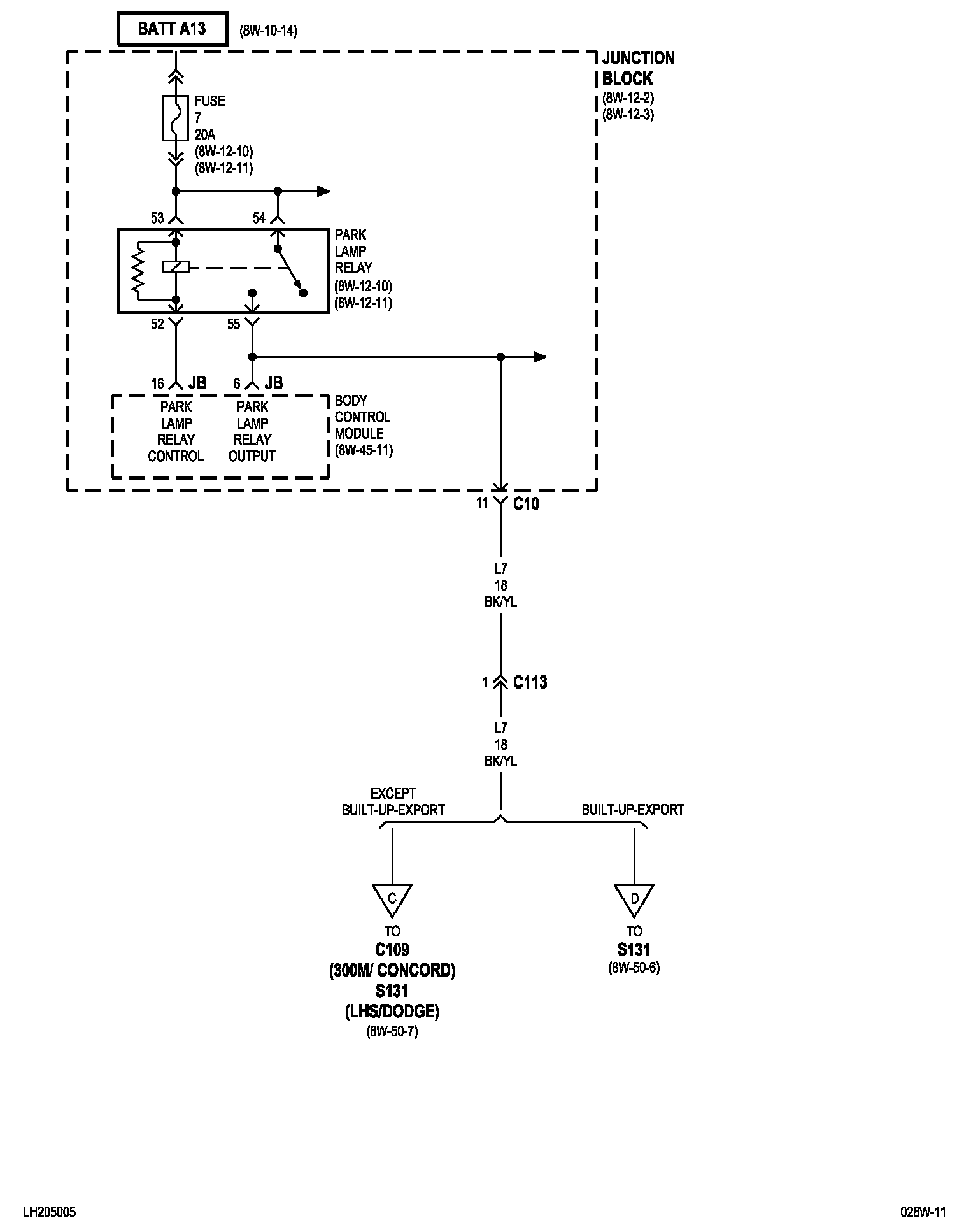

8w-50-5:

8w-50-6 (Built-Up-Export):

8w-50-7 (Except Built-Up-Export):

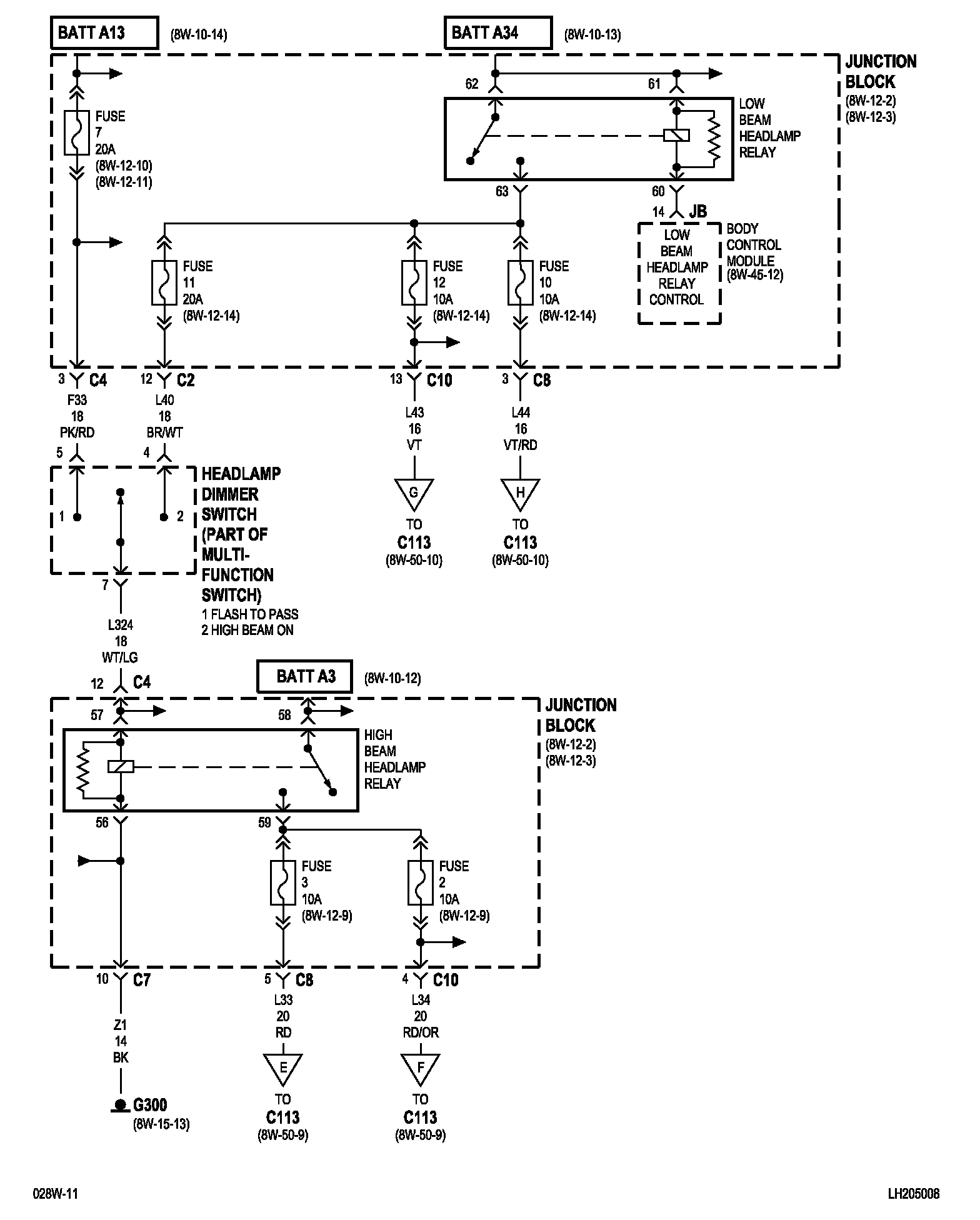

8w-50-8:

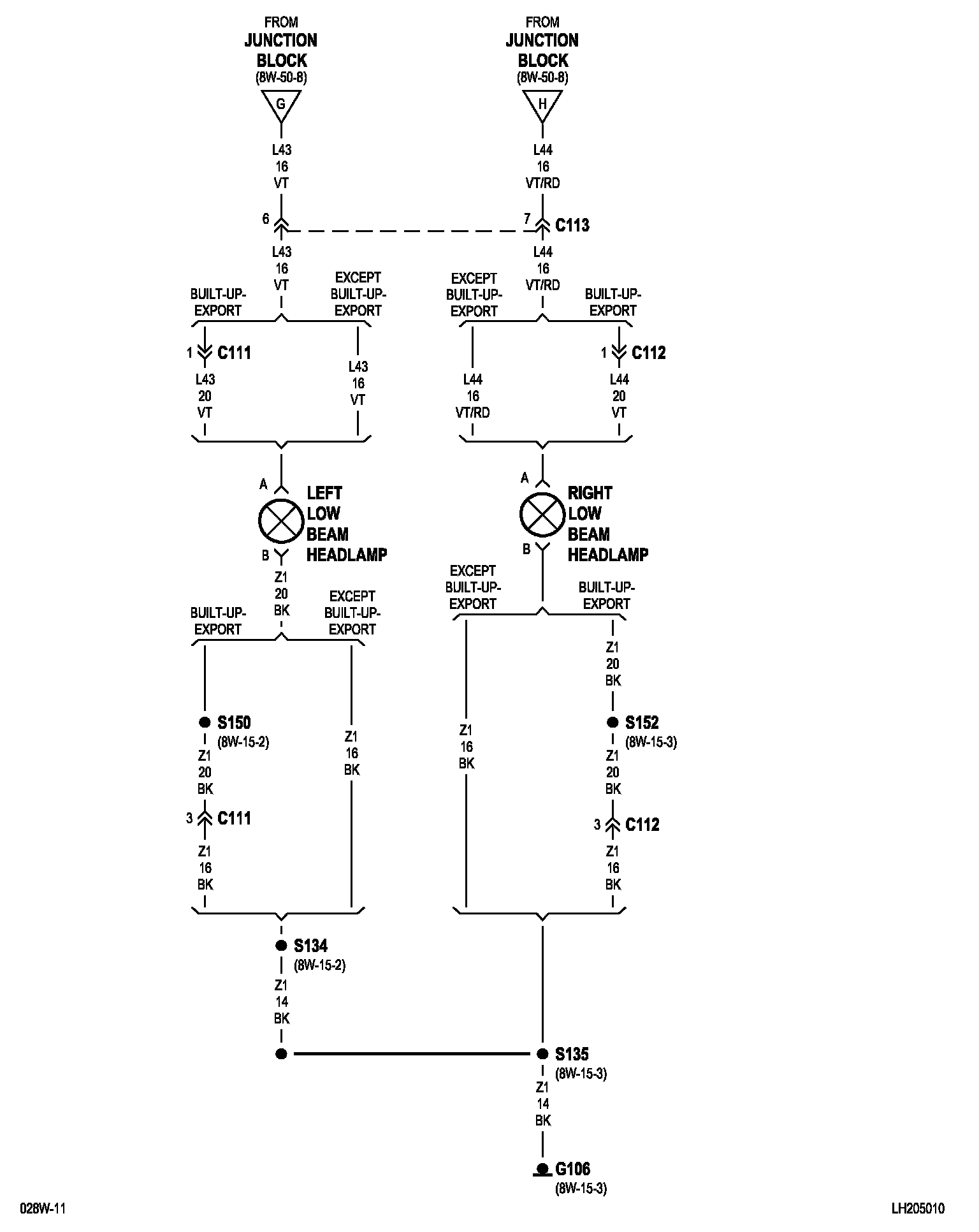

8w-50-9:

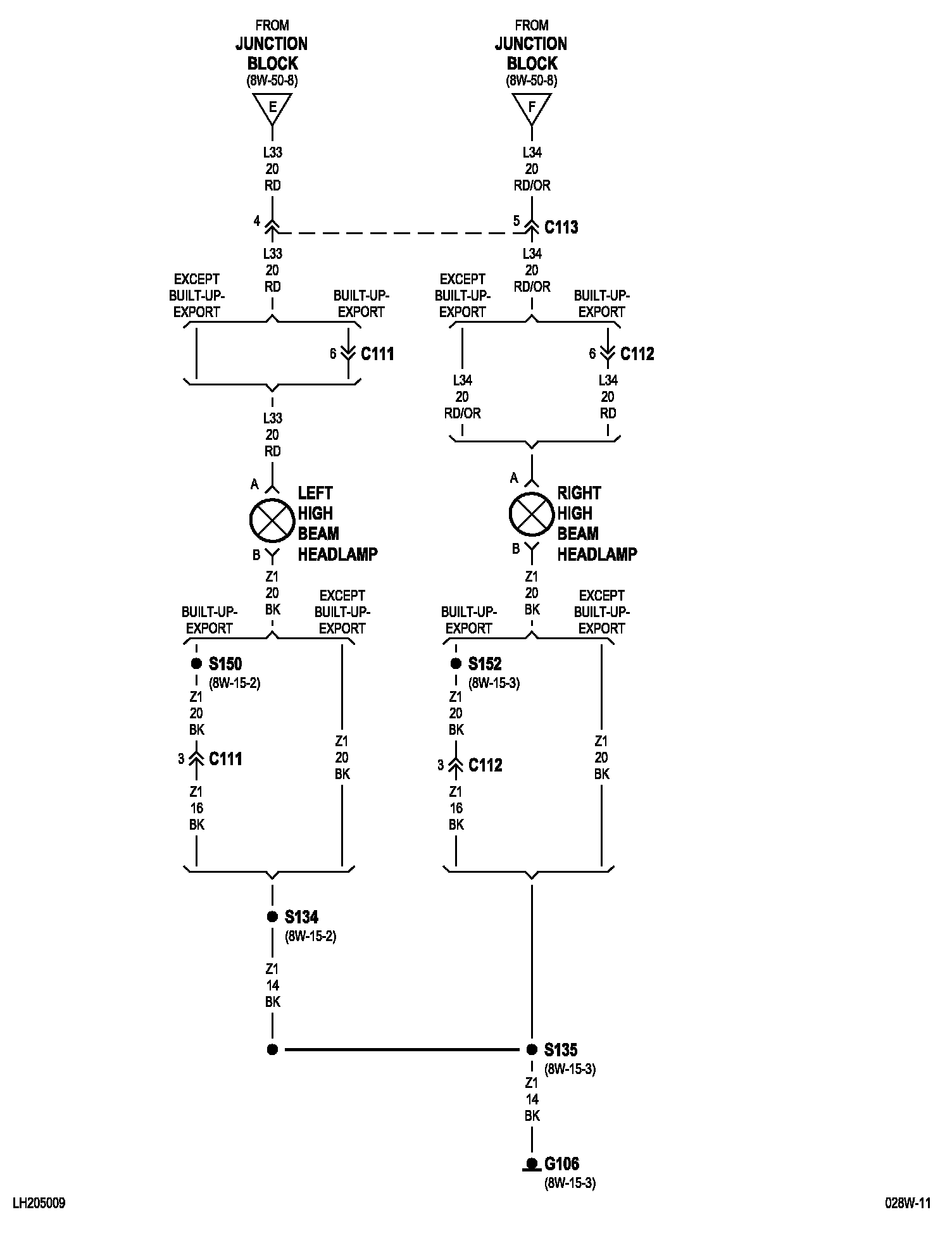

8w-50-10:

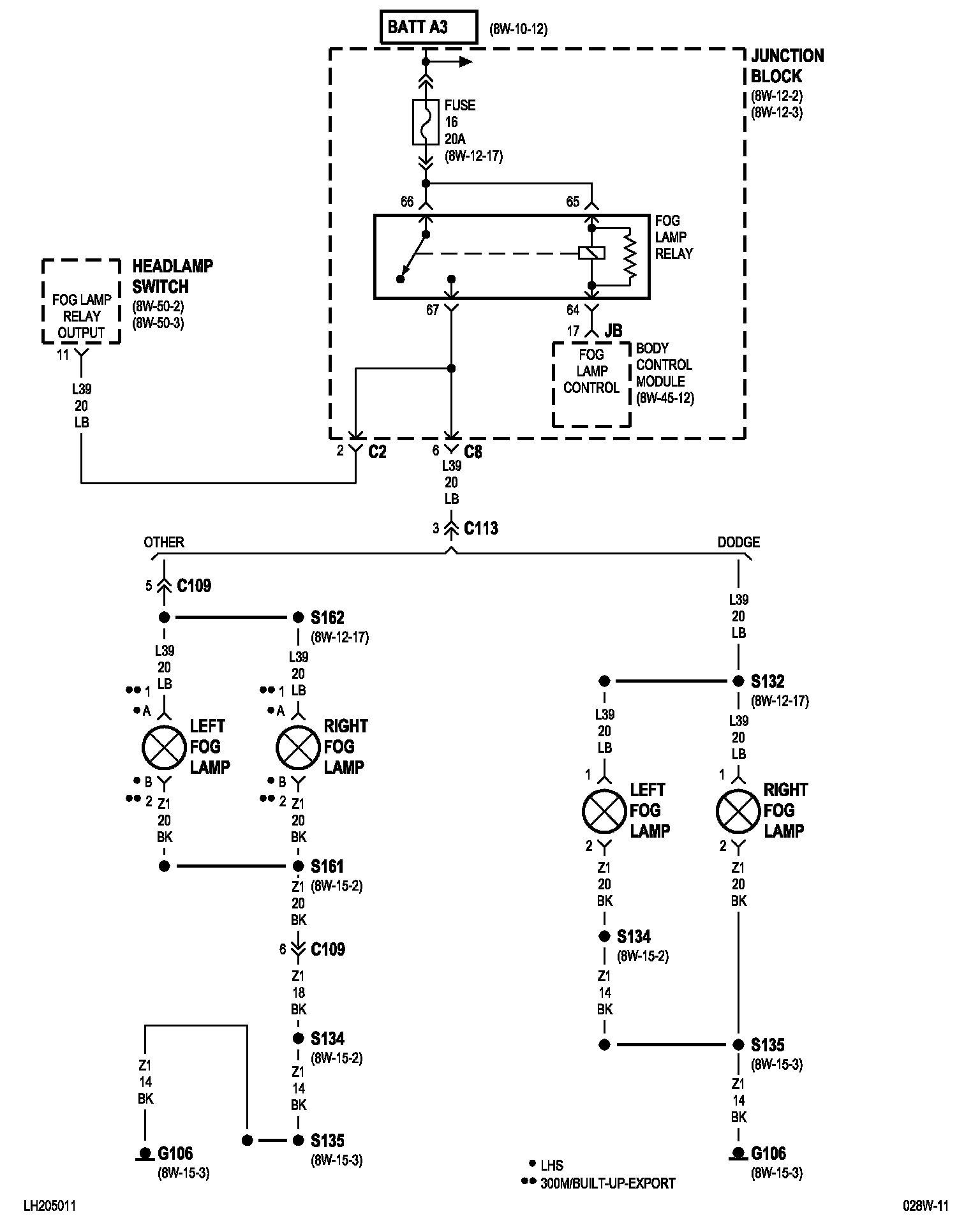

8w-50-11 (Fog Lamps):

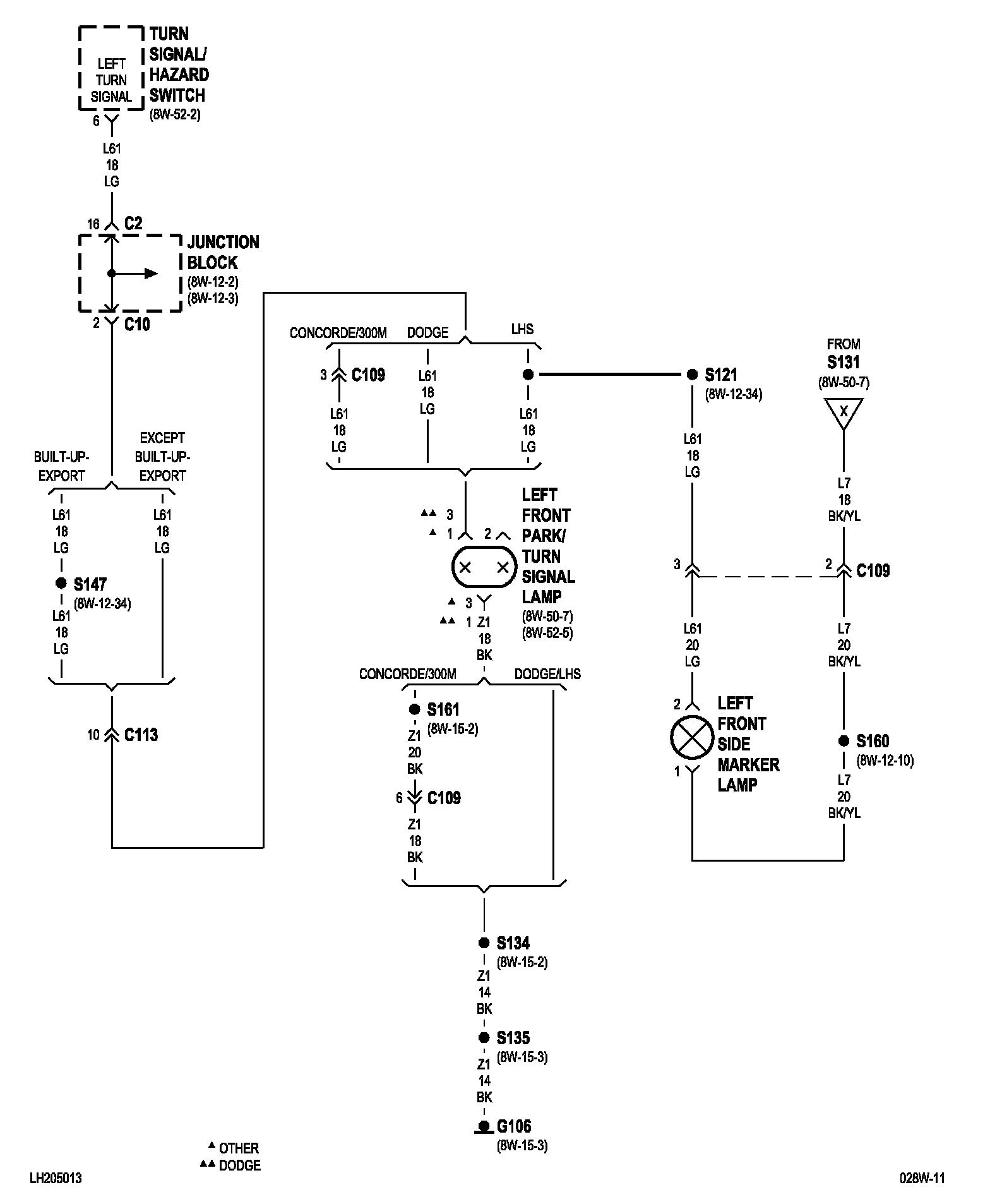

8w-50-12:

8w-50-13 (Except Built-Up-Export):

8w-50-14 (Except Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
