Heating and Air Conditioning

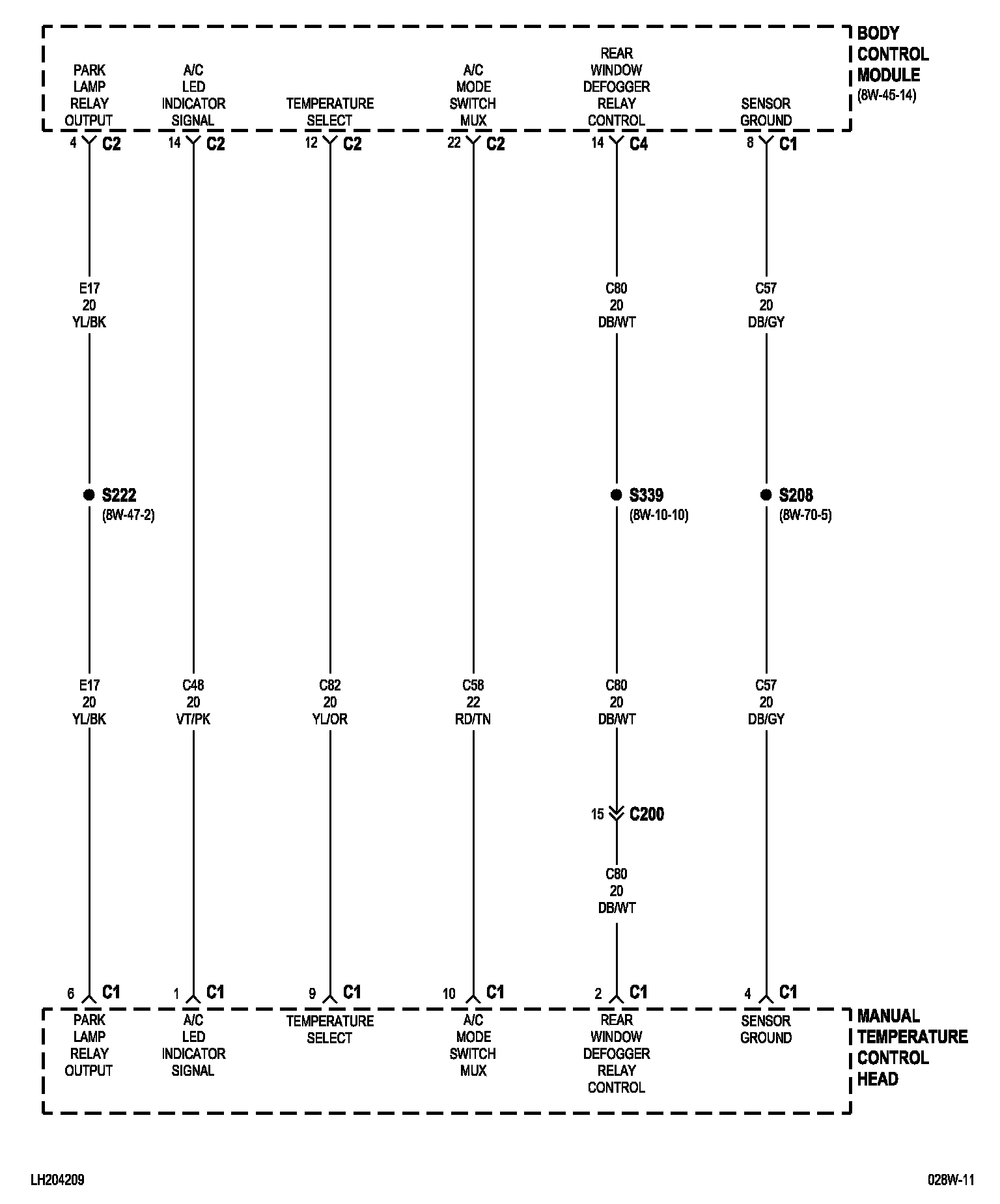

8w-42-2 (MTC):

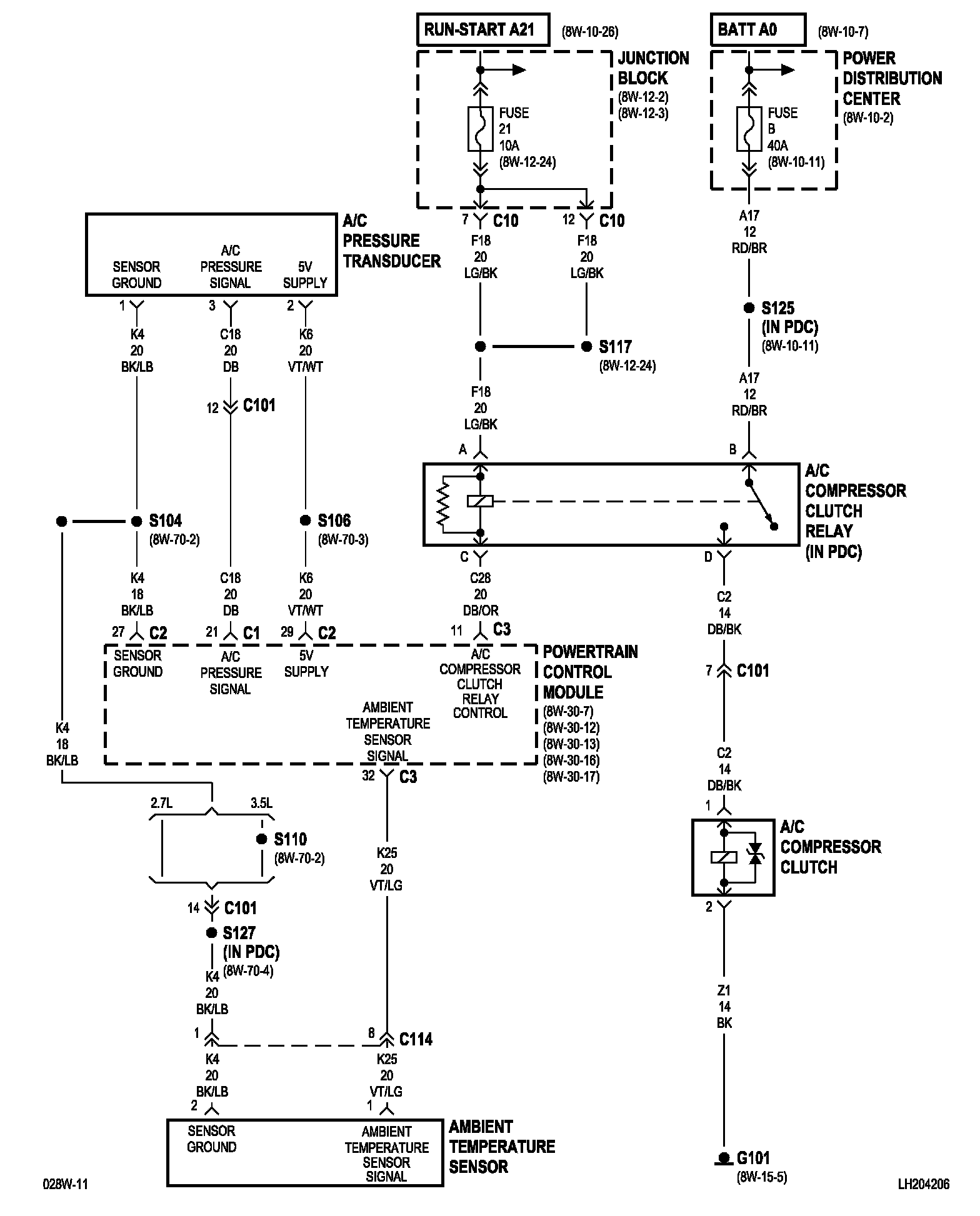

8w-42-3:

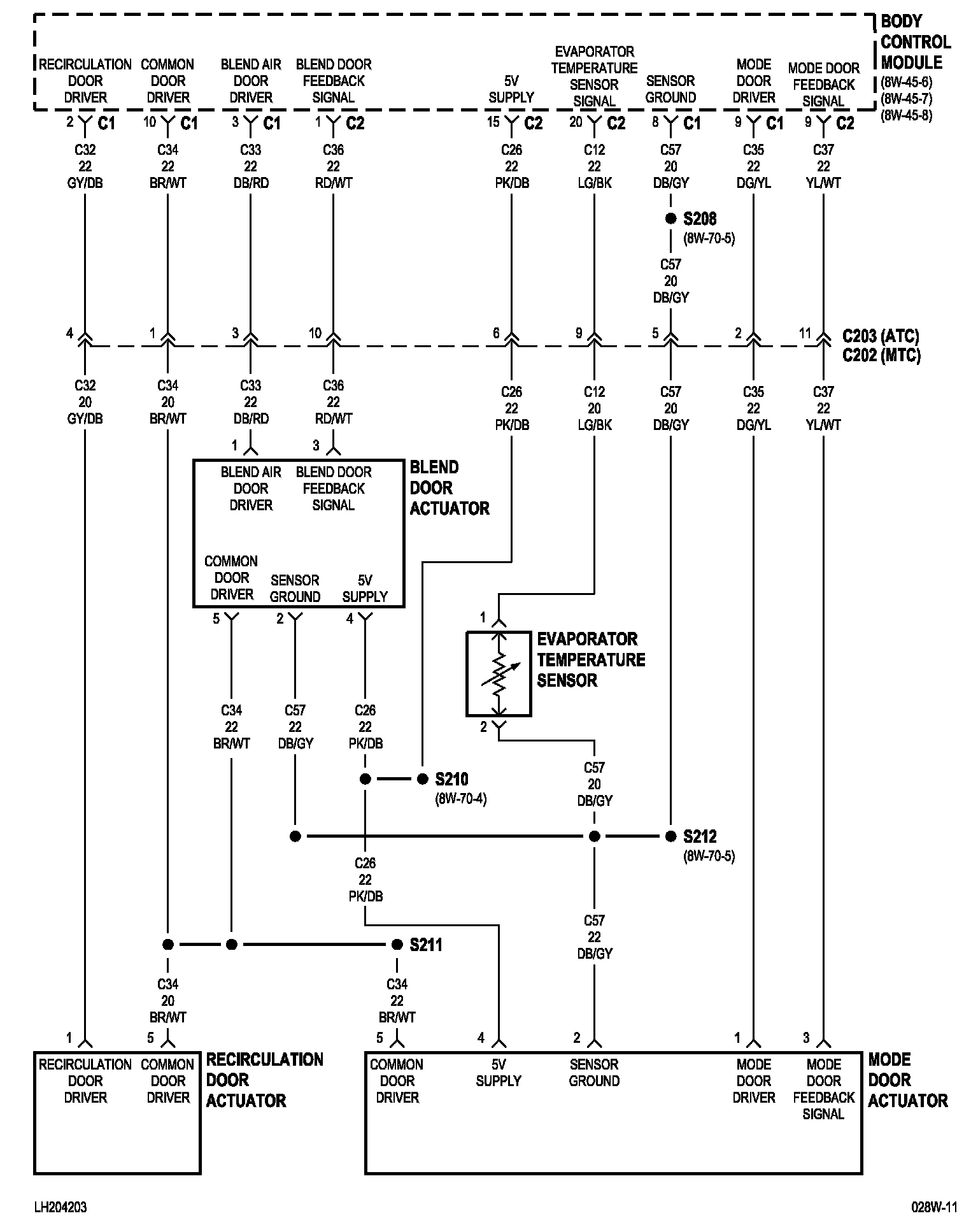

8w-42-4 (ATC):

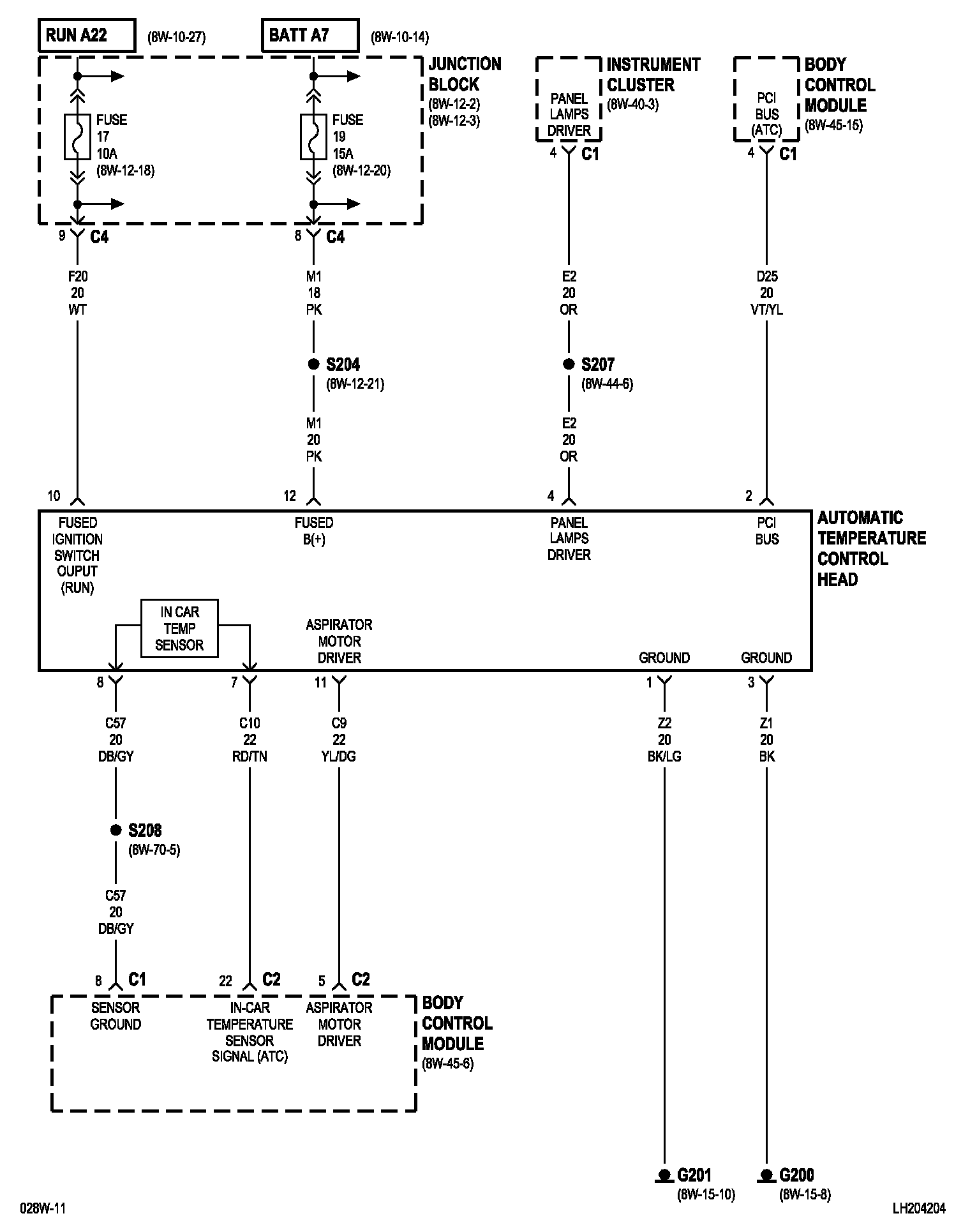

8w-42-5 (ATC):

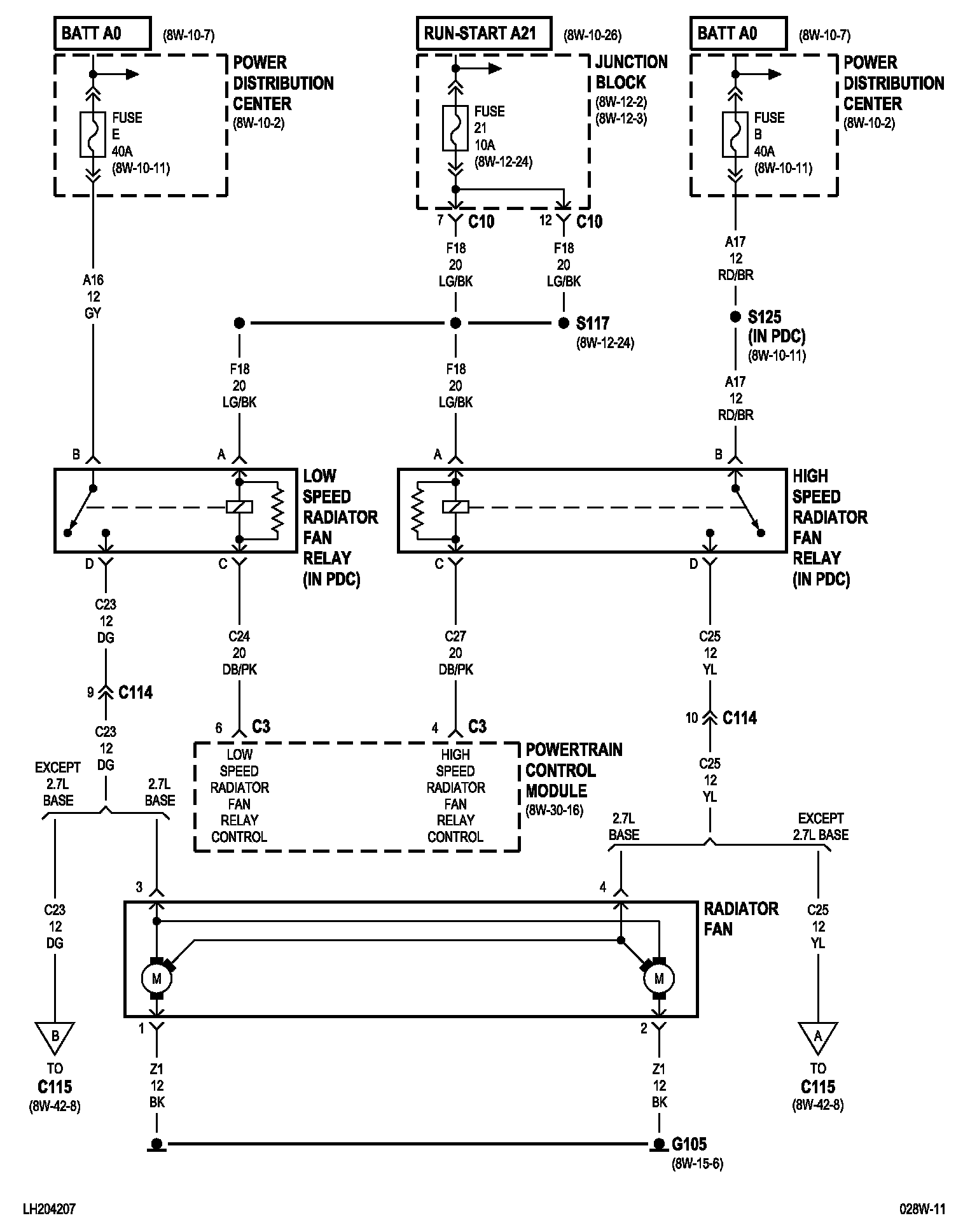

8w-42-6:

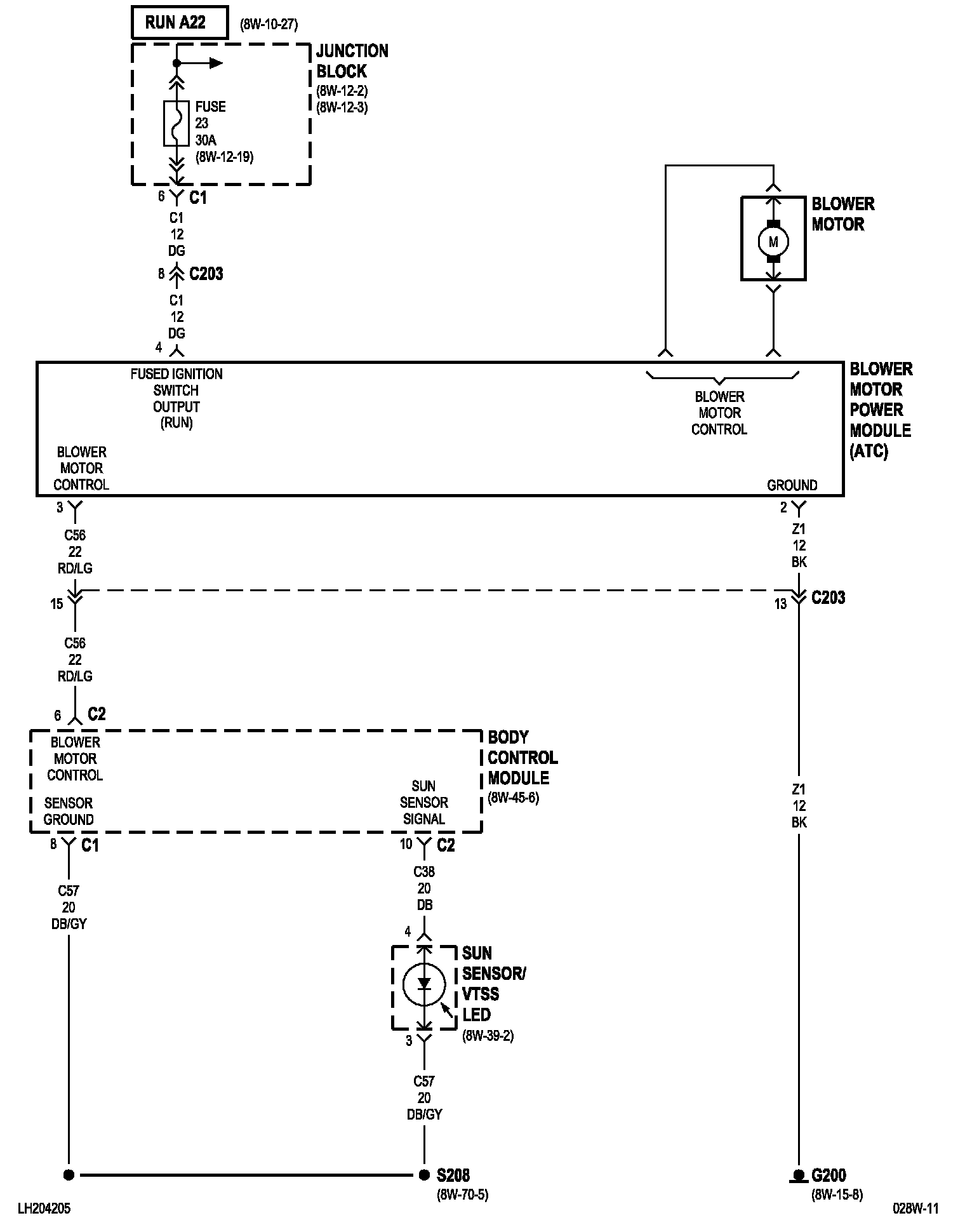

8w-42-7:

8w-42-9 (MTC):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
