Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector Location Index >> Part 6 of 10

Part 6 of 10

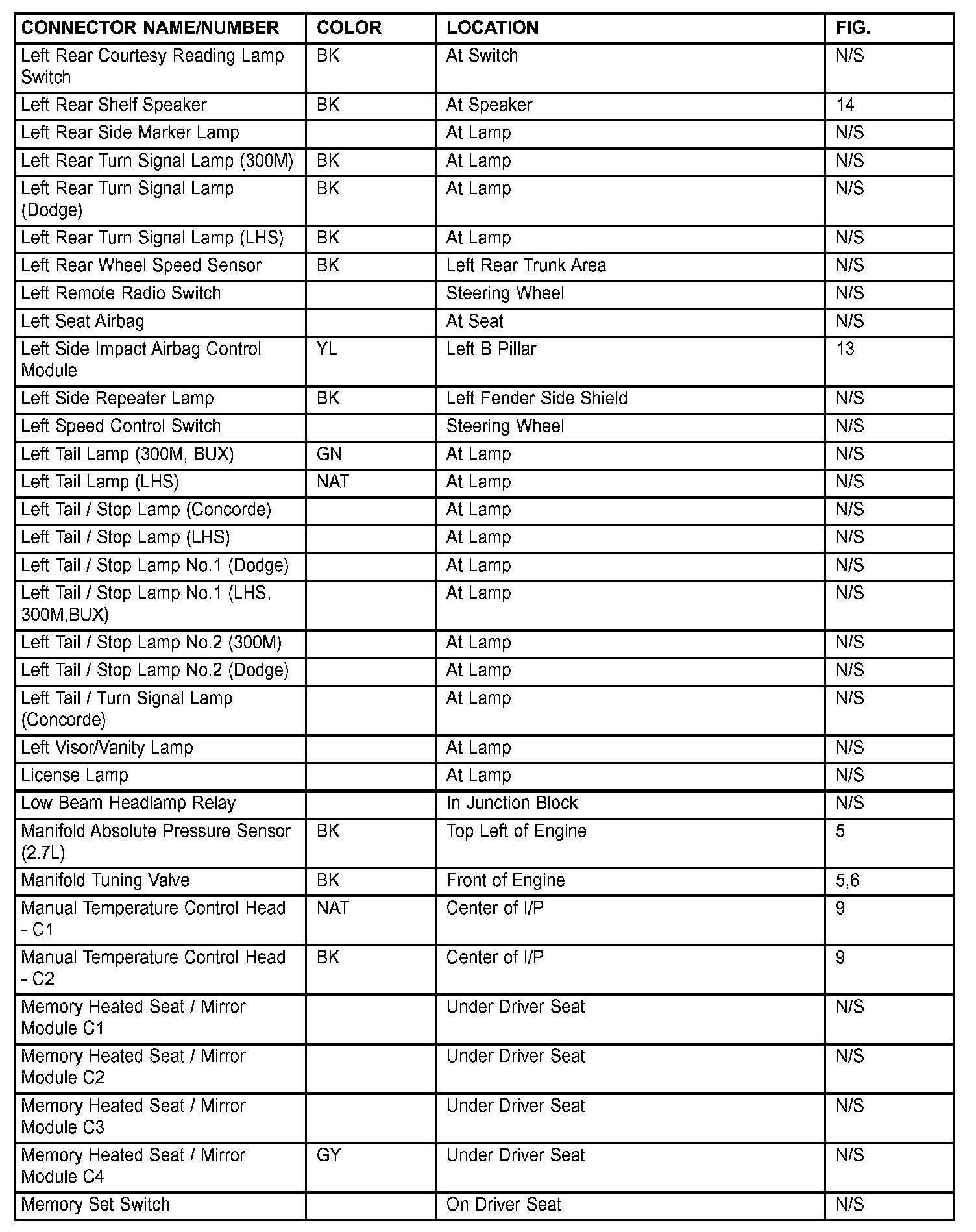

Connectors Location (Part 6 Of 10):
