Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram

System Diagram

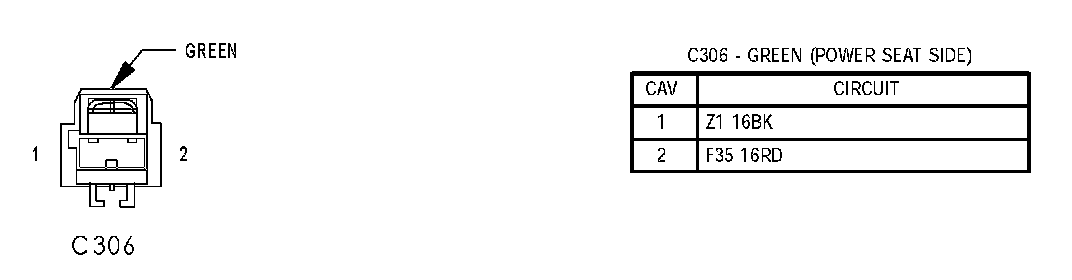

C306:

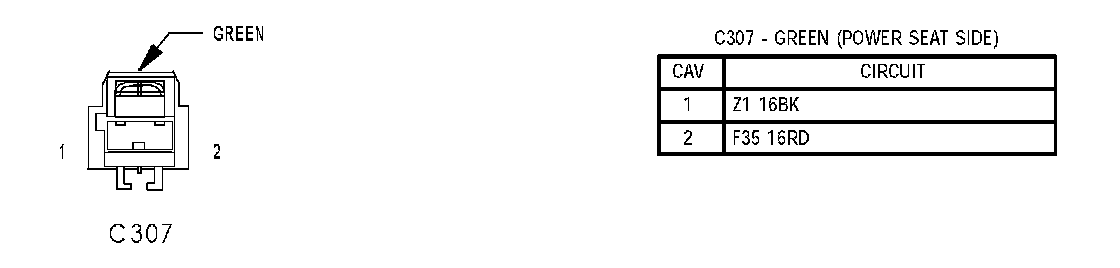

C307:

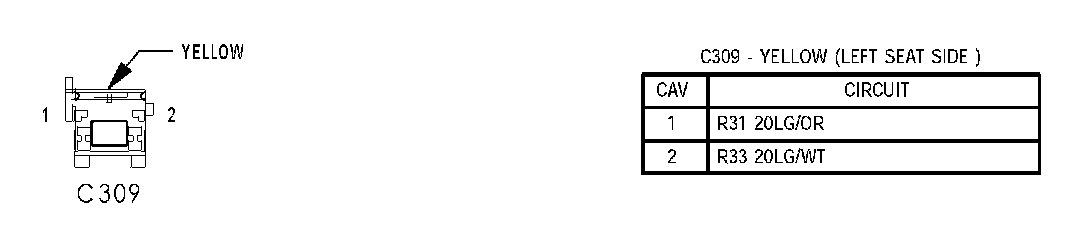

C309:

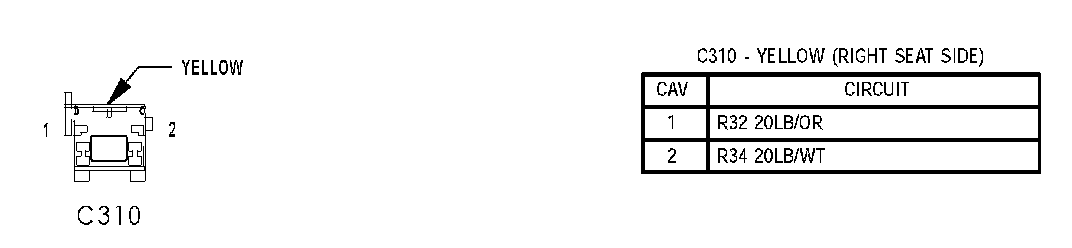

C310:

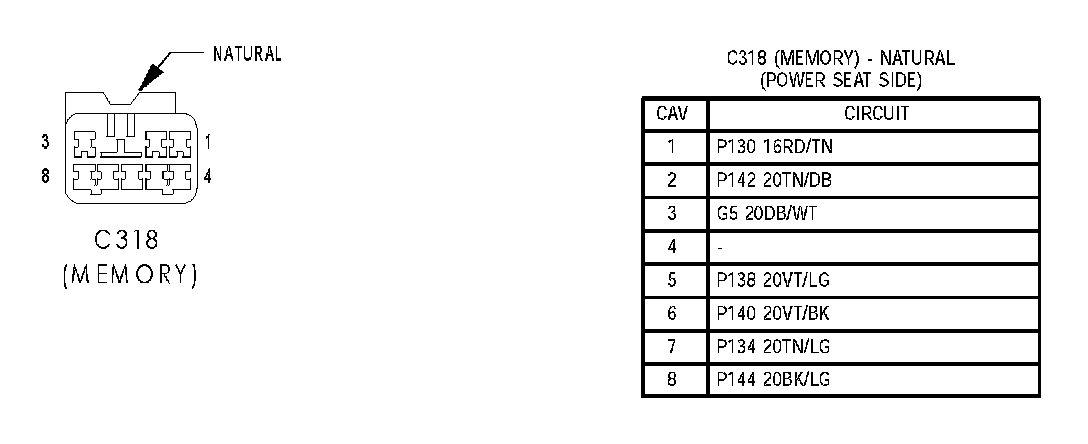

C318 (Memory):

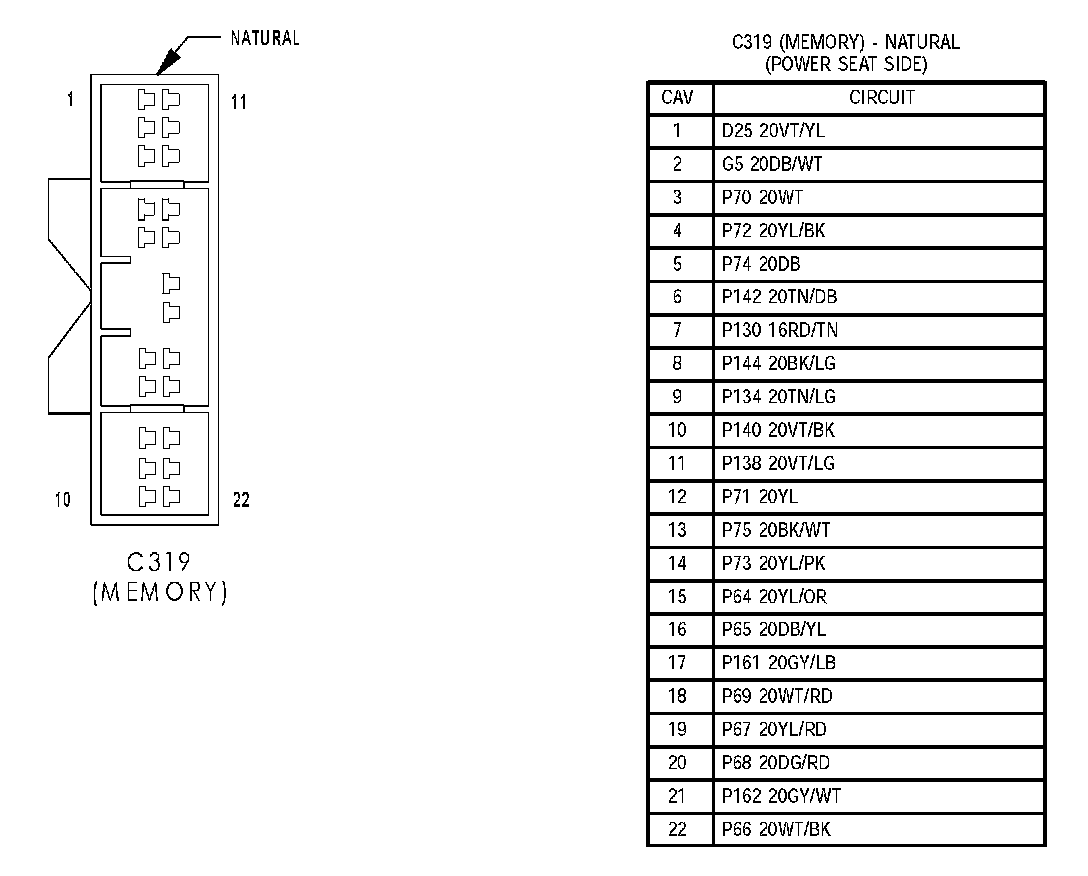

C319 (Memory):
