Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> System Diagram

System Diagram

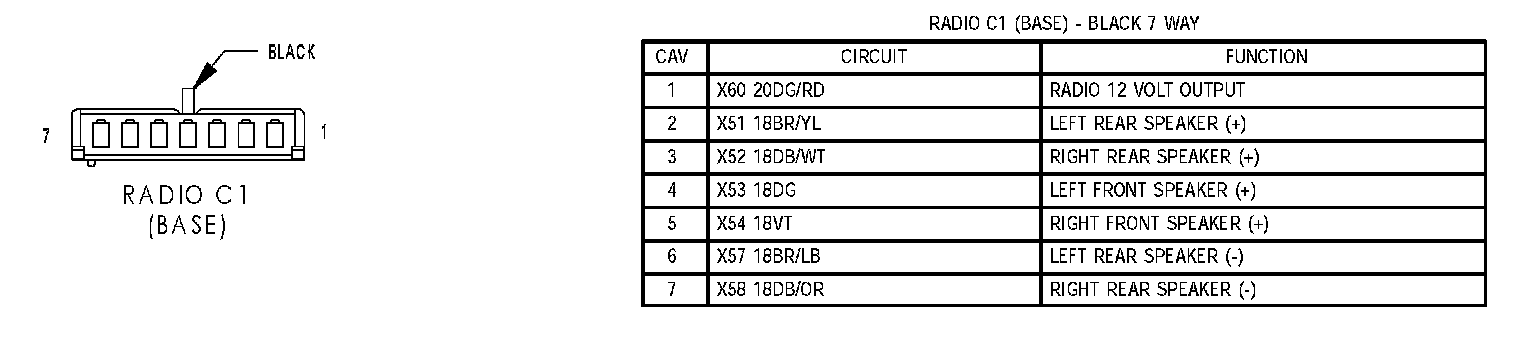

Radio C1 (Base):

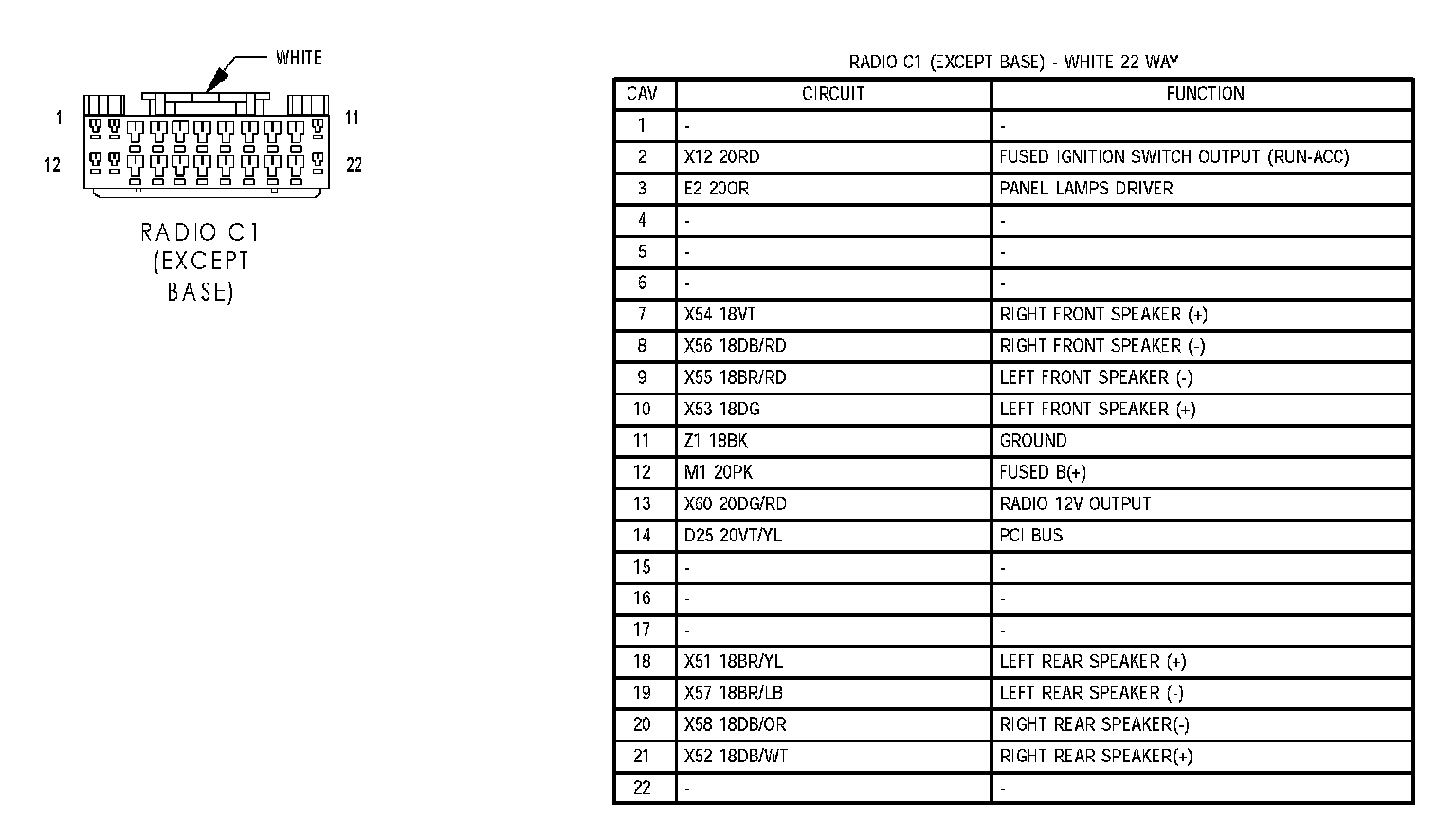

Radio C1 (Except Base):




Radio C2 (Base):

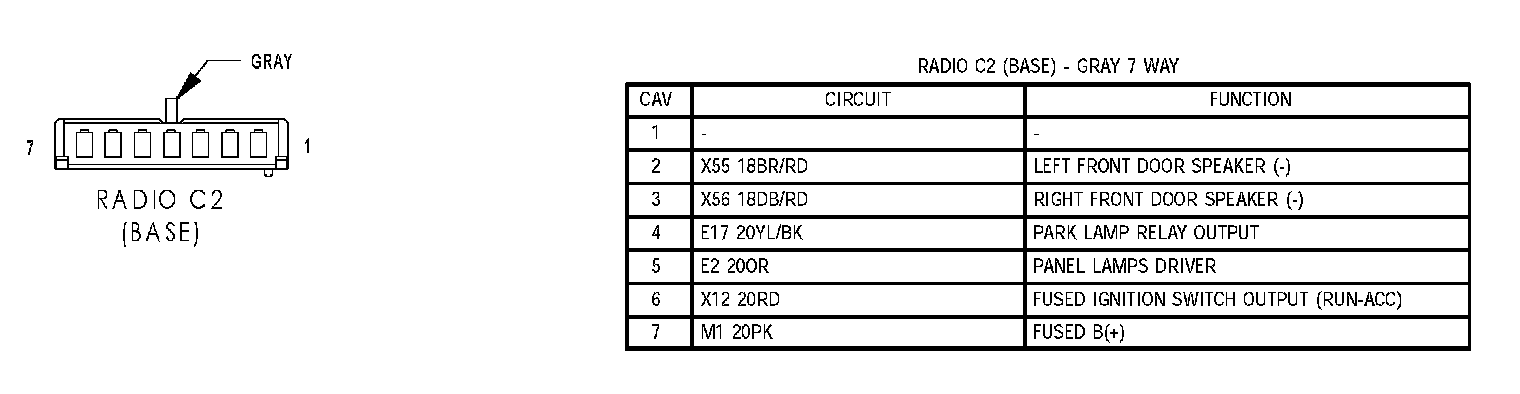

Radio C2 (Except Base):
