System Diagram

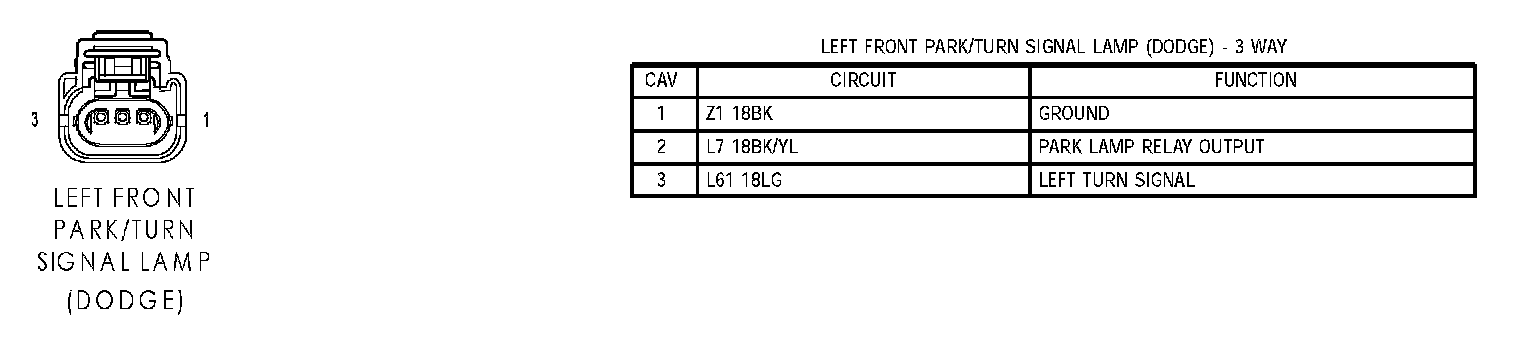

Left Front Park/Turn Signal Lamp (Dodge):

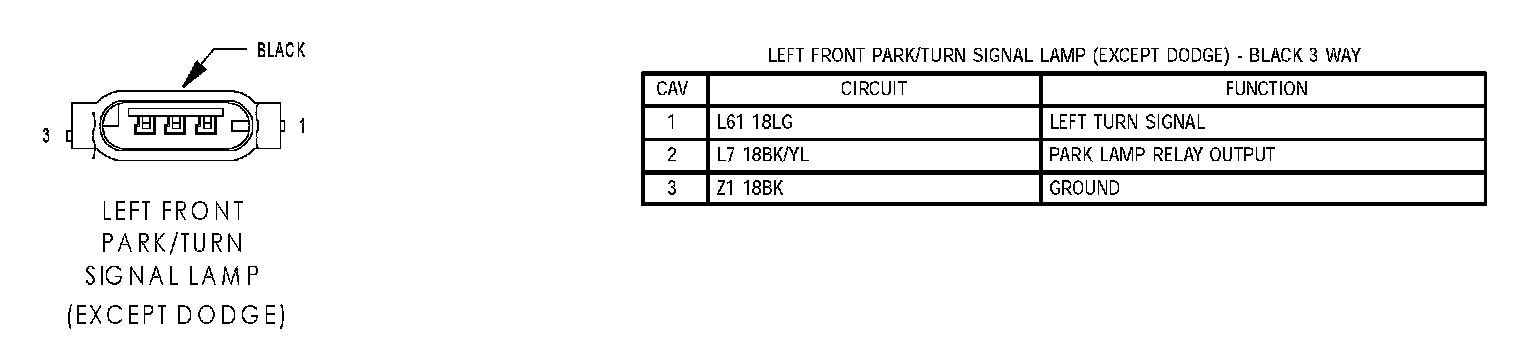

Left Front Park/Turn Signal Lamp (Except Dodge):

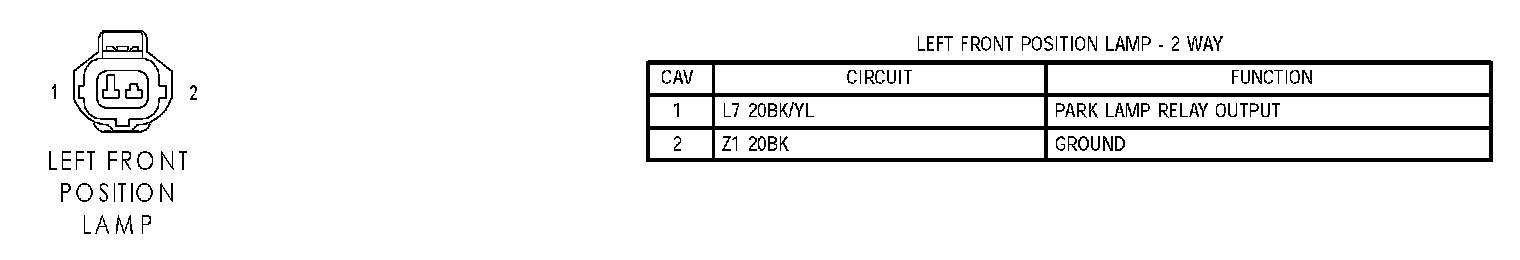

Left Front Position Lamp:

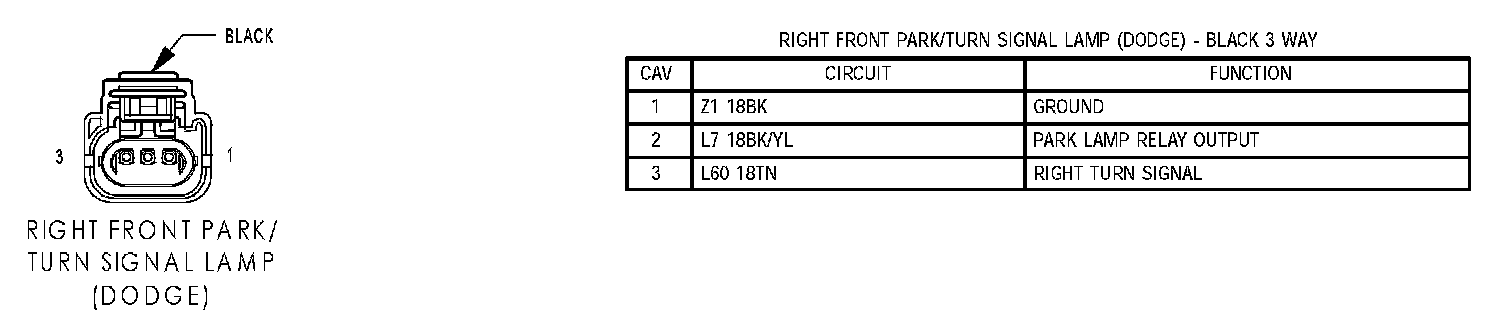

Right Front Park/Turn Signal Lamp (Dodge):

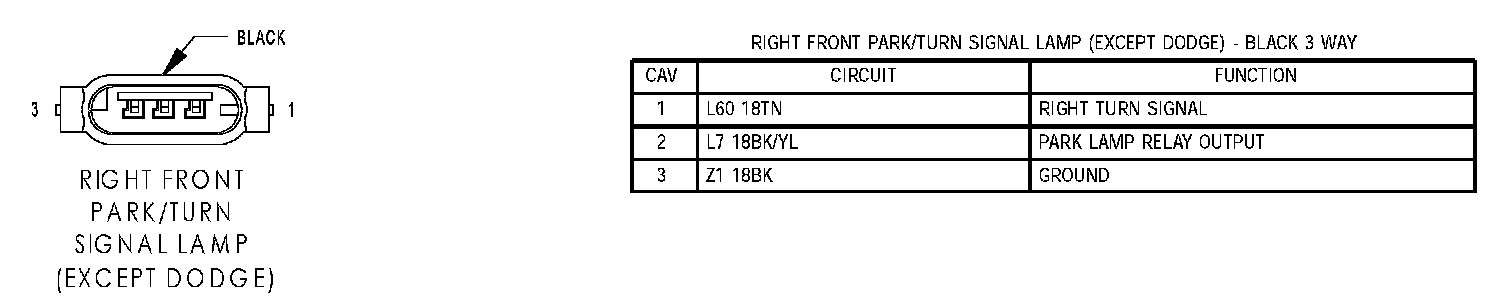

Right Front Park/Turn Signal Lamp (Except Dodge):

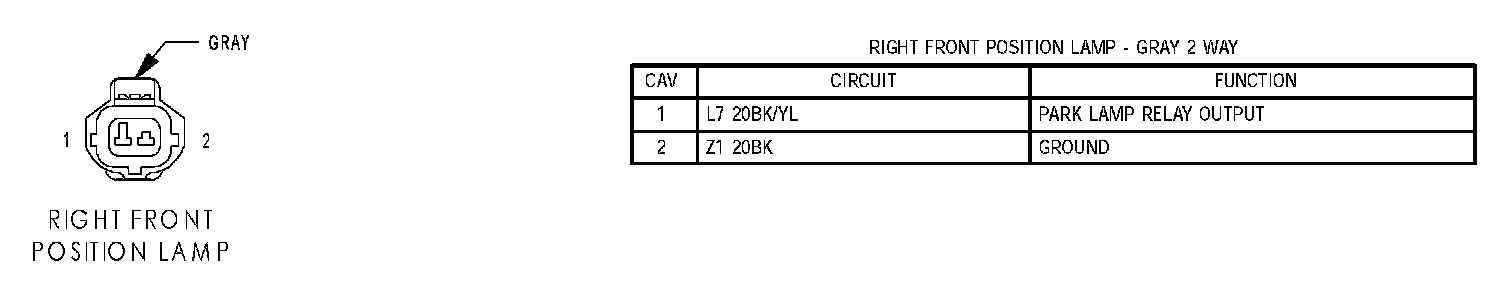

Right Front Position Lamp:
