System Diagram

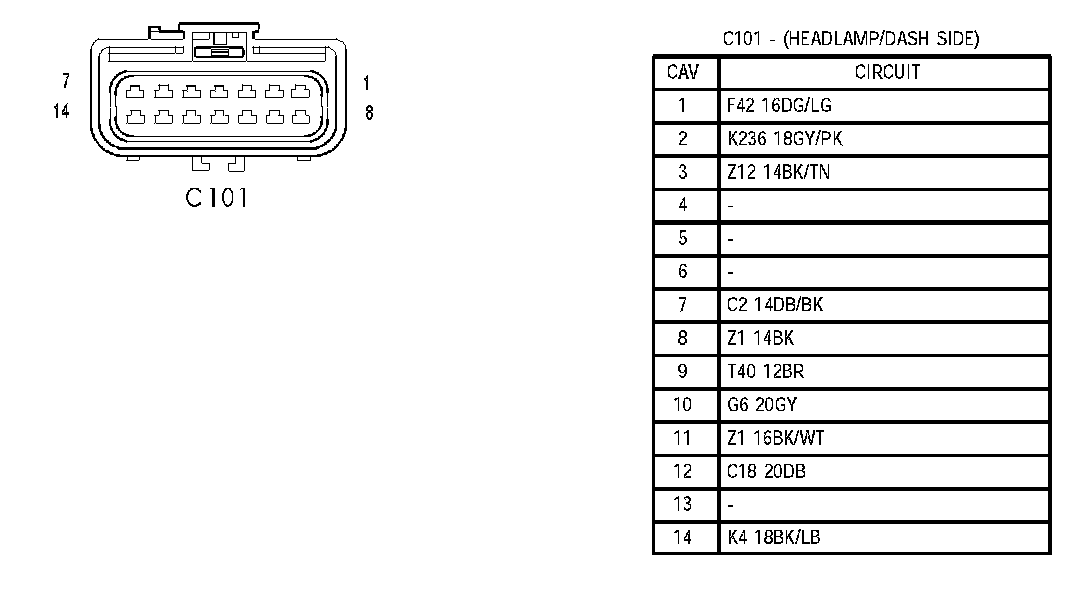

C101:

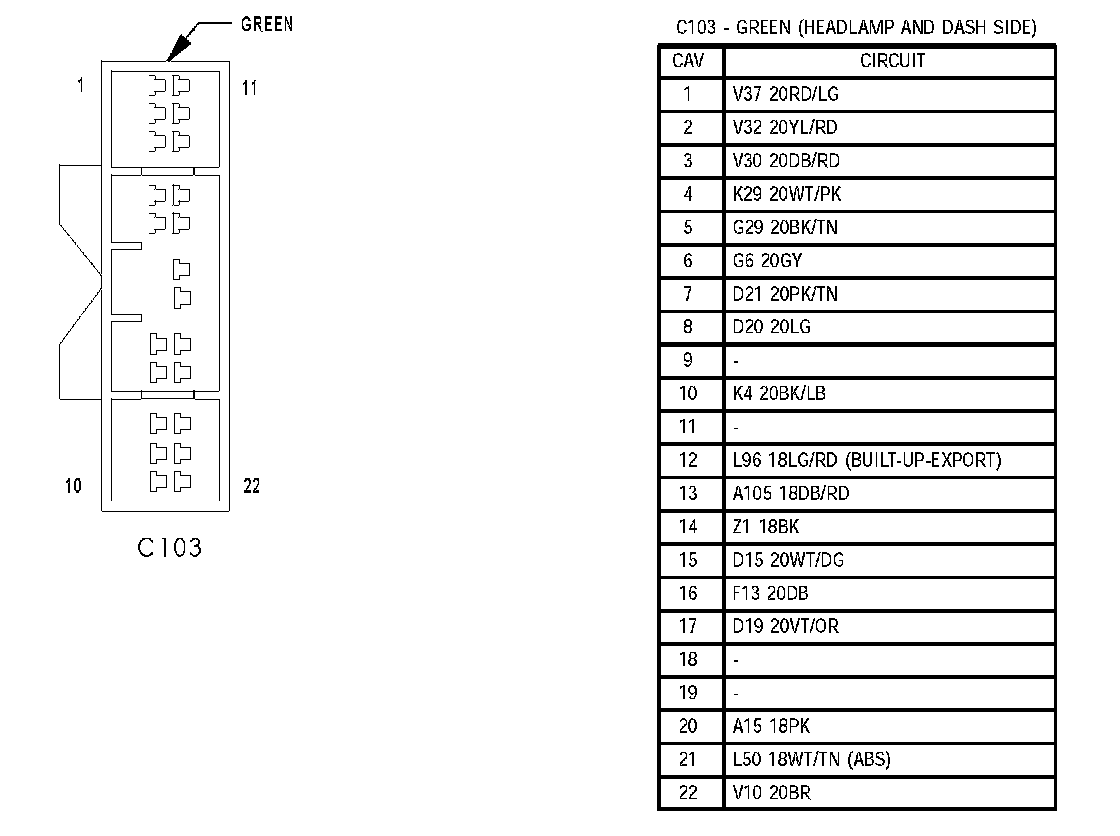

C103:

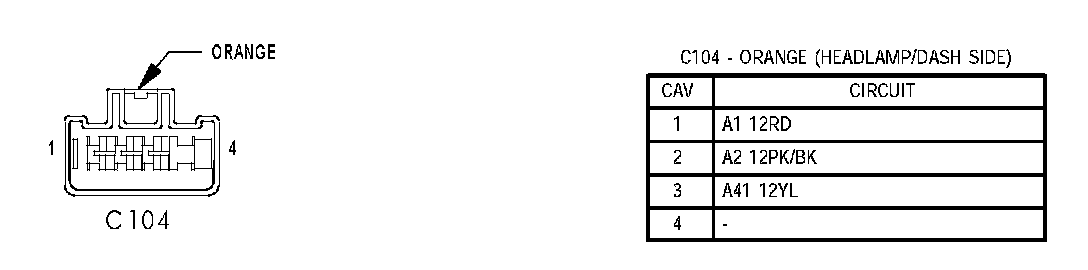

C104:

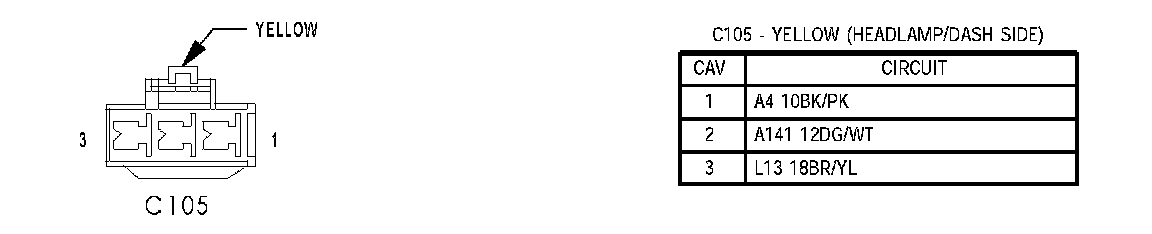

C105:

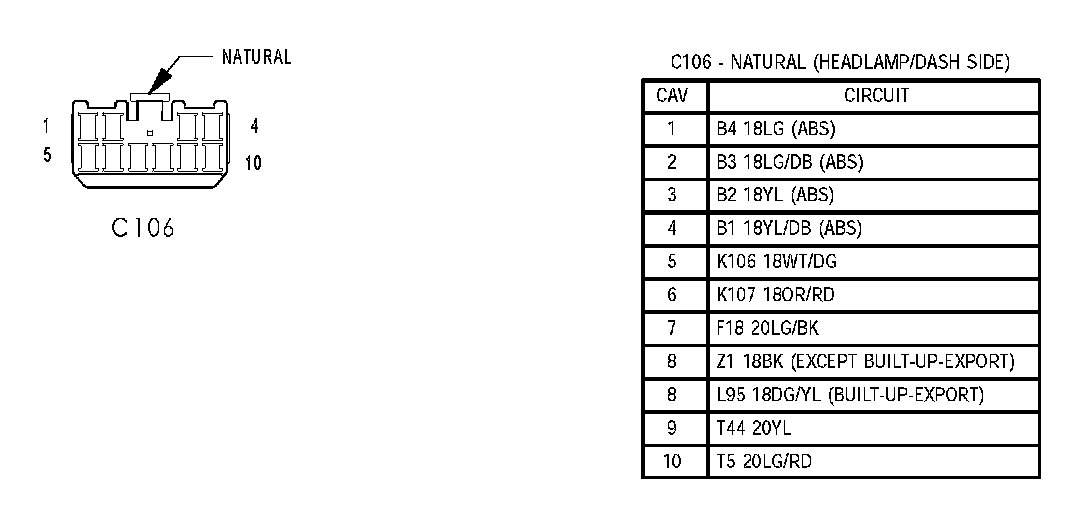

C106:

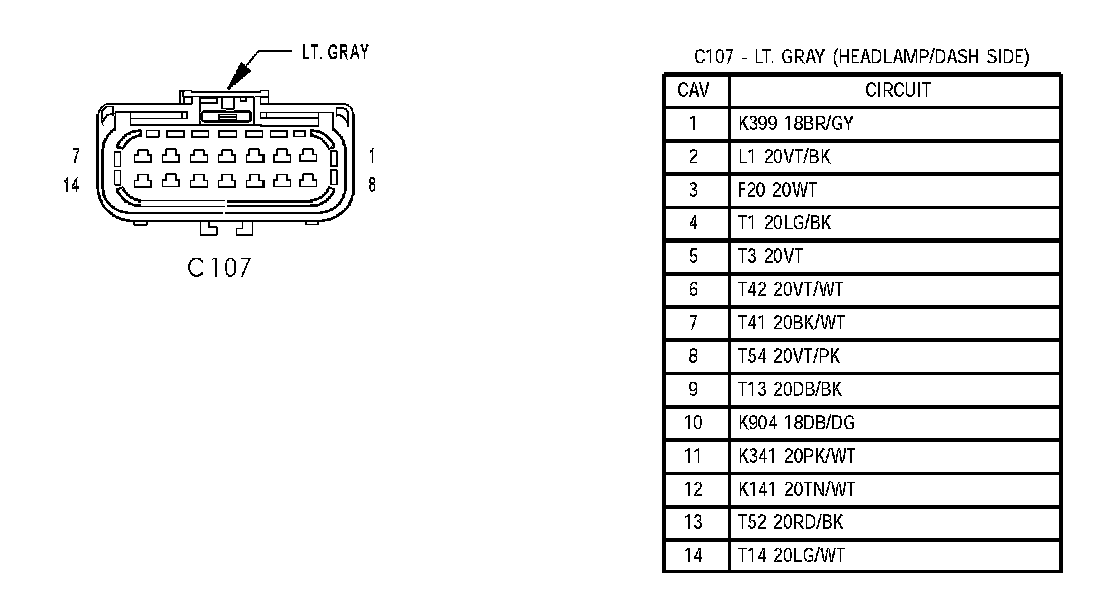

C107:

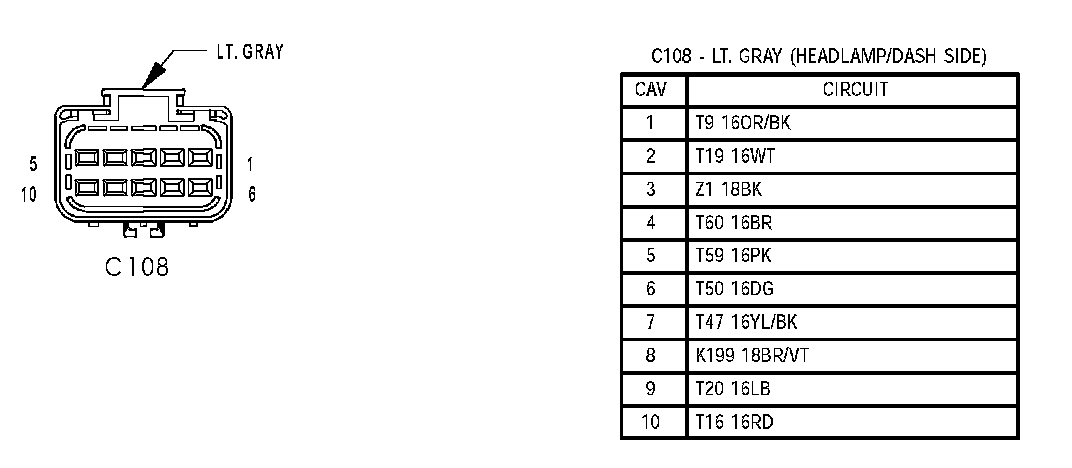

C108:

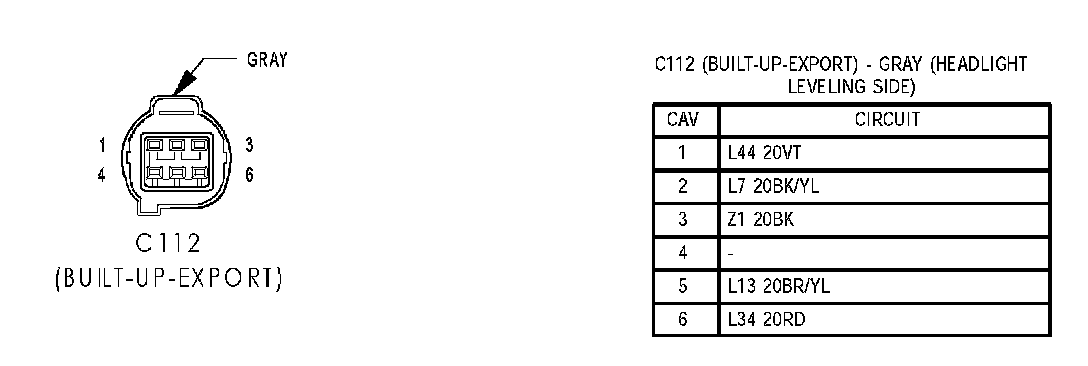

C112 (Built-Up-Export):

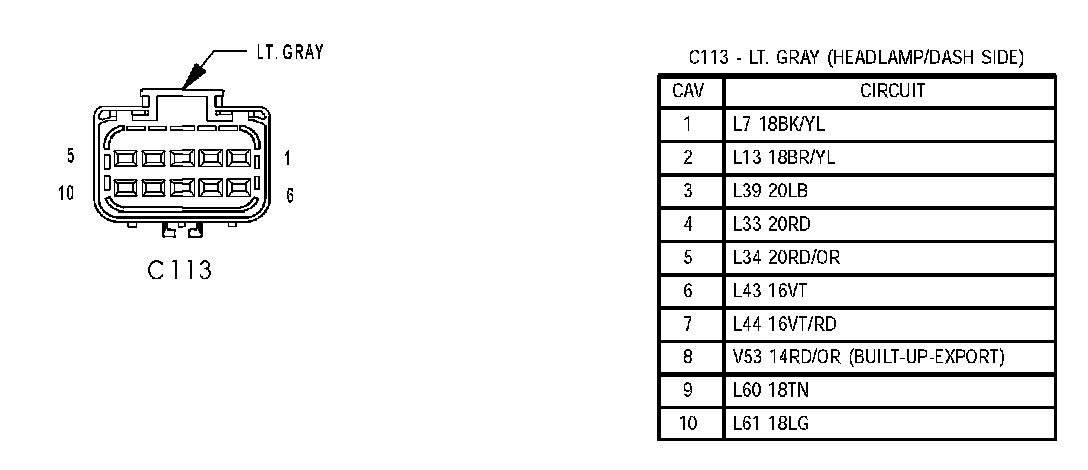

C113:

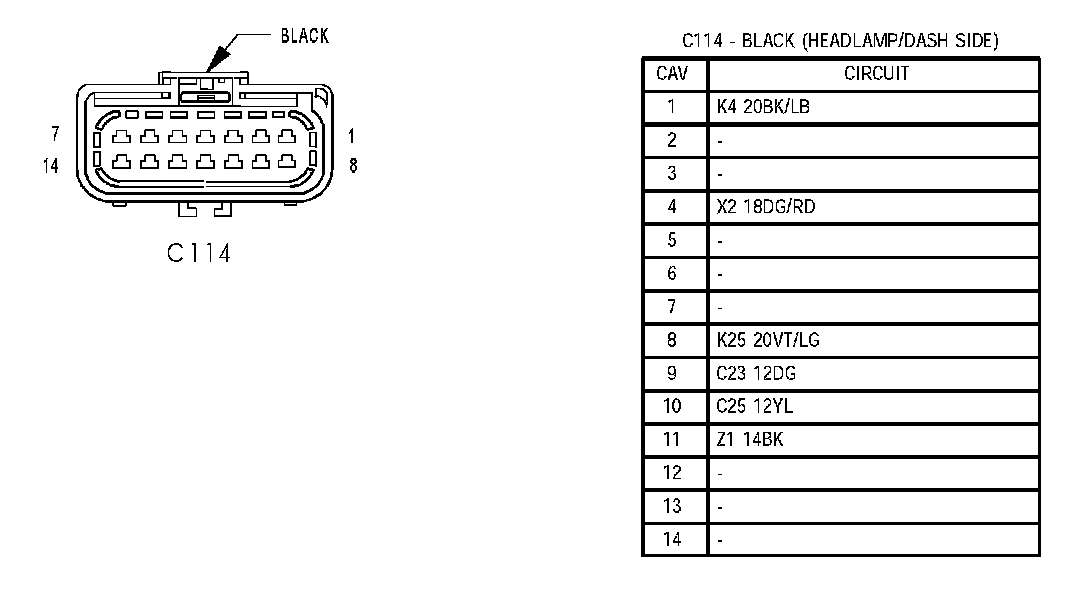

C114:

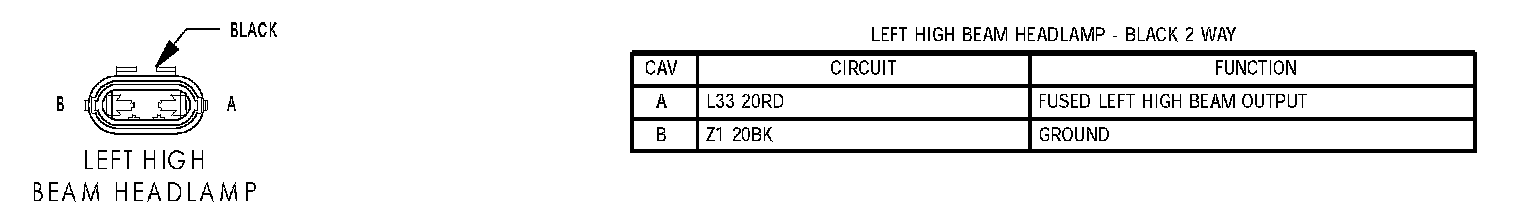

Left High Beam Headlamp:

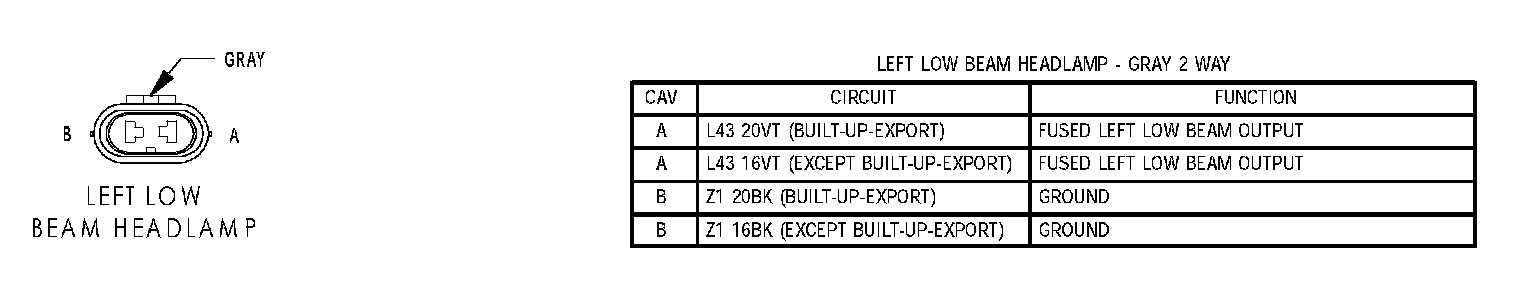

Left Low Beam Headlamp:

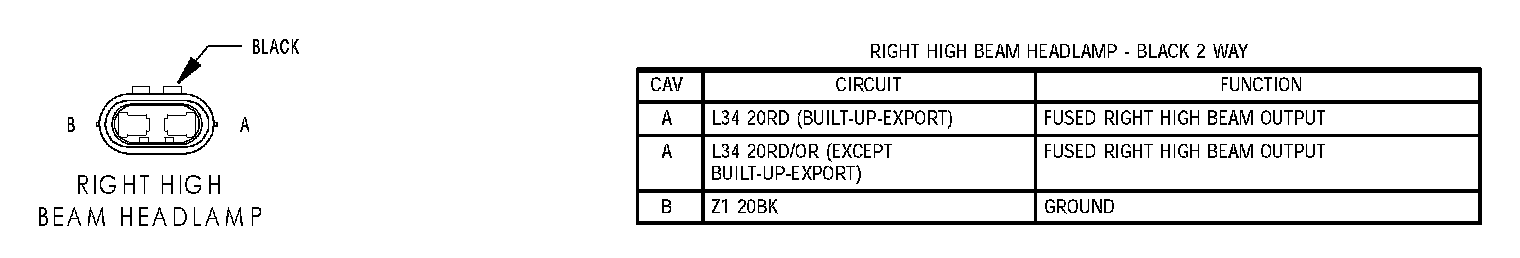

Right High Beam Headlamp:

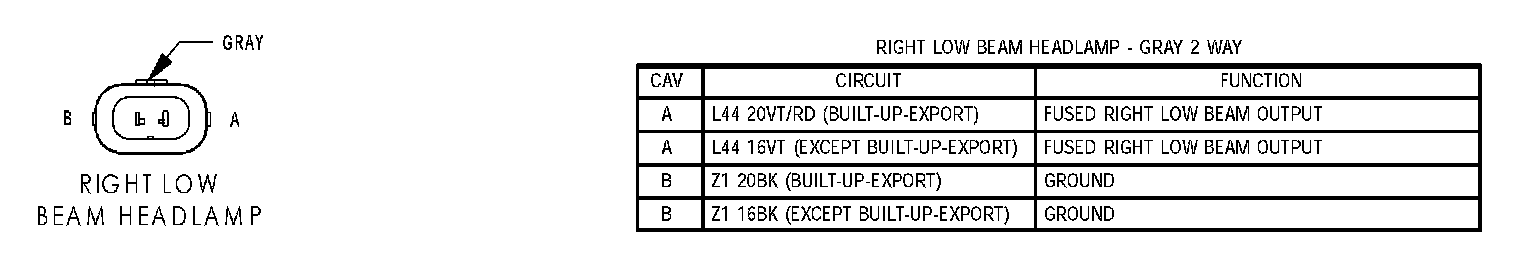

Right Low Beam Headlamp:
