Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> System Diagram

System Diagram

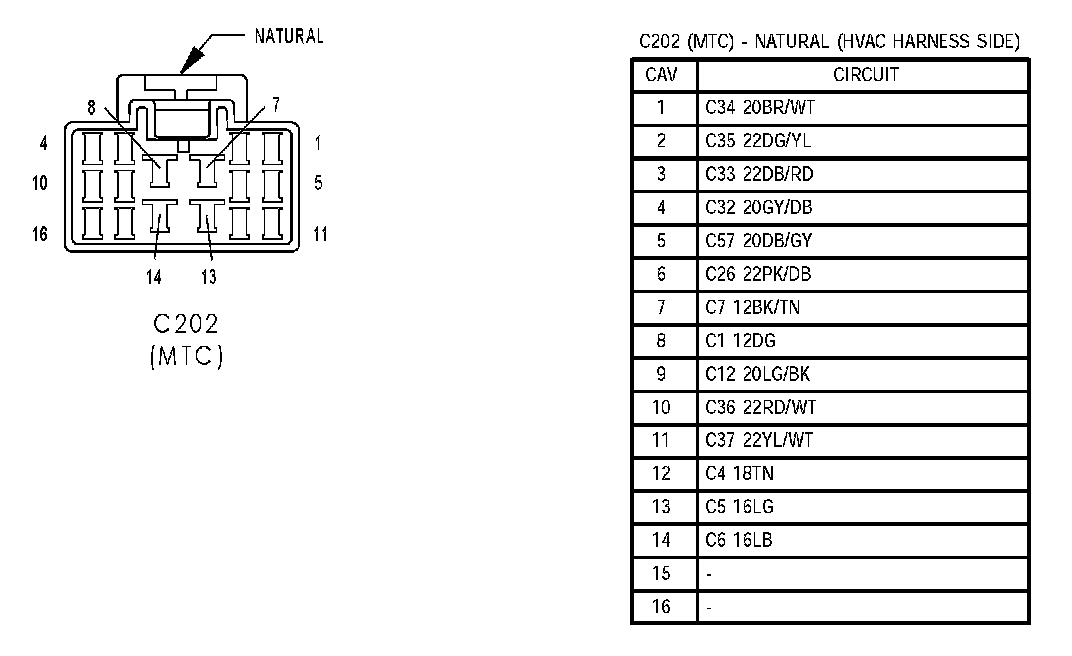

C202 (MTC):

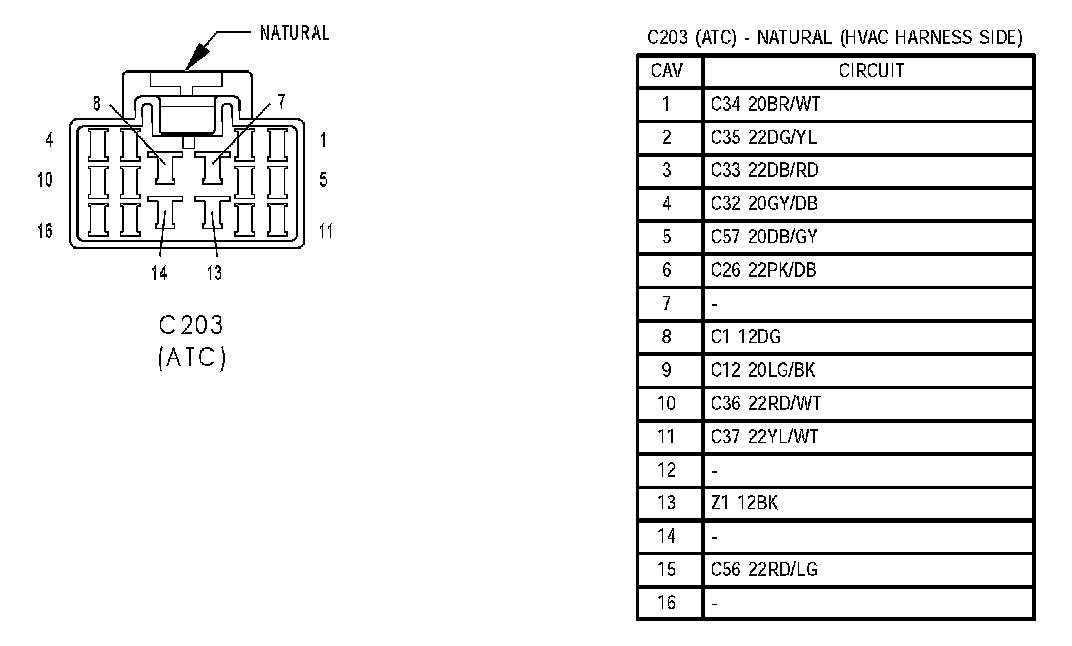

C203 (ATC):
