Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Assembly, HVAC >> Manual Temperature Control Head

Manual Temperature Control Head

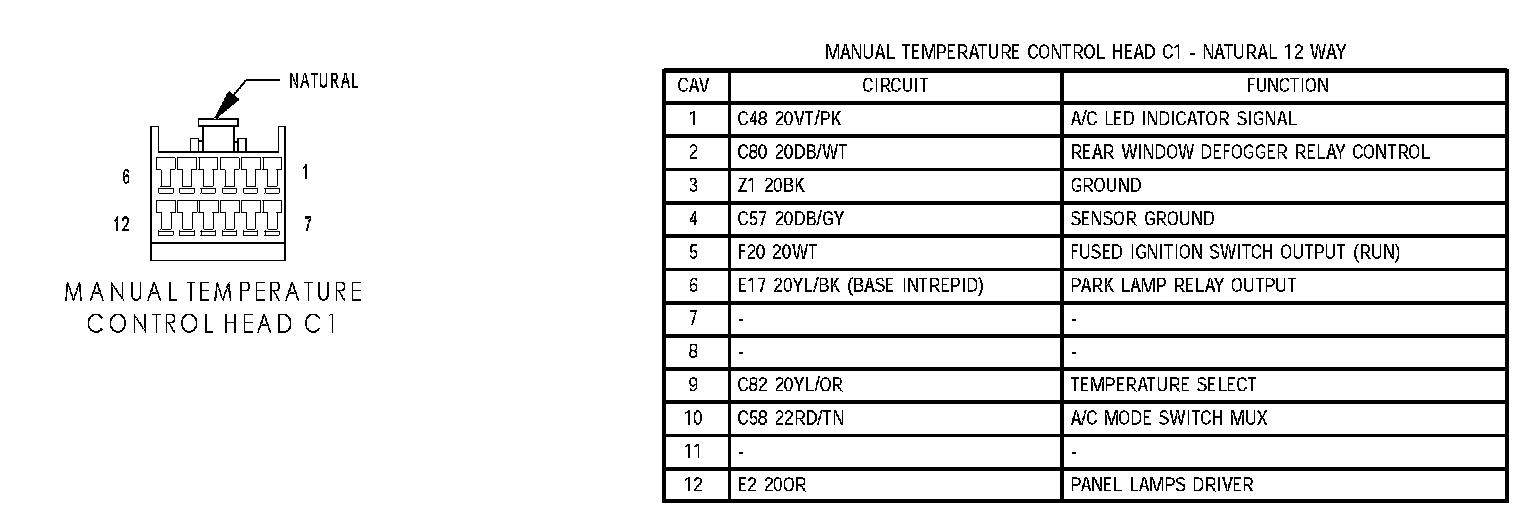

Manual Temperature Control Head C1:

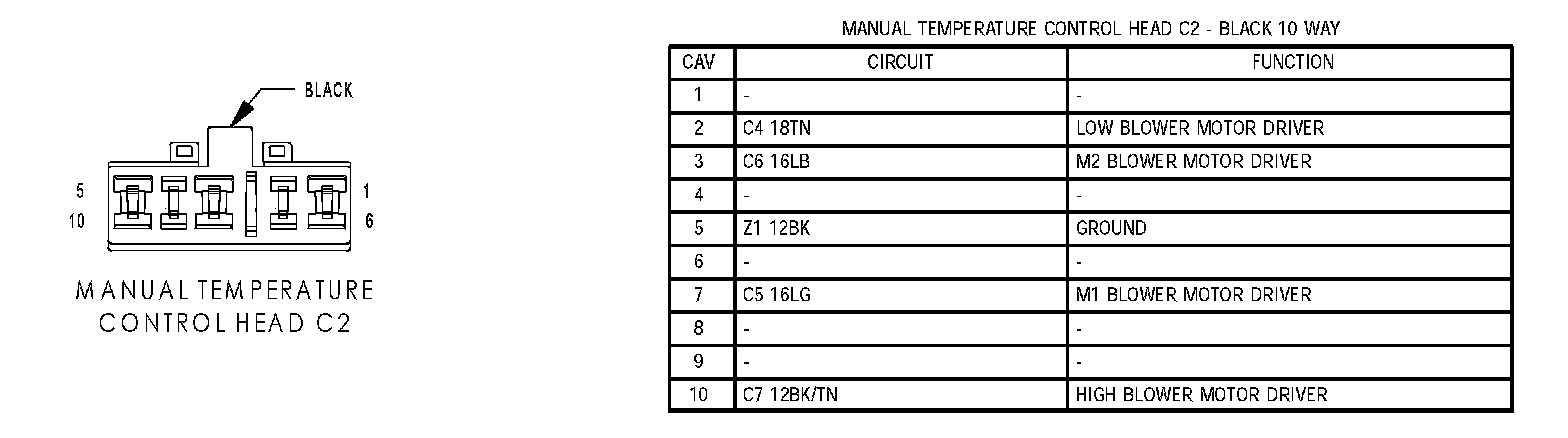

Manual Temperature Control Head C2:
