C313

C313 (Concorde/Dodge/300M):

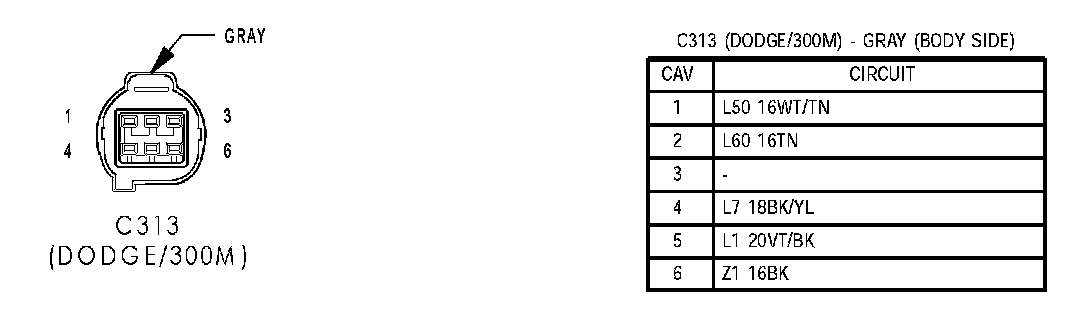

C313 (Dodge/300M):

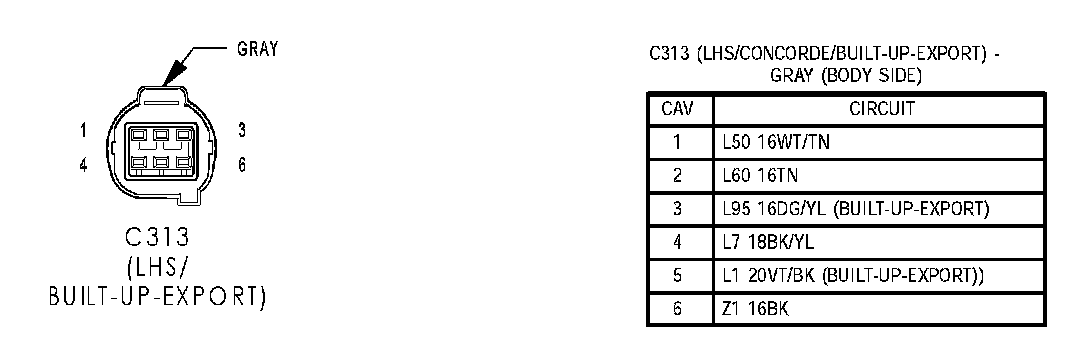

C313 (LHS/Built-Up-Export):




C313 (LHS/Built-Up-Export):
