System Diagram

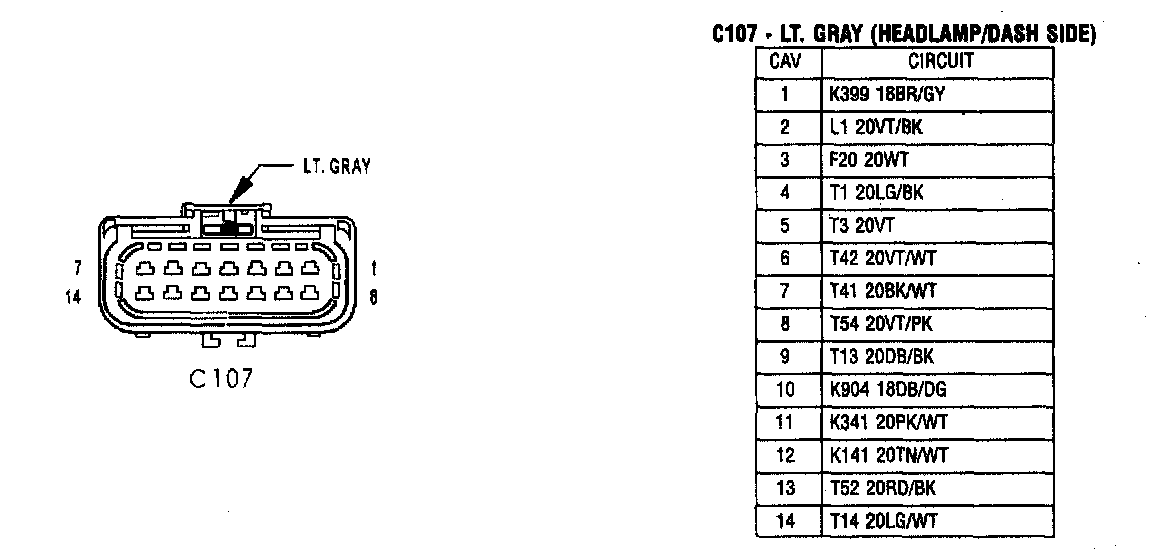

C107 - Lt. Gray (Headlamp/Dash Side)

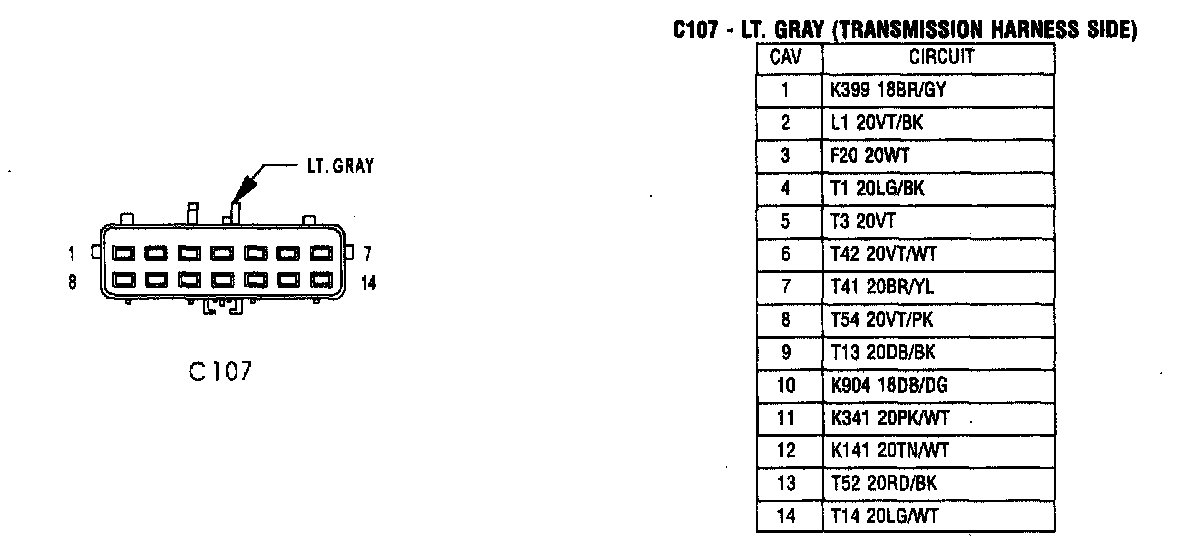

C107 - Lt. Gray (Transmission Harness Side)

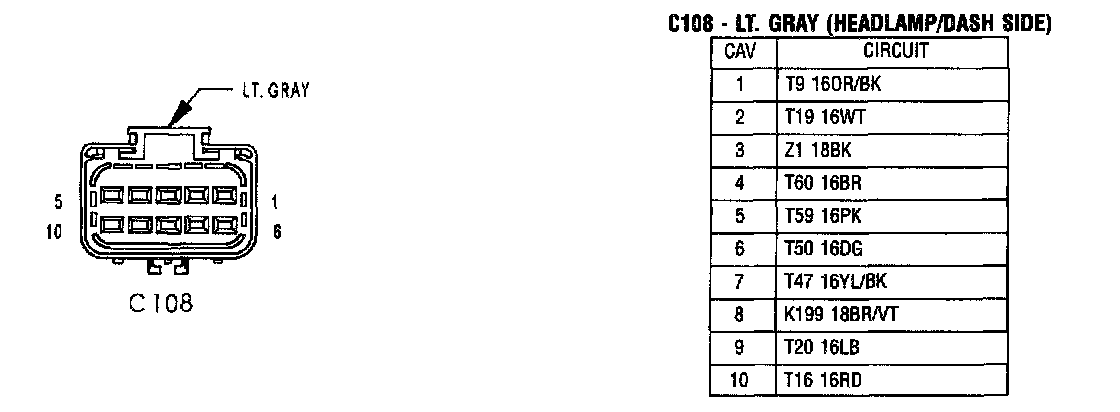

C108 - Lt. Gray (Headlamp/Dash Side)

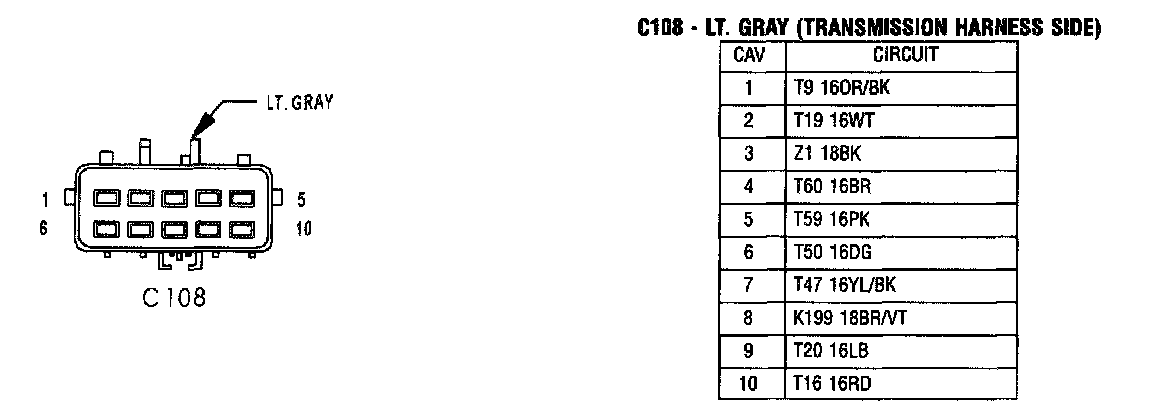

C108 - Lt. Gray (Transmission Harness Side)
