Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

Other Brake Conditions

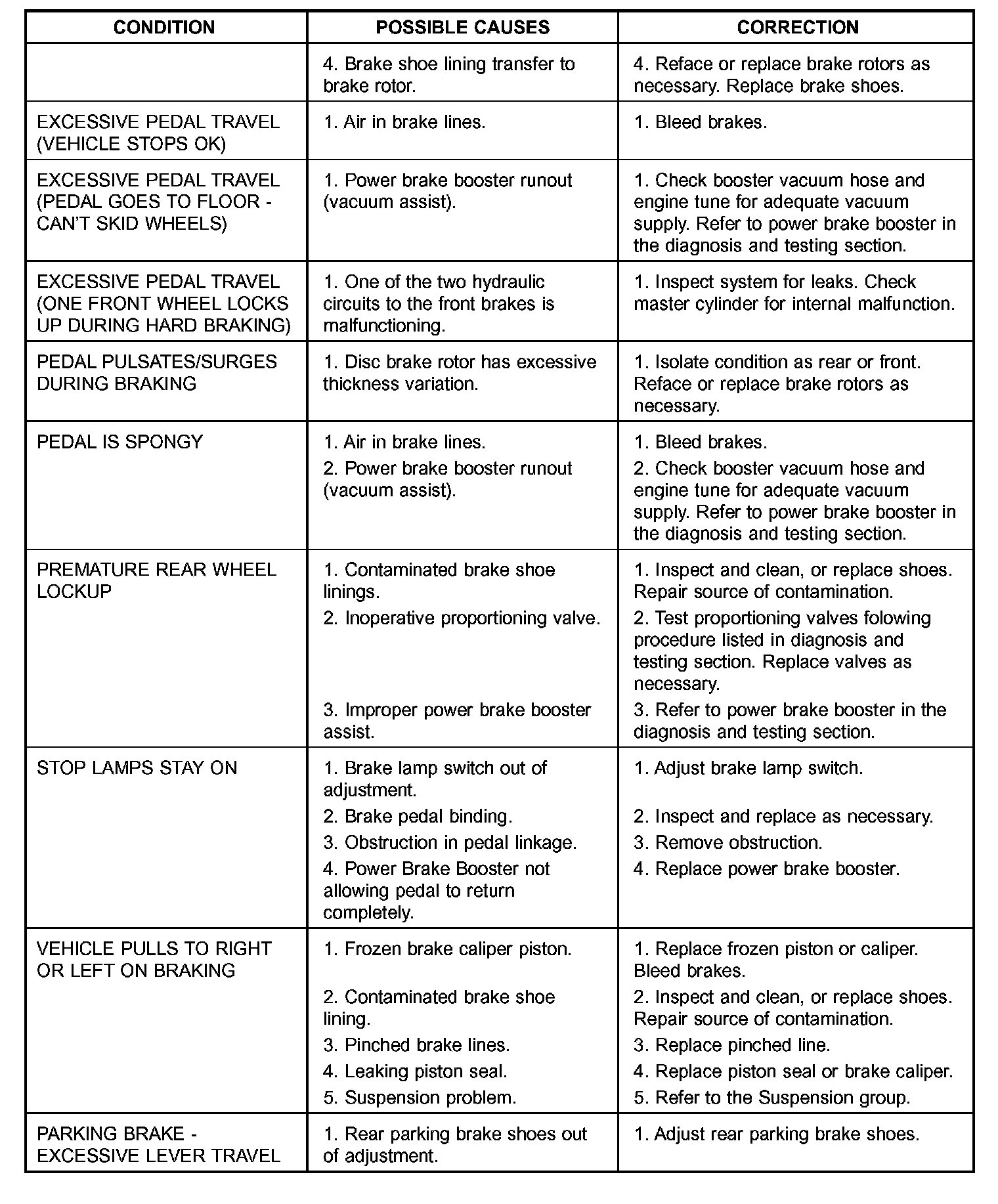

Part 1 of 2

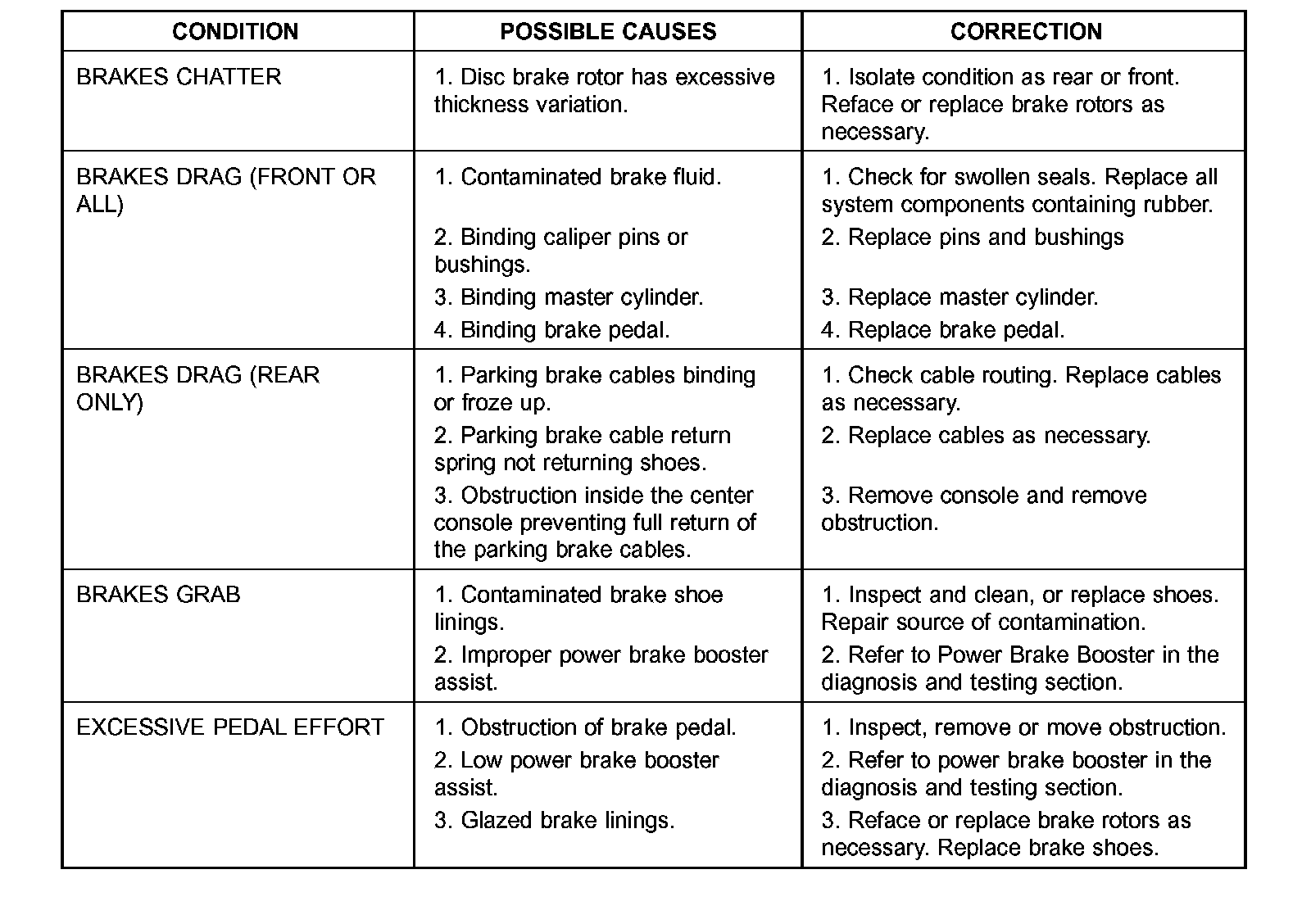

Part 2 of 2
