Seat Temperature Element: Diagrams

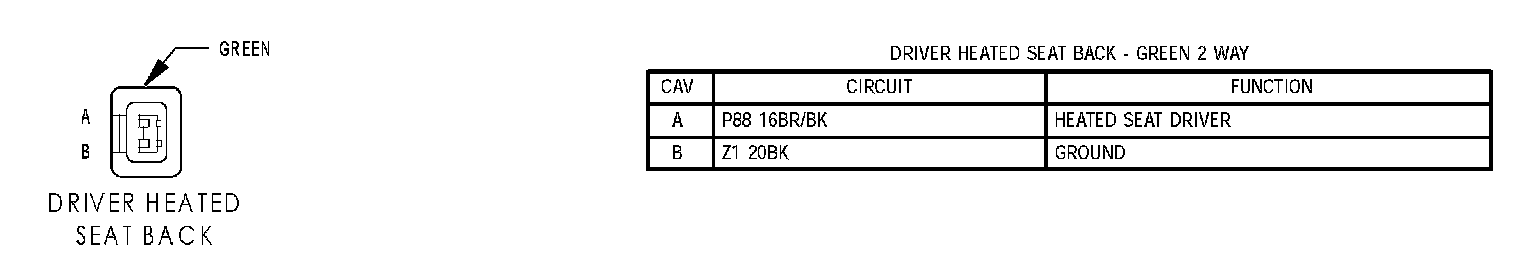

Driver Heated Seat Back:

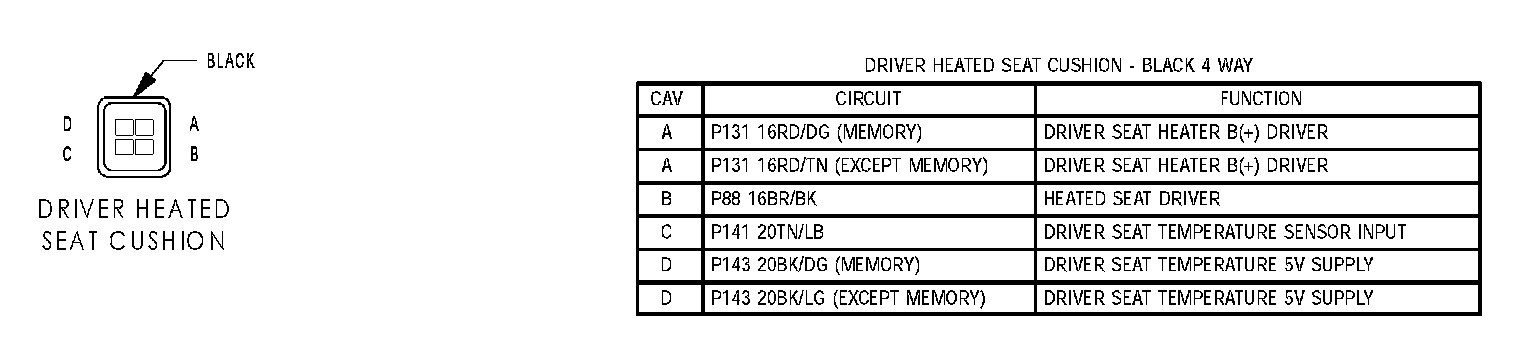

Driver Heated Seat Cushion:

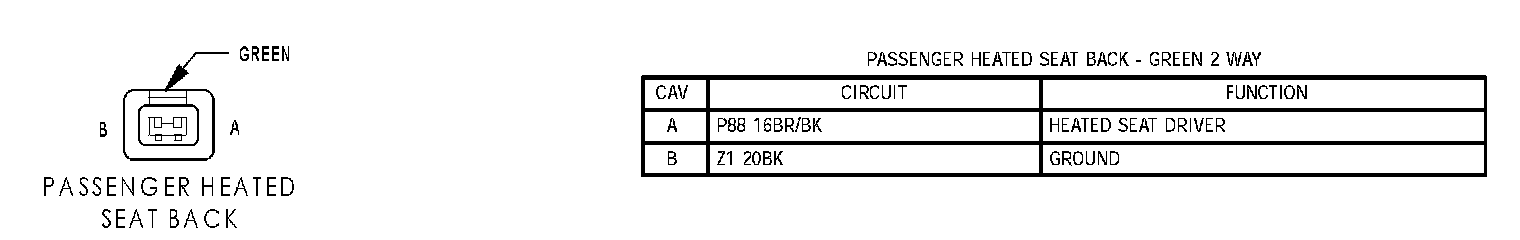

Passenger Heated Seat Back:

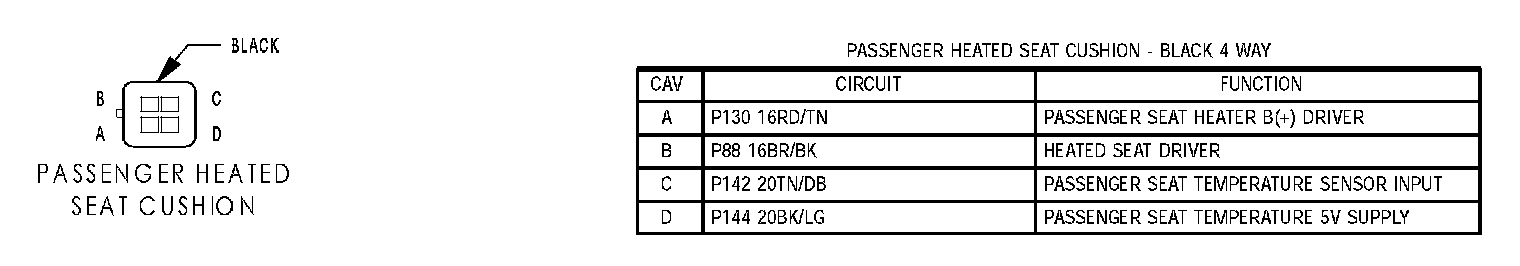

Passenger Heated Seat Cushion:
