Power Seat Motor: Diagrams

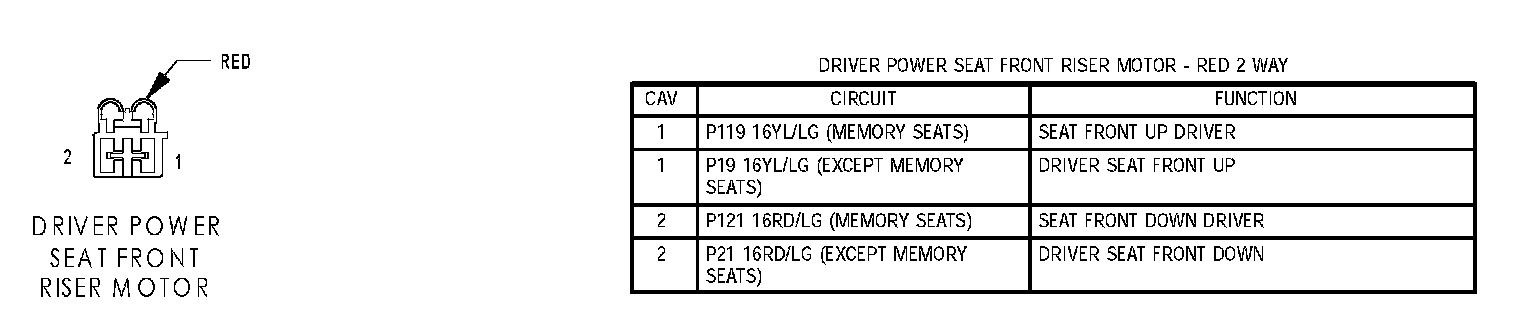

Driver Power Seat Front Riser Motor:

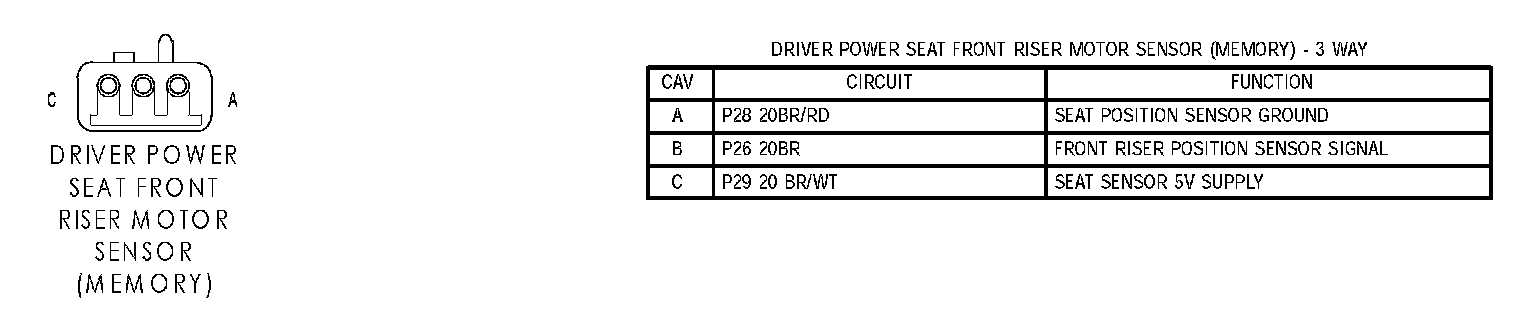

Driver Power Seat Front Riser Motor Sensor (Memory):

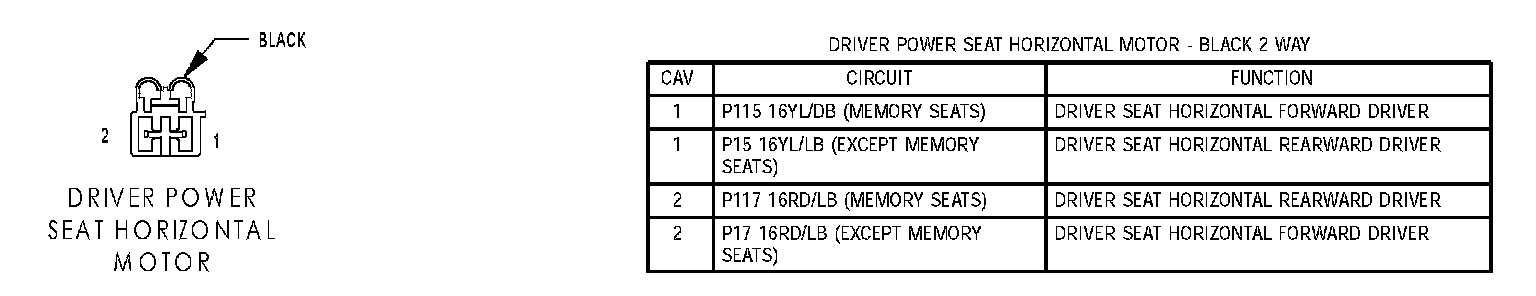

Driver Power Seat Horizontal Motor:

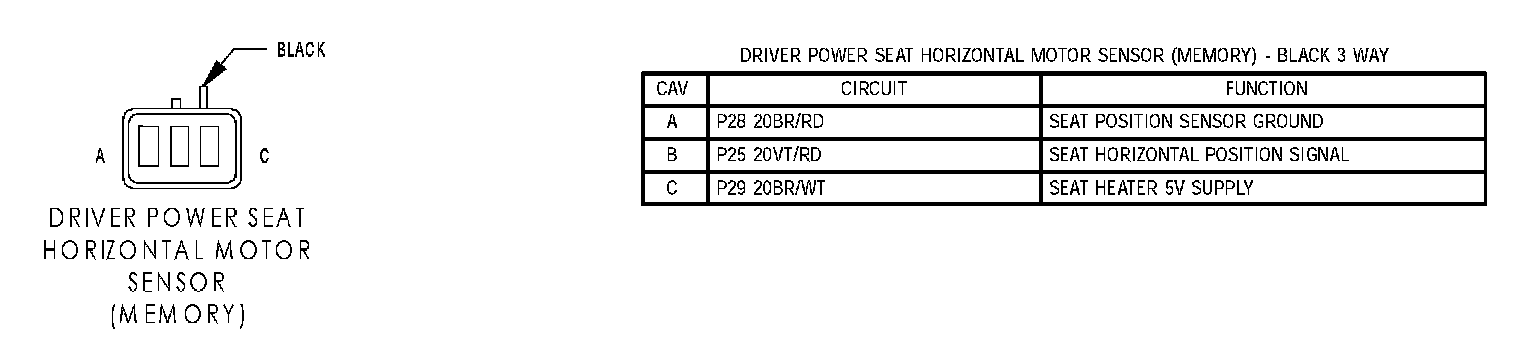

Driver Power Seat Horizontal Motor Sensor (Memory):

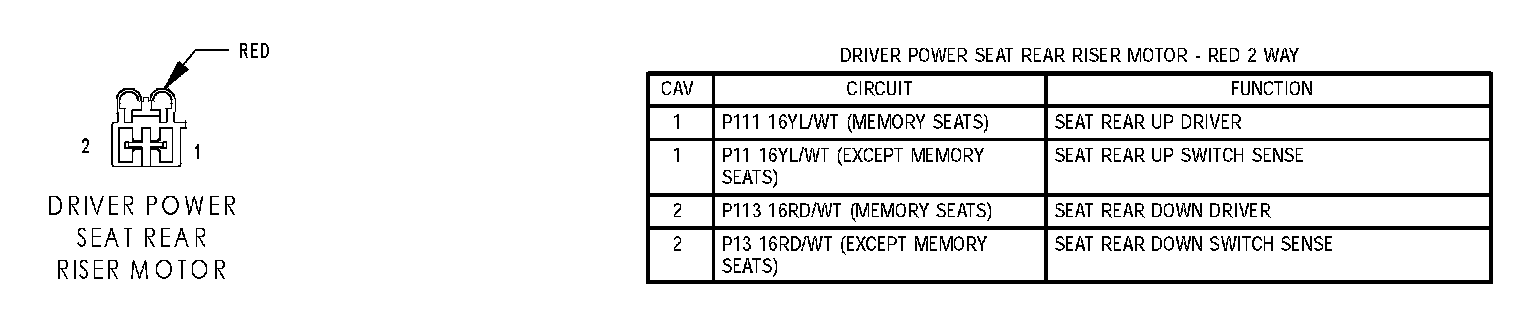

Driver Power Seat Rear Riser Motor:

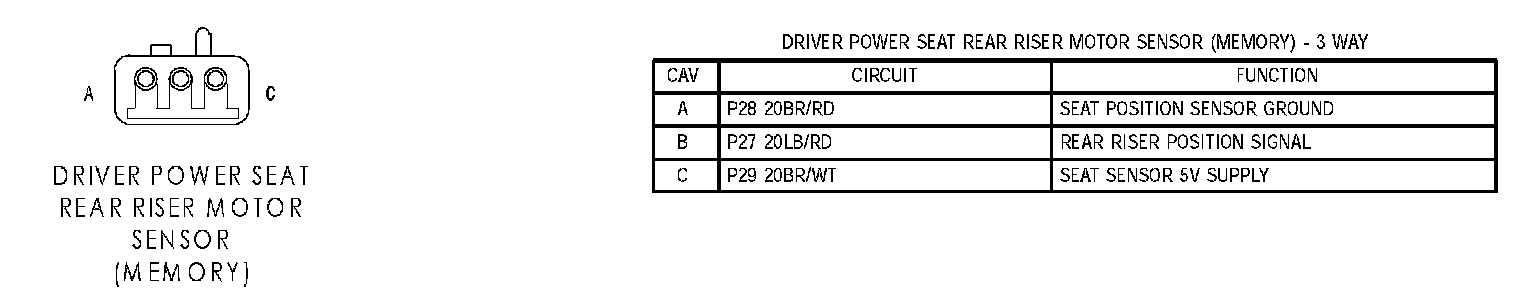

Driver Power Seat Rear Riser Motor Sensor (Memory):

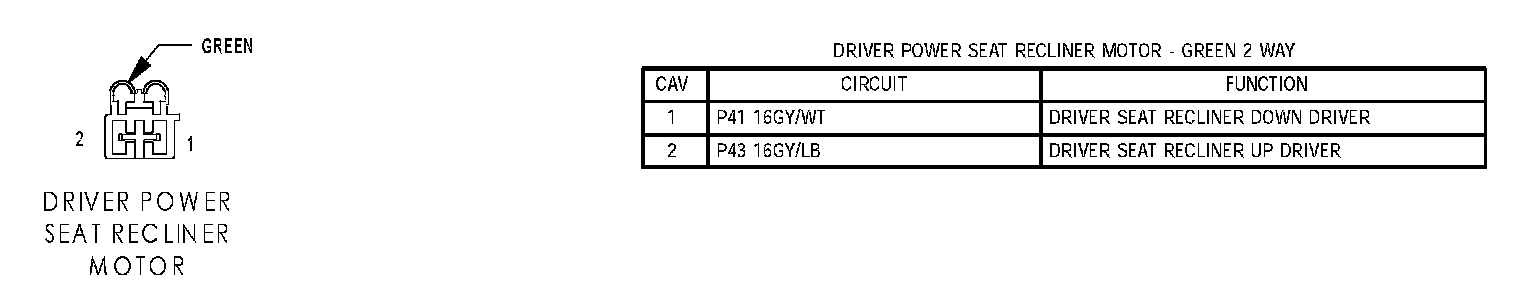

Driver Power Seat Recliner Motor:

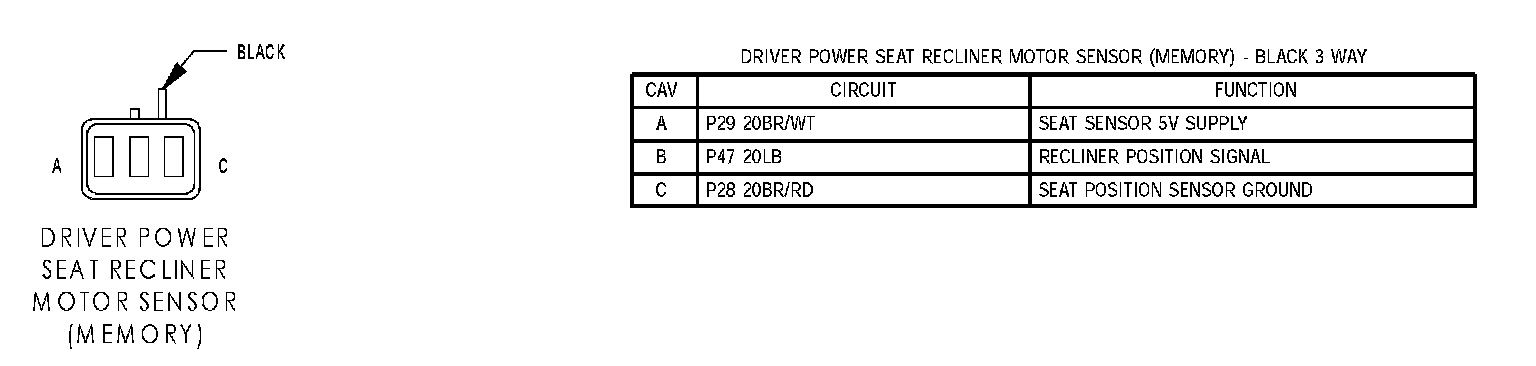

Driver Power Seat Recliner Motor Sensor (Memory):

Passenger Power Seat Front Riser Motor:

Passenger Power Seat Horizontal Motor:

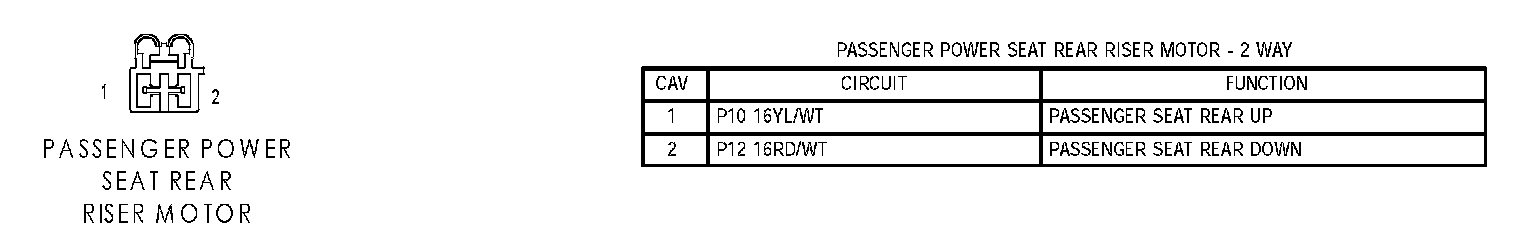

Passenger Power Seat Rear Recliner Motor:

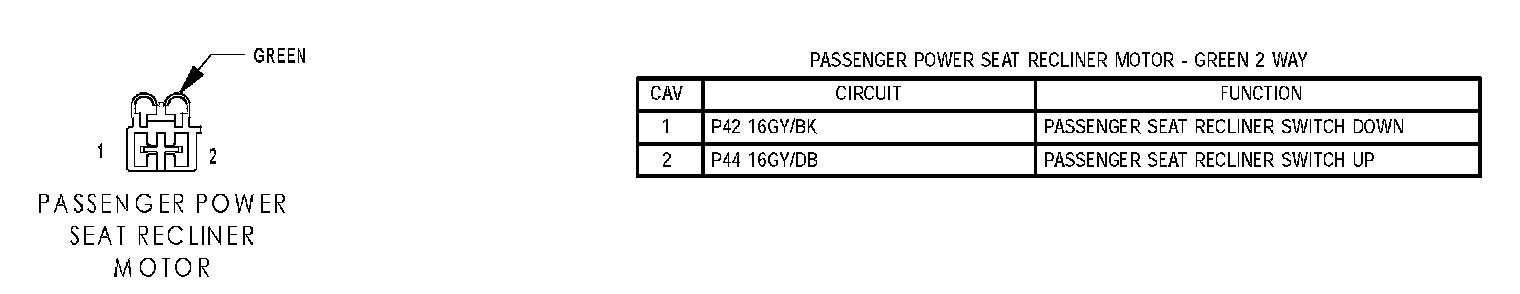

Passenger Power Seat Recliner Motor:
