Sunroof / Moonroof Panel: Service and Repair

REMOVAL
1. Slide sunshade rearward to the open position.
2. Move the glass panel to the fully closed position.

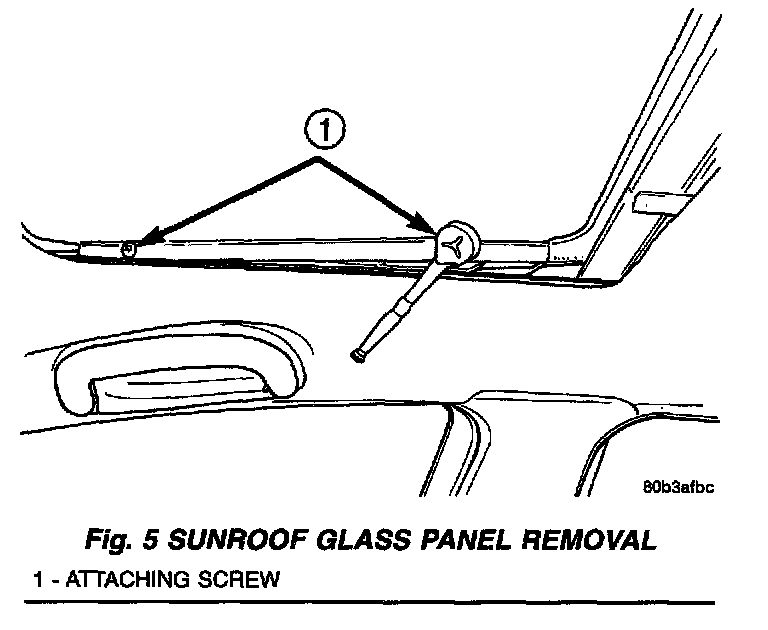

Fig. 5 Sunroof Glass Panel Removal:






3. Remove the four attaching screws.
4. Lift off glass panel and remove from vehicle.

INSTALLATION
1. Position glass panel, centered to opening.
2. Start the four attaching screws.
3. Tighten screws.
4. Verify sunroof operation and alignment.Check fit and adjust as necessary, refer to Sunroof Glass Panel Adjustment for proper procedures.
