Sunroof / Moonroof Panel: Adjustments

Sunroof Drive Cable Timing


NOTE: A gage comes with the new motor.


1. If the glass panel was not in the fully closed position, when the sunroof drive motor was removed, the sunroof glass panel needs to be timed, before the new motor is installed.
2. Remove sunroof glass panel.

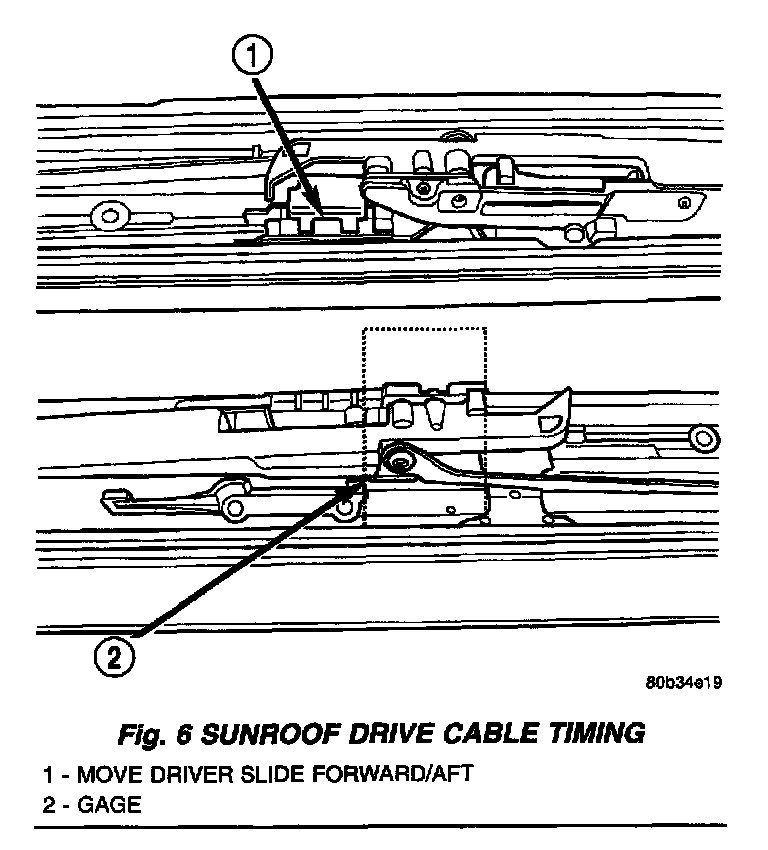

Fig. 6 Sunroof Drive Cable Timing:

3. Set gage into the track near the rear of the opening between the move driver slide and the bracket.
4. Move the driver slide forward or aft to get proper setting.
5. Repeat the operation on the other side.
6. Install sunroof drive motor.
