Front Hose

REMOVAL

1. Move glass panel to the fully closed position.
2. Disconnect the control switch and wire connector.
3. Remove headliner as necessary.
4. Remove side kick cowl panel.

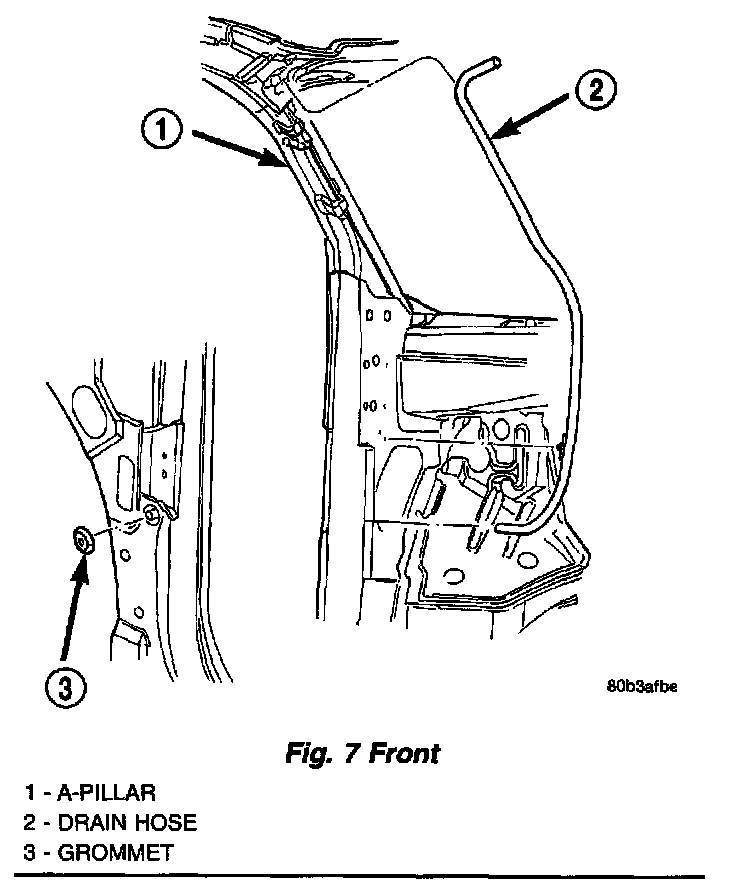

Fig. 7 Front:

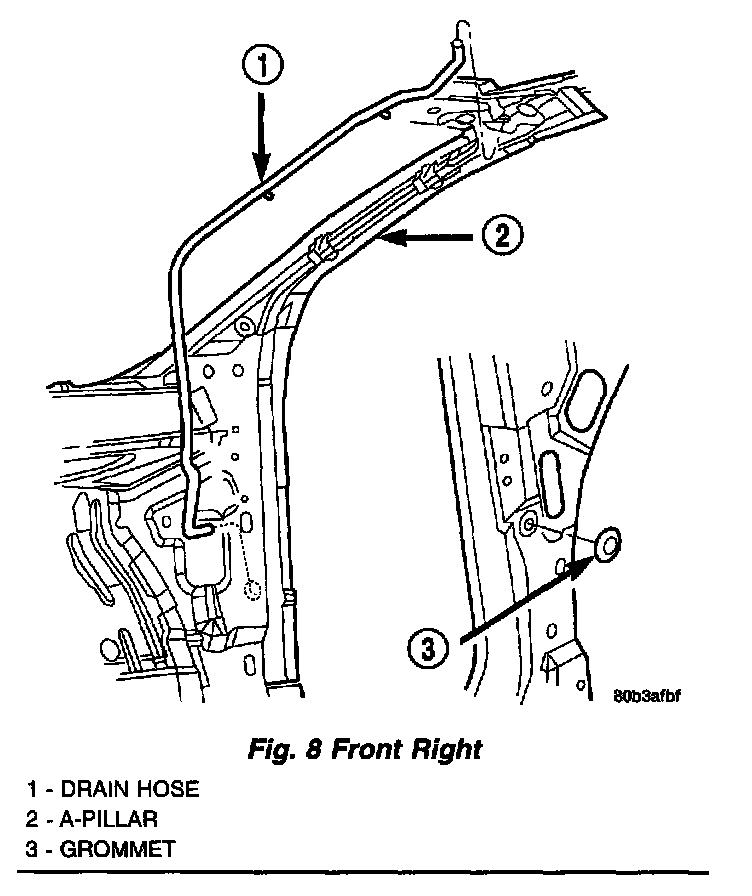

Fig. 8 Front Right:

5. Disconnect drain hose clips from body holes.
6. Drain any liquid from hose connection, if necessary.
7. Remove old hoses between trim and metal and replace with new.
8. Work the hose back and forth to loosen.
9. Attach the end of the old hose to the end of the new hose.
10. Pull the old hose down and through instrument panel dragging new hose with it, until end of new hose is near grommet on side cowl.
11. Remove drain grommet from sheet metal.
12. Remove old hose from new hose.

INSTALLATION
1. Insert end of new hose into drain grommet and replace grommet into sheet metal.
2. Attach hose upper clips into holes in sheet metal.
3. Engage upper flair end of hose into sunroof module drain nipple and secure with ratchet clamp.
