Electrical Diagrams

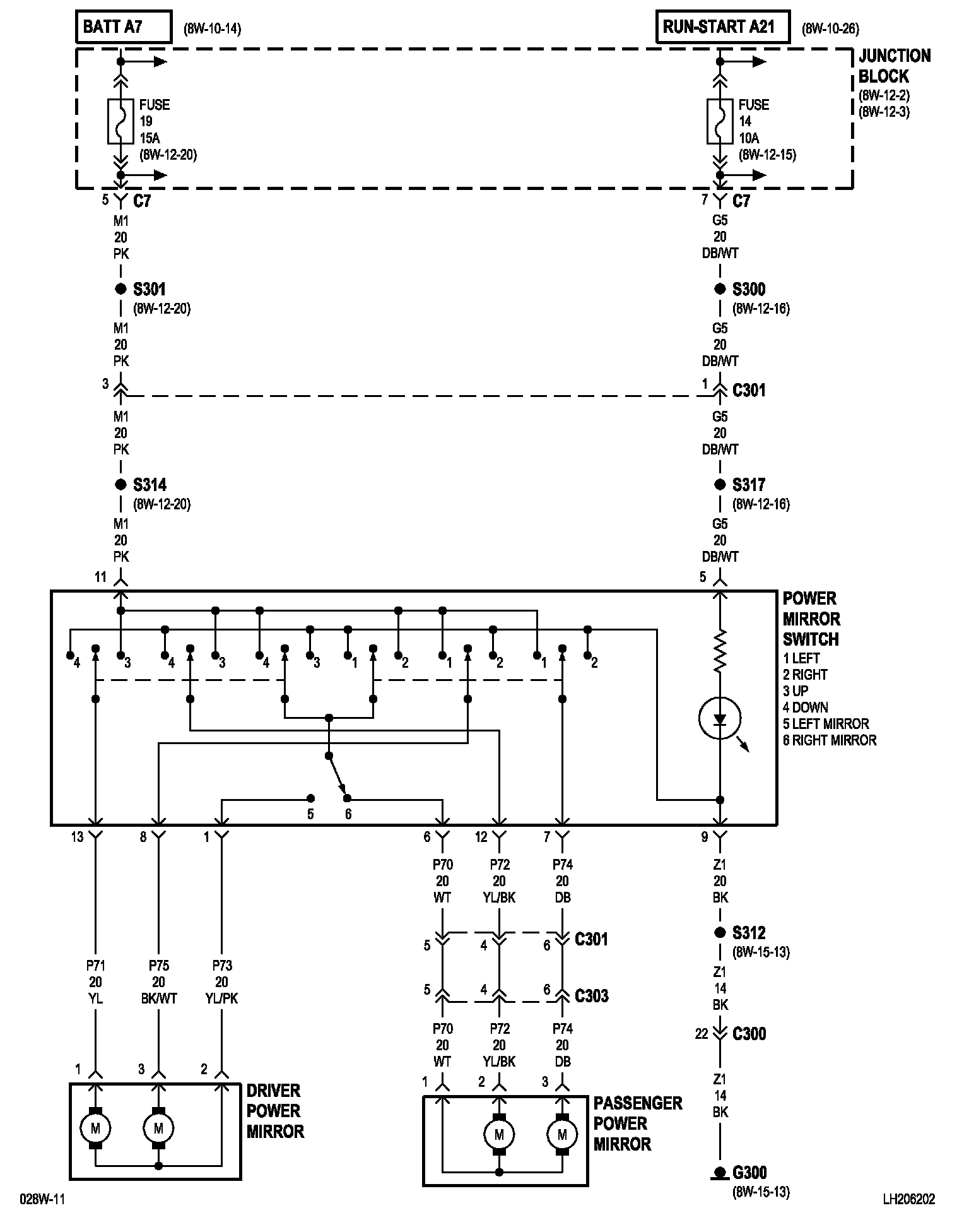

8w-62-2 (Base):

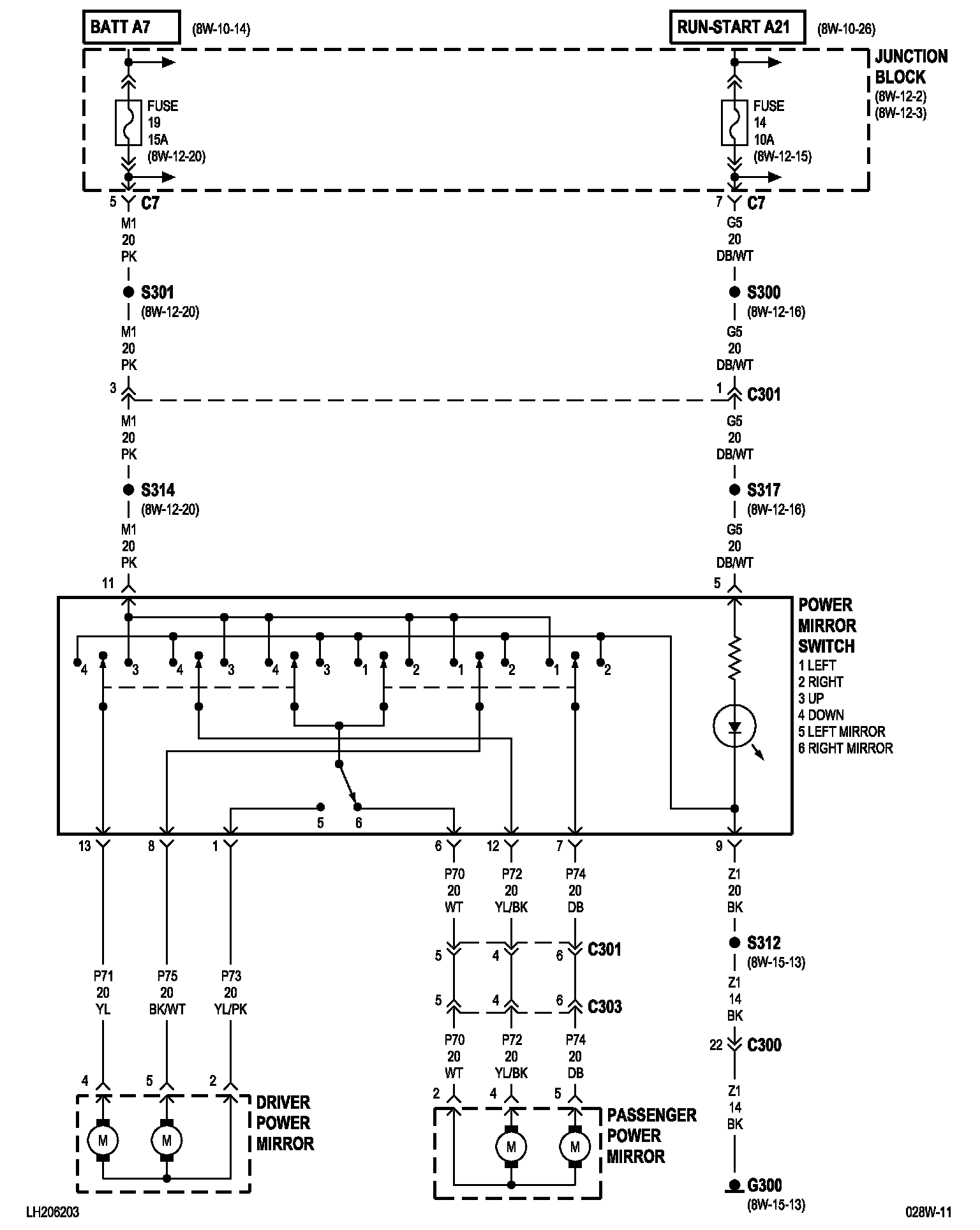

8w-62-3 (Premium):

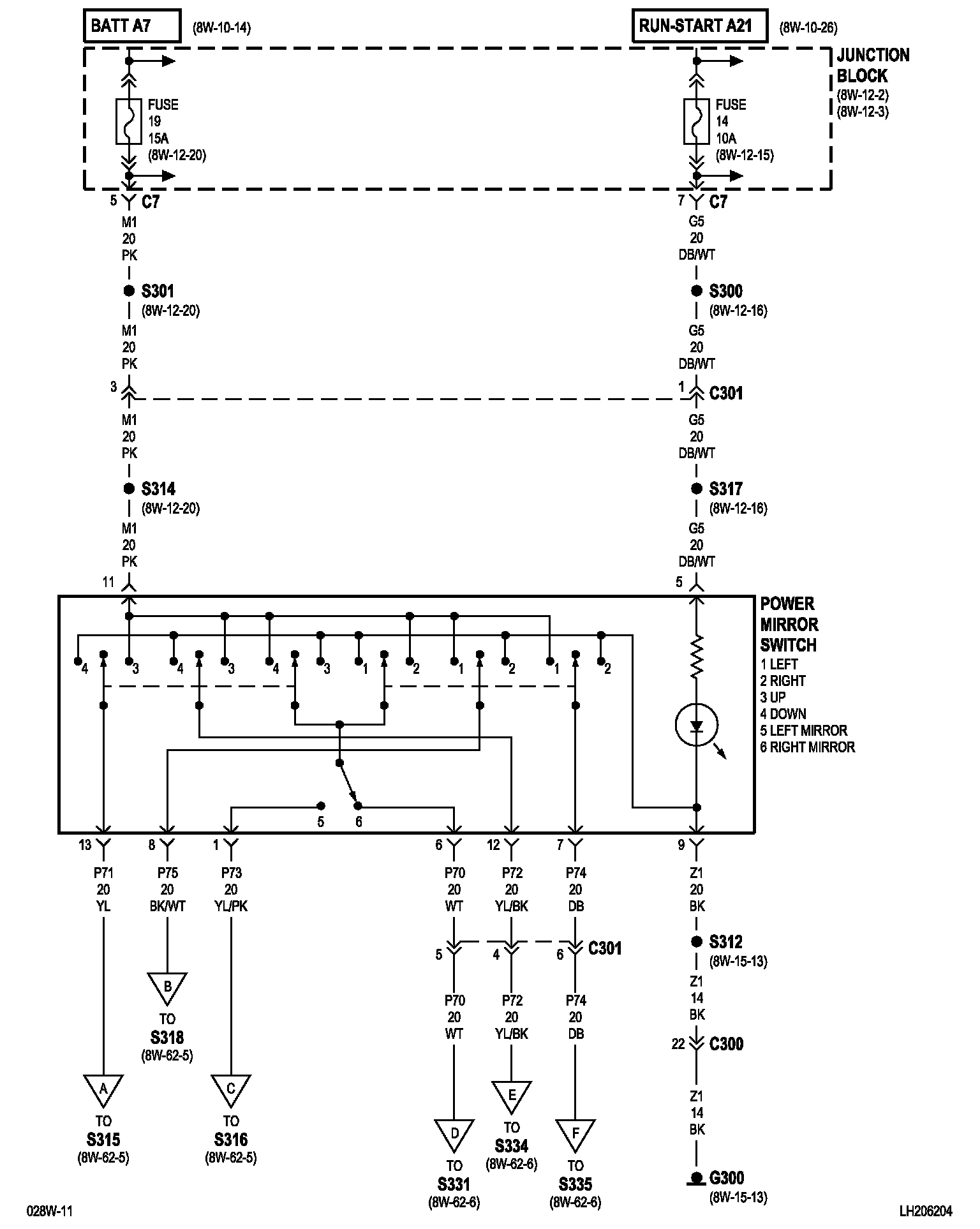

8w-62-4 (Memory/Heated):

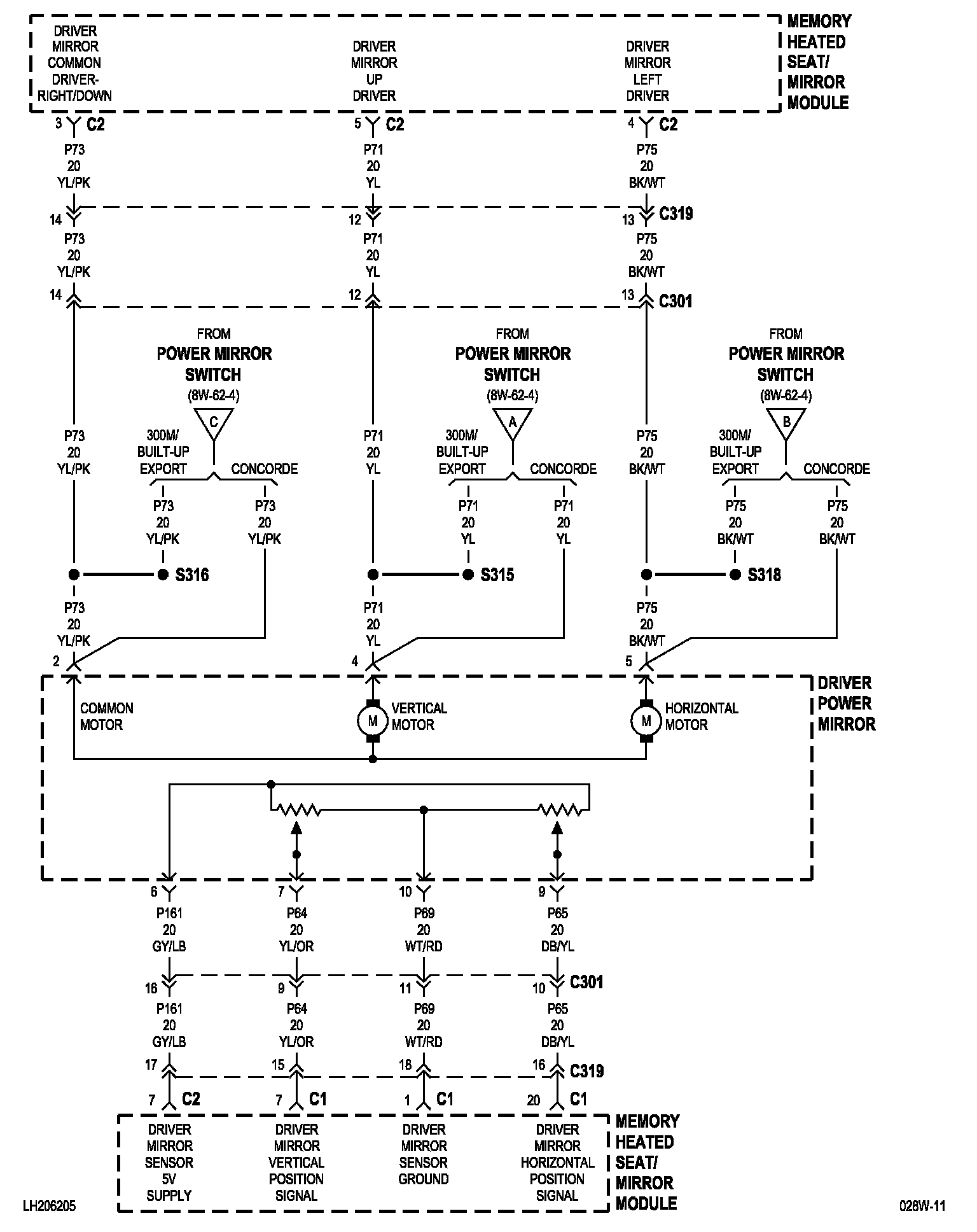

8w-62-5 (Memory/Heated):

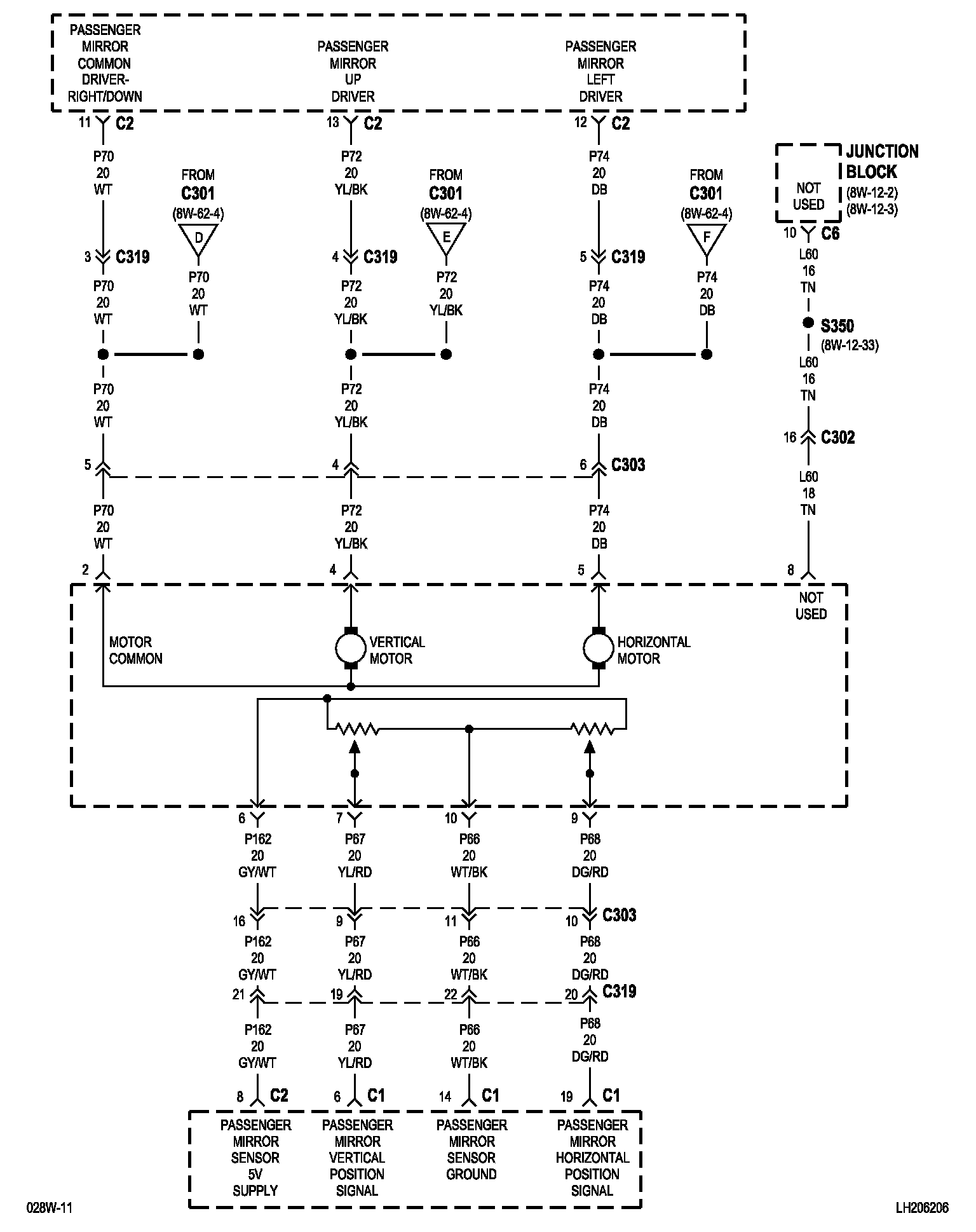

8w-62-6 (Memory/Heated):

8w-62-7 (Premium/Memory/Heated):

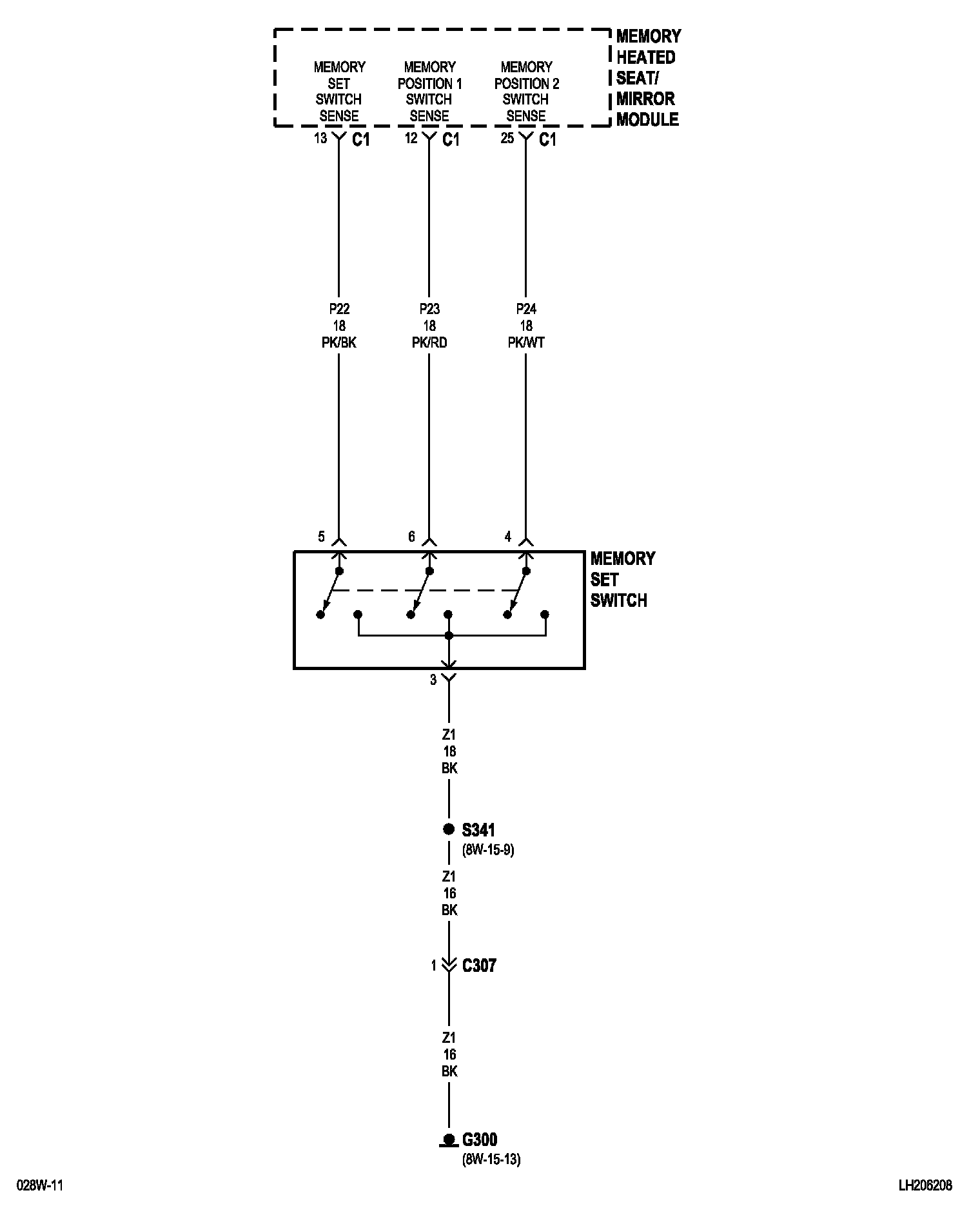

8w-62-8 (Memory/Heated):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
