Instrument Panel Top Cover

REMOVAL

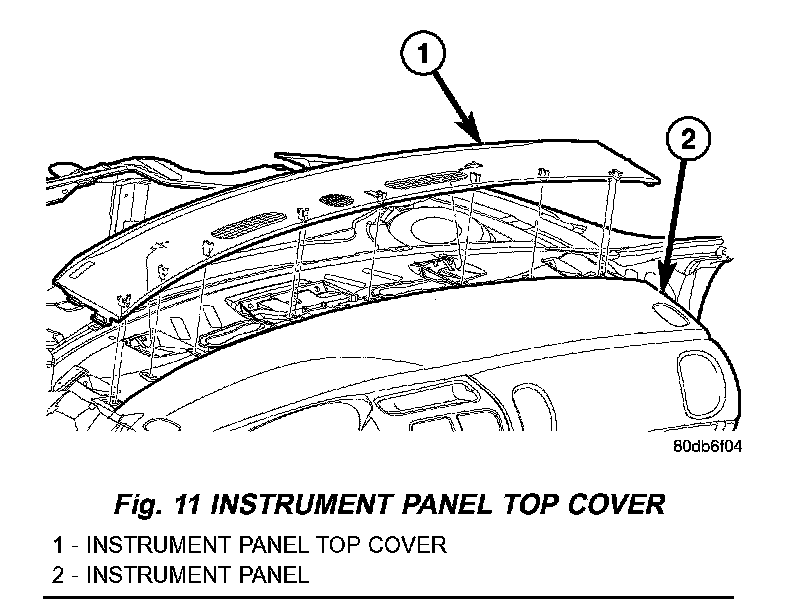

Fig.11 Instrument Panel Top Cover:

1. Using a trim stick (special tool #C-4755) or equivalent, pry out the left and right A-pillar moldings, slide rearward and remove.
2. Using a trim stick or equivalent, slip each end of the instrument panel top cover up to disengaging clips.
3. Lift rear edge of the top cover using a trim stick along the rear edge of the instrument panel top cover.
4. Slide the instrument panel top cover rearward to disengaging the eight clips.
5. Remove the instrument panel top cover from vehicle.

INSTALLATION
1. Place the the instrument panel top cover into position over the slots for the retaining clips, slide forward and firmly snap into place.
2. Firmly push down on the rear of the instrument panel top cover to engage clips
3. Place the left and right A-pillar moldings into position over the retaining clip slots, slide forward and firmly snap into place.
