Instrument Panel Silencer

REMOVAL
1. Remove all parts mounting through the dash silencer,

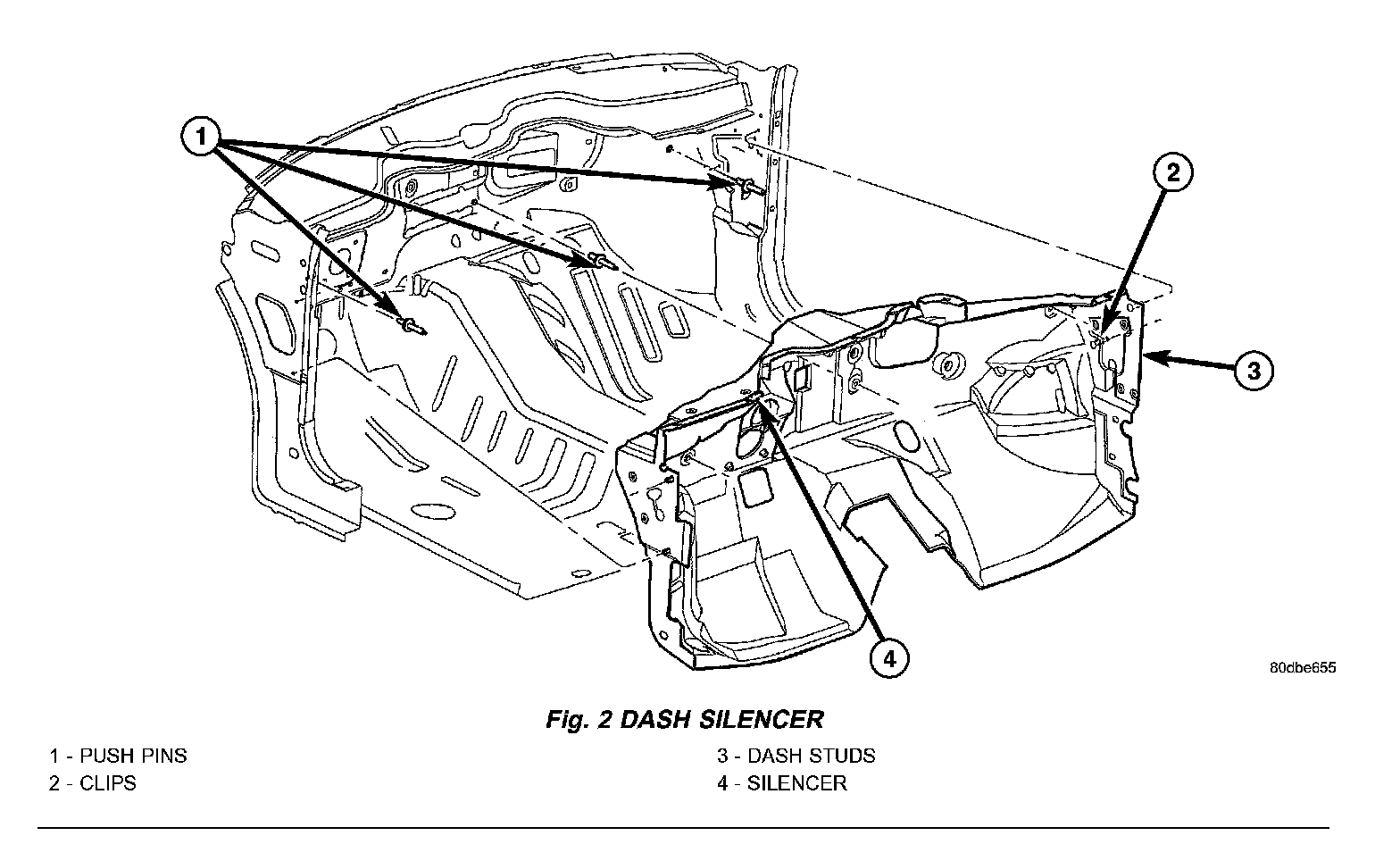

Fig.2 Dash Silencer:

2. Feed electrical wires back through the silencer wiring pass through holes.
3. Remove fasteners attaching silencer to the dash and side cowls.
4. Remove silencer from vehicle.

INSTALLATION
1. Position silencer to dash panel and cowl panels.
2. Push retainers over previously installed studs on the dash panel.
3. Attach silencer with push pins to the side cowl and clips to the top cowl/dash weld flange.
4. Install all other parts removed.
