Instrument Panel Center Bezel

REMOVAL

Fig. 1 Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove ash receiver (if applicable).

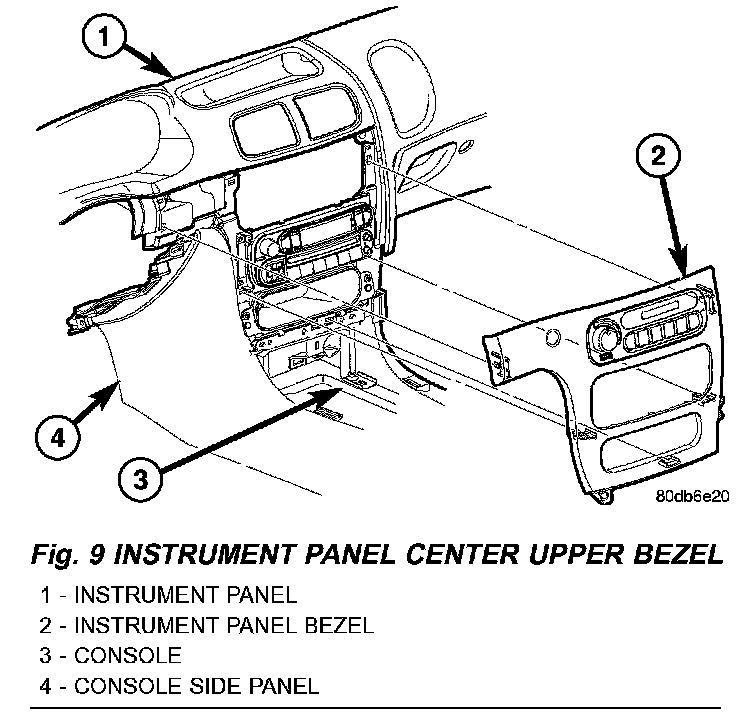

Fig.9 Instrument Panel Center Upper Bezel:

3. Using a trim stick (special tool #C-4755) or equivalent, gently pry out on center trim bezel. Disconnect wiring connectors to HVAC controls, cigar lighter/auxiliary power outlet and traction control switch (if equipped).
4. Remove instrument panel center trim bezel.

NOTE: The traction control switch, HVAC control head and cigar lighter/auxiliary power outlet must be transferred to new bezel if being replaced.

INSTALLATION
1. Connect wiring connectors to HVAC controls, cigar lighter/auxiliary power outlet and traction control switch (if equipped).
2. Place the instrument panel center trim bezel into position and firmly snap into place.
3. Install the ash receiver (if equipped).
4. Connect the negative battery cable remote terminal to the remote battery post.
