Speaker: Service and Repair

REMOVAL
Front Door - Lower
1. Disconnect and isolate the battery negative cable.
2. Open drivers door.

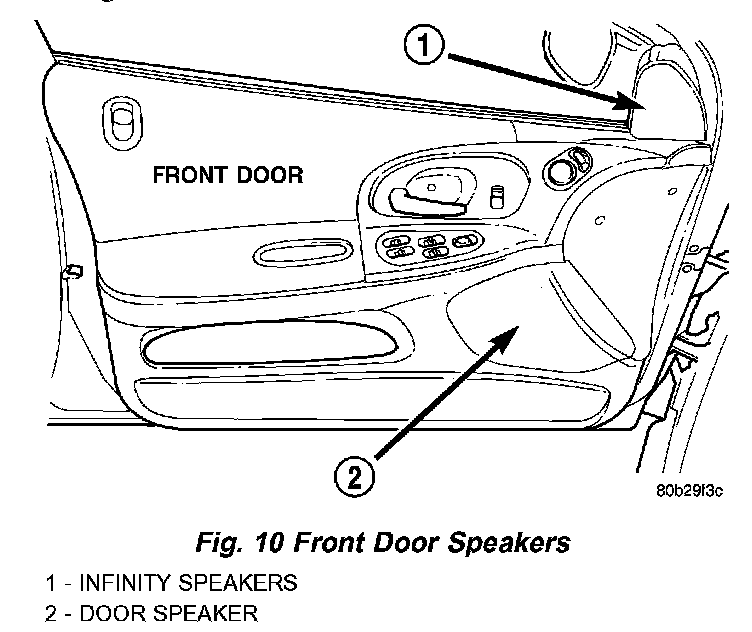

Fig. 10 Front Door Speakers:

3. Using a trim stick (special tool #C-4755), carefully pry speaker grille away from door trim panel.
4. Remove three speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.

Front Door - Upper
1. Disconnect and isolate the battery negative cable.
2. Open drivers door.
3. Remove two speaker enclosure attachment screws holding the enclosure ring and grill to the door.
4. Remove two speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.

Instrument Panel
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.
3. Remove two retaining screws to center speaker and disconnect wiring connector.
4. Remove speaker from vehicle.

Rear Door
1. Disconnect and isolate the battery negative cable.
2. Open rear door.

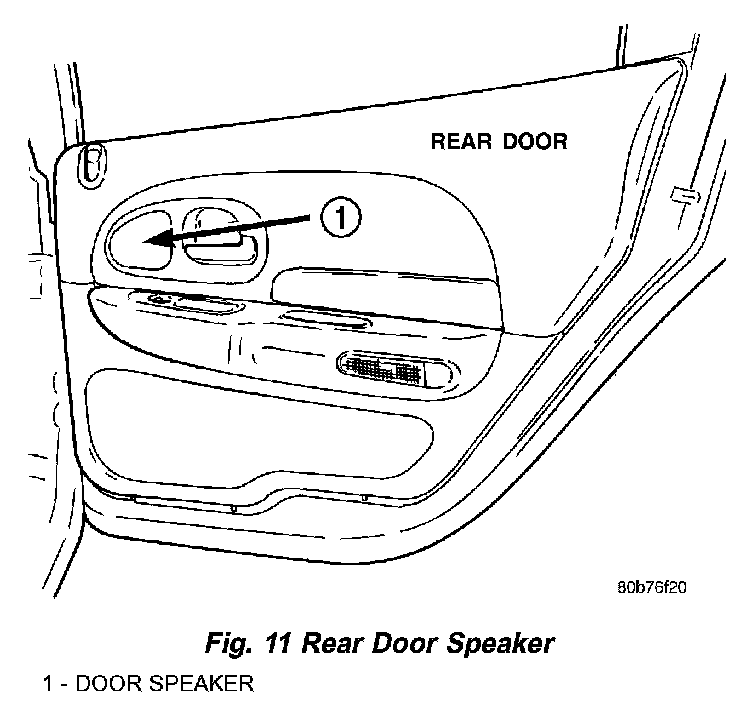

Fig. 11 Rear Door Speaker:

3. Using a trim stick (special tool #C-4755), carefully pry speaker grille away from door trim panel.
4. Remove two speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.

Rear Shelf
1. Disconnect and isolate the battery negative cable.
2. Remove the rear shelf trim panel.
3. Remove four retaining screws.
4. Remove speaker and disconnect wire connector.

INSTALLATION
Front Door - Lower
1. Connect wiring and place speaker in door speaker opening.
2. Install three speaker retaining screws.
3. Place speaker grille into place and firmly press into place.
4. Connect battery negative cable.

Front Door - Upper
1. Connect wiring and place speaker in door speaker opening.
2. Install two speaker retaining screws.
3. Install two speaker enclosure attachment screws holding the enclosure ring and grill to the door.
4. Connect battery negative cable.

Instrument Panel
1. Place speaker into position on instrument panel.
2. connect wiring connector, install two retaining screws to center speaker.
3. Install instrument panel top cover.
4. Connect battery negative cable.

Rear Door
1. Connect wiring and place speaker in door speaker opening.
2. Install two speaker retaining screws.
3. Place speaker grille into place and firmly snap into place on the door trim panel.
4. Connect battery negative cable.

Rear Shelf
1. Connect wire connector and place speaker into speaker opening.

CAUTION: Be sure that the wiring connectors are facing forward when installed.

2. Install the four retaining screws.
3. Install the rear shelf trim panel.
4. Connect battery negative cable.
