Midline/Infinity I System

MIDLINE/INFINITY I SYSTEM

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove right under panel silencer/duct.

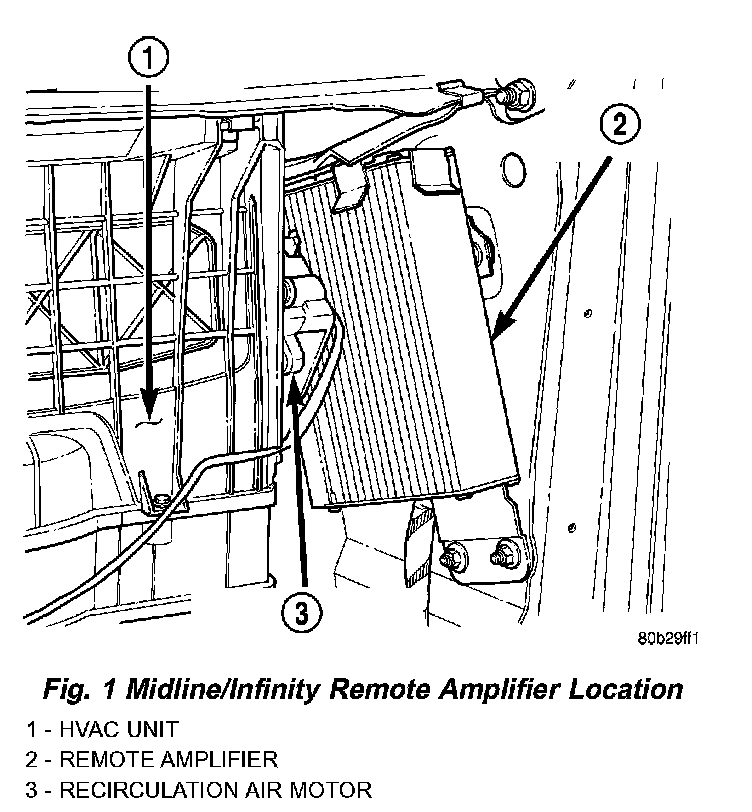

Fig. 1 Midline/Infinity Remote Amplifier Location:

3. Remove mounting fastener to remote amplifier.
4. Pull amplifier inboard and then pull downward to remove from upper retaining clips.
5. Disconnect two wiring connectors.
6. Remove remote amplifier from vehicle.

INSTALLATION
1. Install the remote amplifier into vehicle.
2. Connect two wiring connectors.
3. Push the amplifier upward and then outboard to install into upper retaining clips.
4. Install mounting fastener to remote amplifier.
5. Install right under panel silencer/duct.
6. Connect the negative battery cable.
