Infinity II System

INFINITY II SYSTEM

REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Inside trunk, pull the trunk liner aside (right quarter panel passenger side).

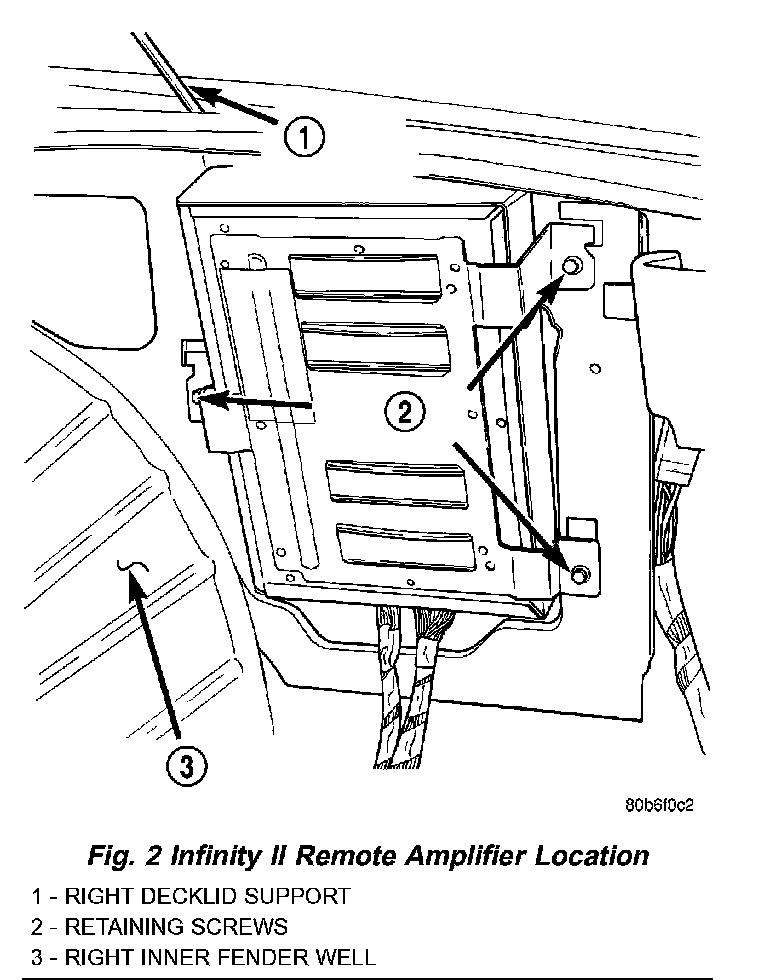

Fig. 2 Infinity II Remote Amplifier Location:

3. Remove three retaining screws.
4. Disconnect two wire connectors.
5. Remove remote amplifier from vehicle.

INSTALLATION
1. Install remote amplifier into vehicle.
2. Connect two wire connectors.
3. Install three retaining screws.
4. Install the trunk liner (right quarter panel passenger side).
5. Connect the negative battery cable.
