P2008

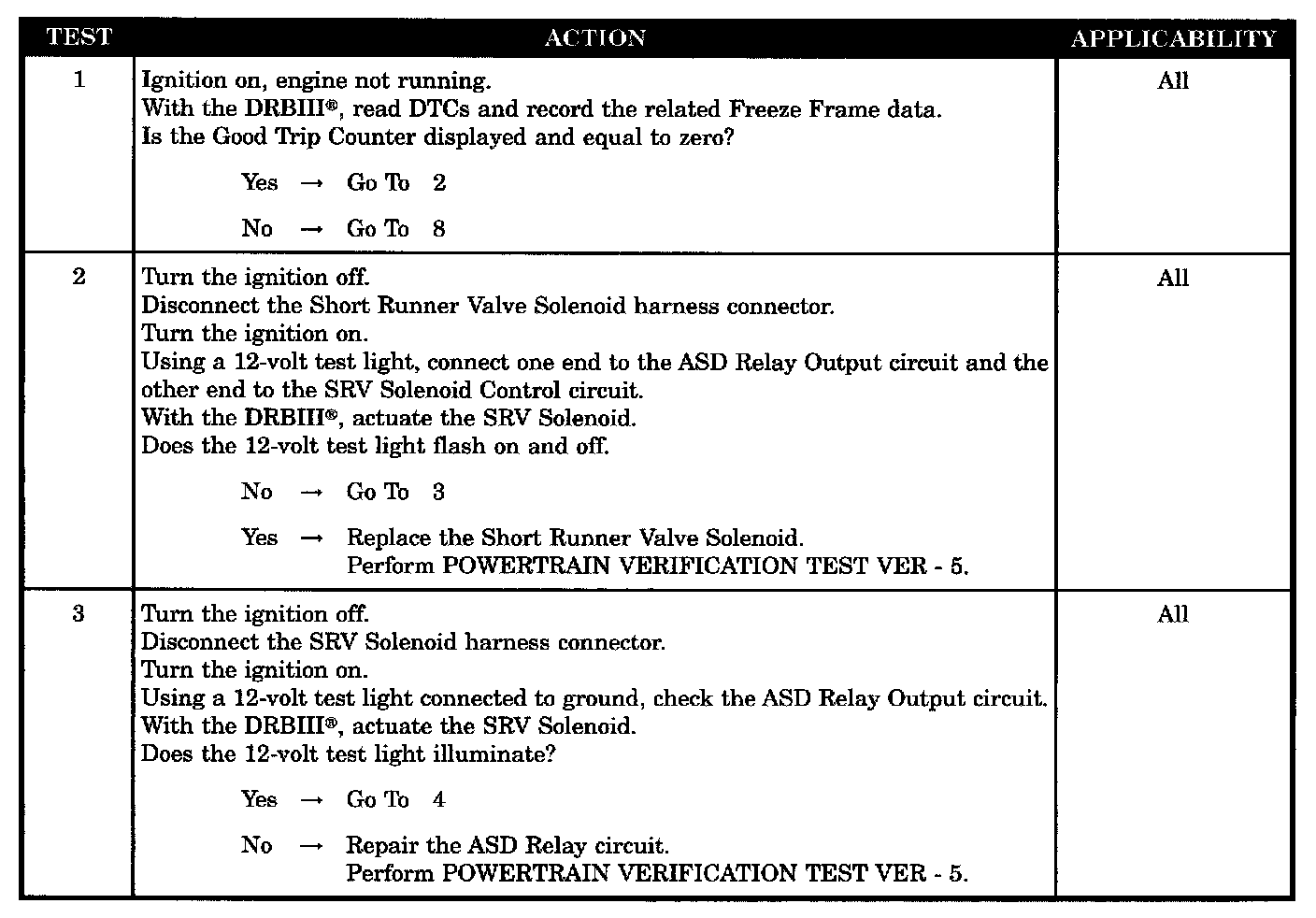

Tests 1 - 3:

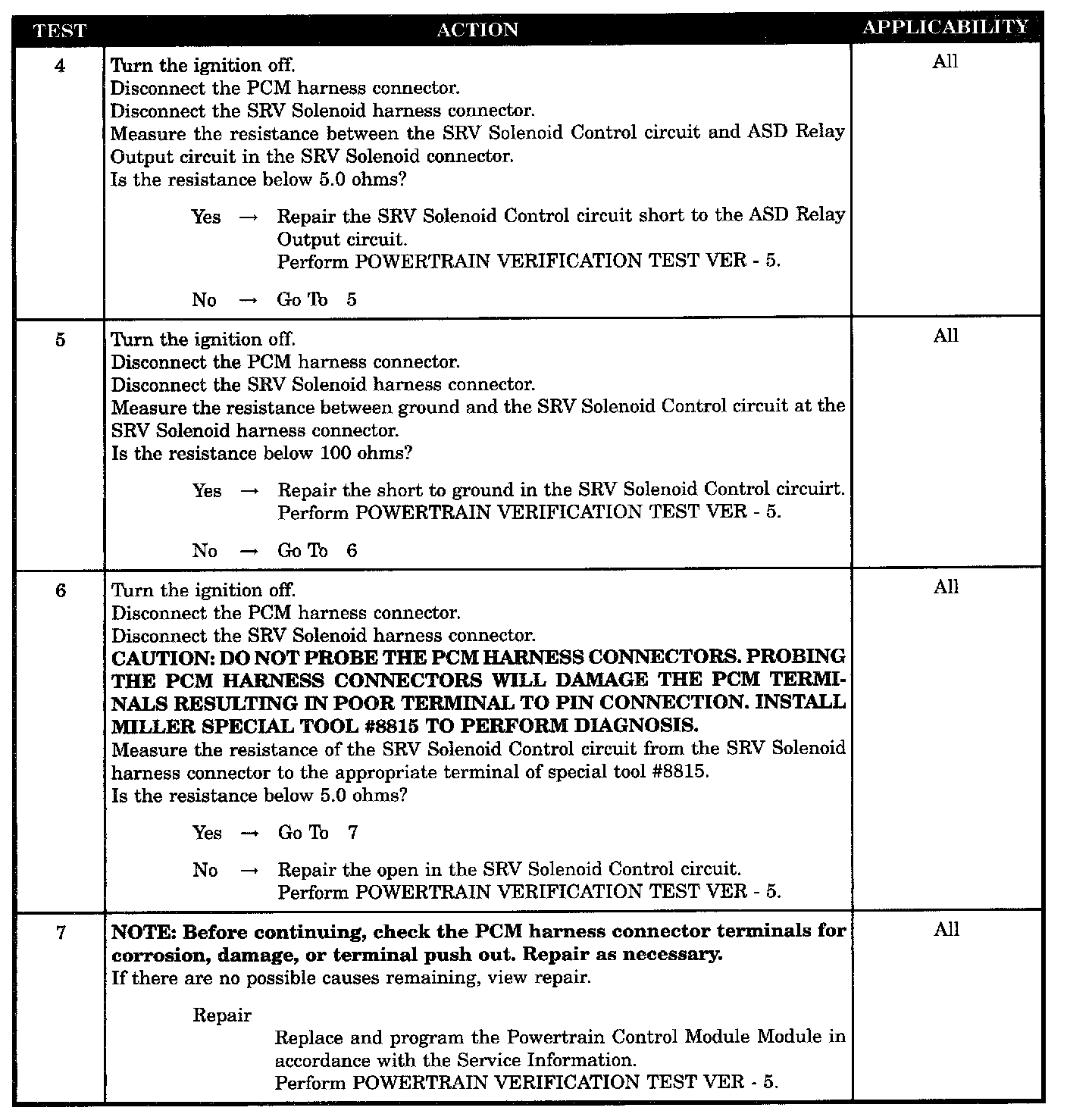

Tests 4 - 7:

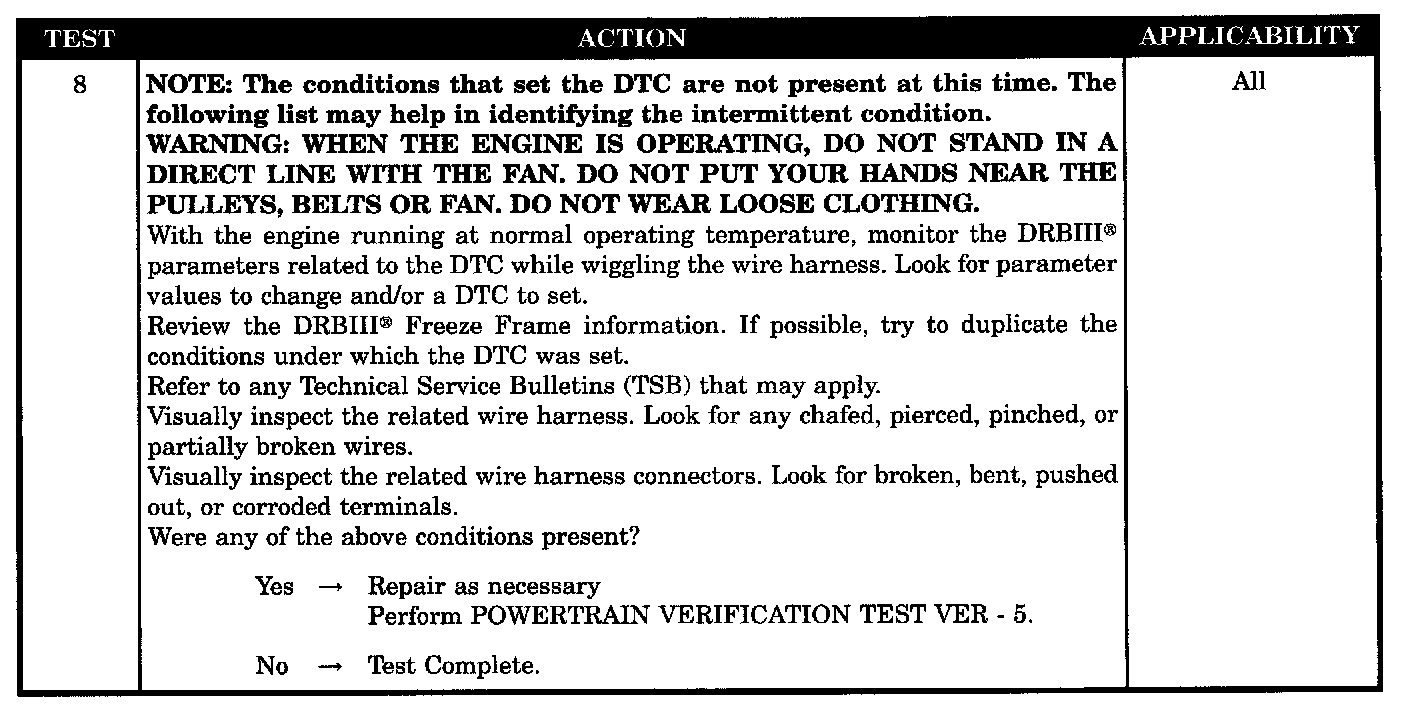

Test 8:

SYMPTOM
P2008-SHORT RUNNER SOLENOID CIRCUIT

WHEN MONITORED
The Engine running. ASD Relay is energized.

SET CONDITION
The PCM sense the SRV is not at the desired state. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Short runner valve solenoid operation
- ASD relay output circuit
- SRV solenoid control circuit shorted to ASD relay output circuit
- SRV solenoid control circuit shorted to ground
- SRV solenoid control circuit open
- PCM
