P1797

SYMPTOM
P1797 - MANUAL SHIFT OVERHEAT

WHEN MONITORED
Whenever the engine is running and transmission is in the AutoStick mode.

SET CONDITION
If the Engine Temperature exceeds 123°C or 255°F or the Transmission Temperature exceeds 135 °C (275 °F) while in AUTOSTICK mode.

NOTE: Aggressive driving or driving in low for extended periods of time in AUTOSTICK mode will set this DTC.

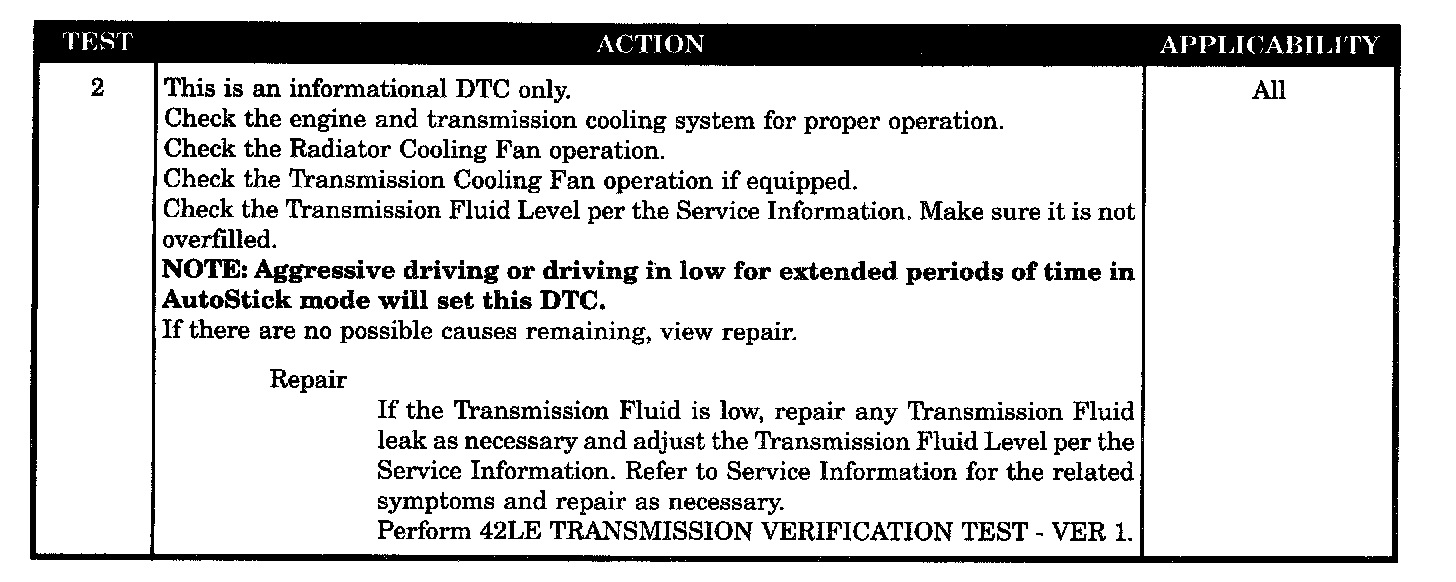

POSSIBLE CAUSES
- Manual shift overheat
