P1698

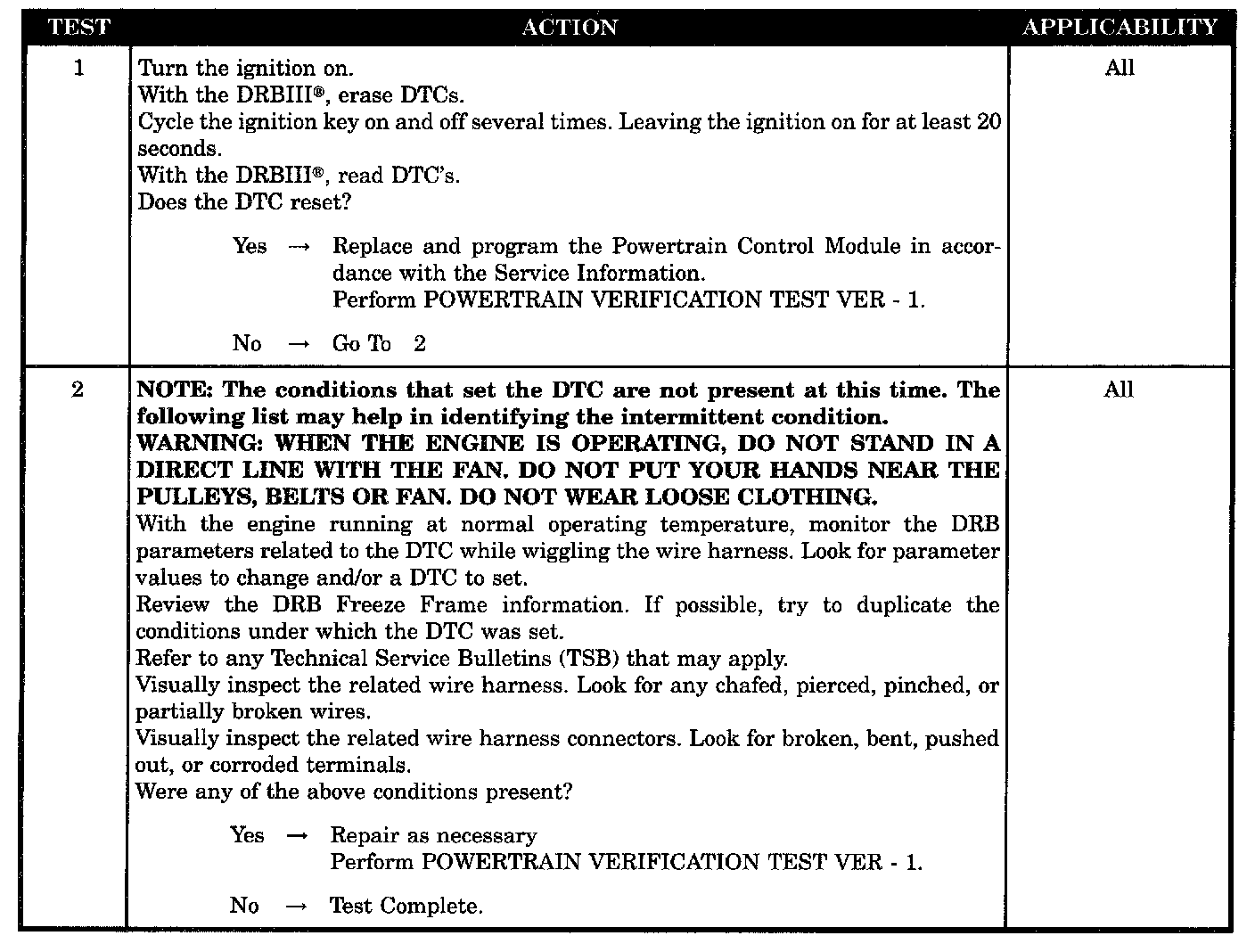

Tests 1 - 2:

SYMPTOM
P1698-NO TRANSMISSION BUS MESSAGE

WHEN MONITORED
Equipped with automatic transmission. The ignition ON. Battery voltage greater than 10 volts.

SET CONDITION
No bus messages from the TCM for 20 seconds, two trips required.

POSSIBLE CAUSES
- Intermittent condition
- PCM
