P1686

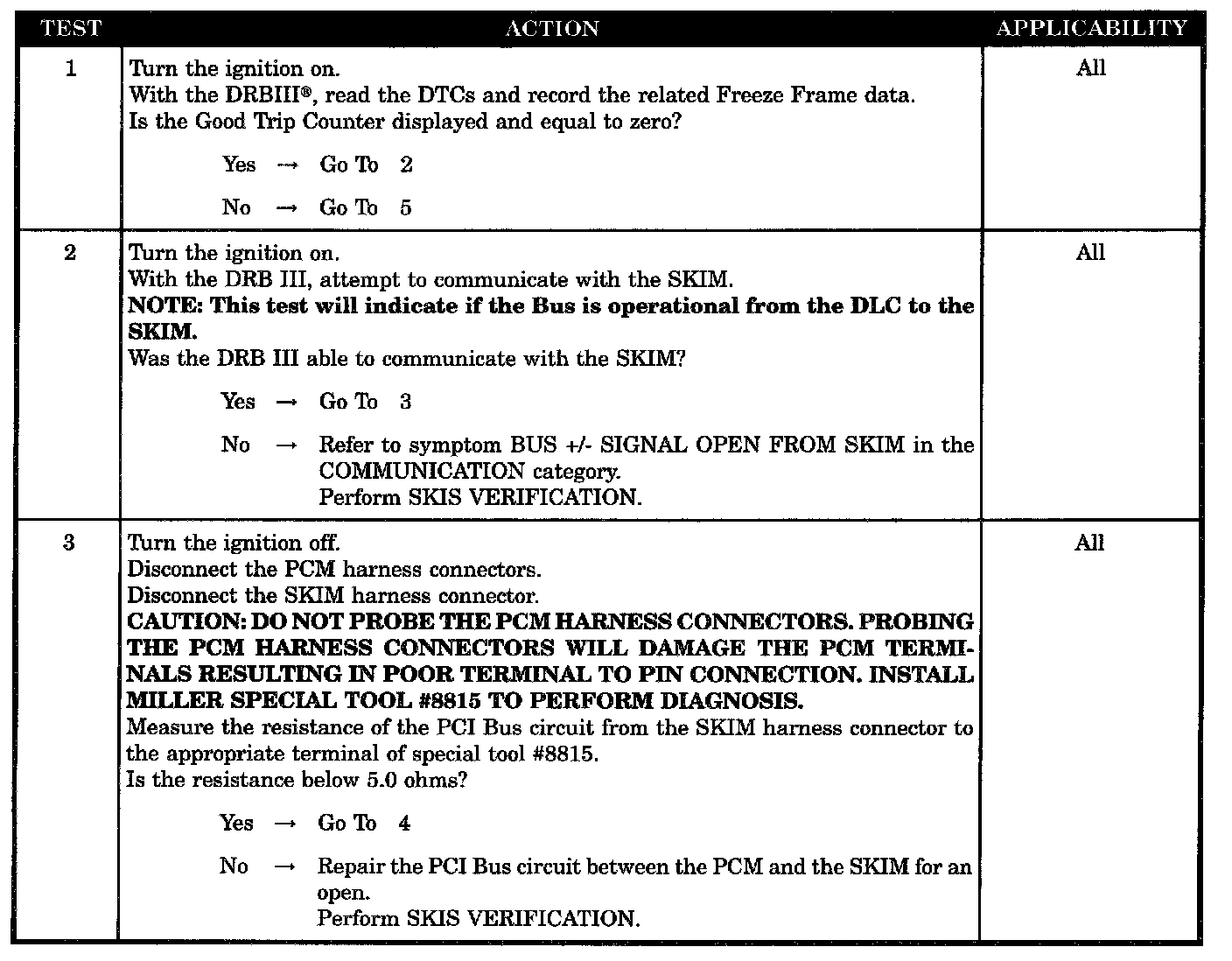

Tests 1 - 3:

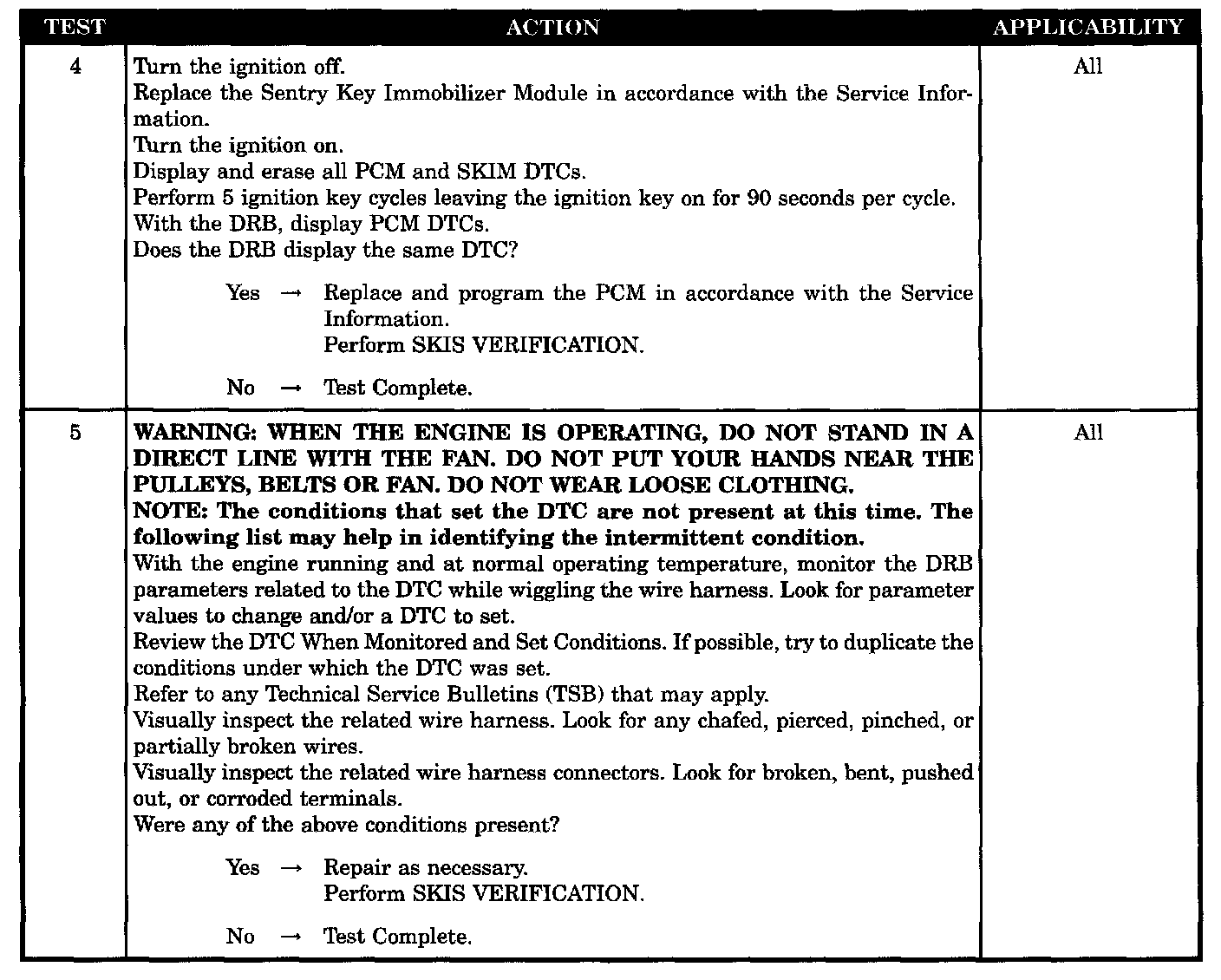

Tests 4 - 5:




SYMPTOM
P1686-NO SKIM BUS MESSAGES

POSSIBLE CAUSES
- Intermittent condition
- PCI bus circuit open from PCM to SKIM
- Loss of SKIM communication
- SKIM/PCM
