P0706

SYMPTOM

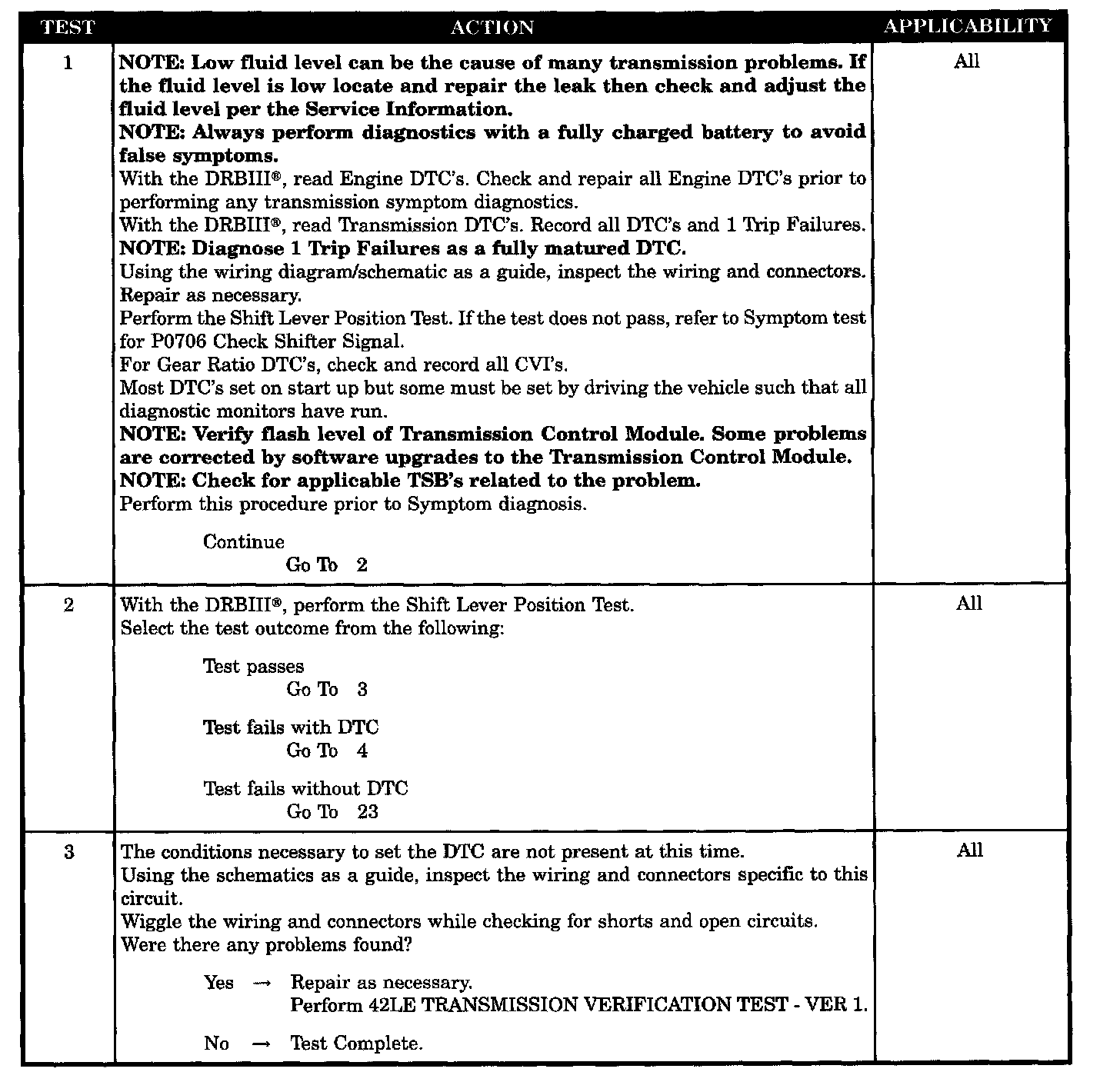

P0706 - CHECK SHIFTER SIGNAL

WHEN MONITORED
Continuously with the ignition on.

SET CONDITION
3 occurrences in one ignition start of an invalid PRNDL DTC which lasts for more than 0.1 second.

POSSIBLE CAUSES
- Intermittent wiring and connectors
- TRS T1 sense circuit open

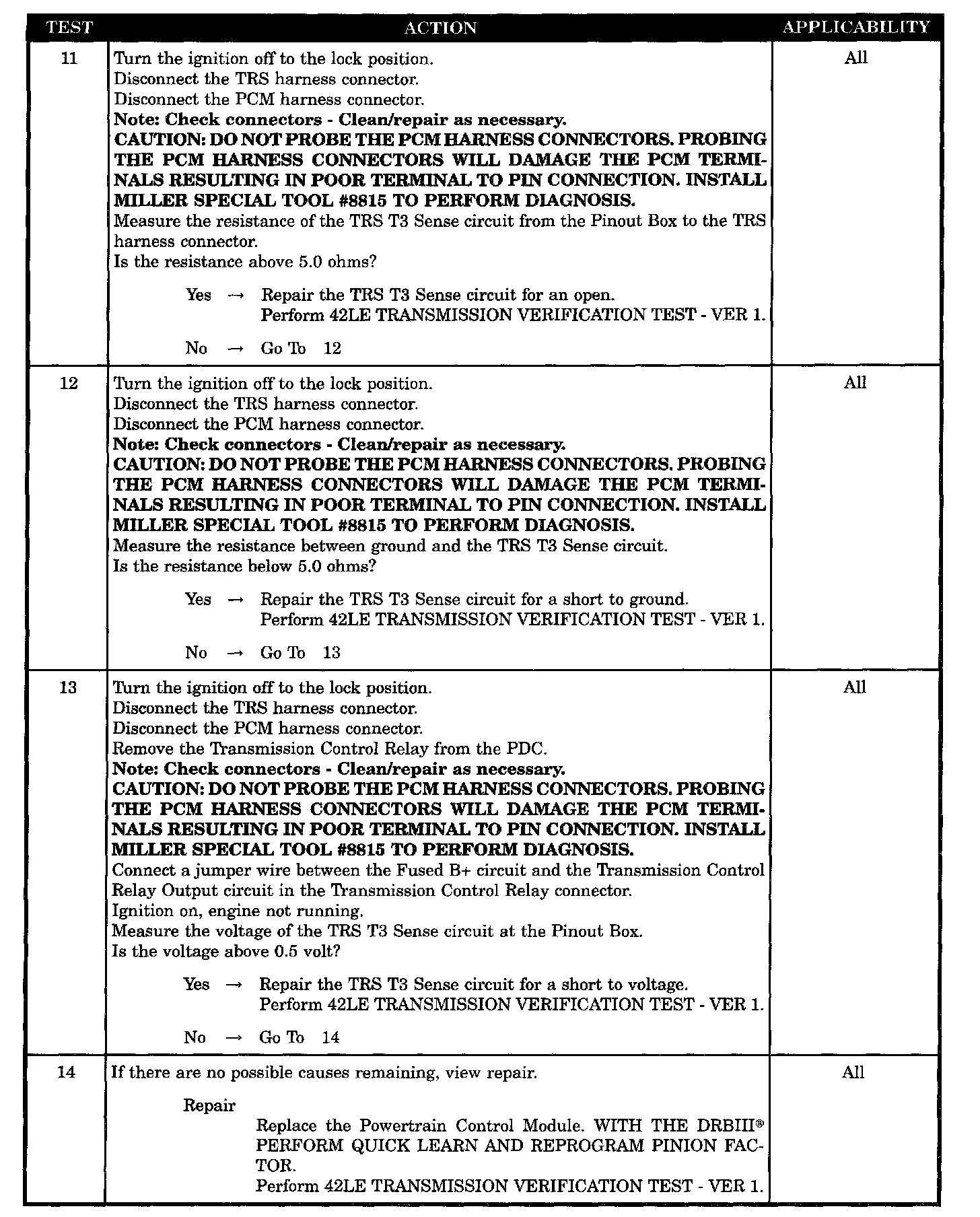

- TRS T3 sense circuit open

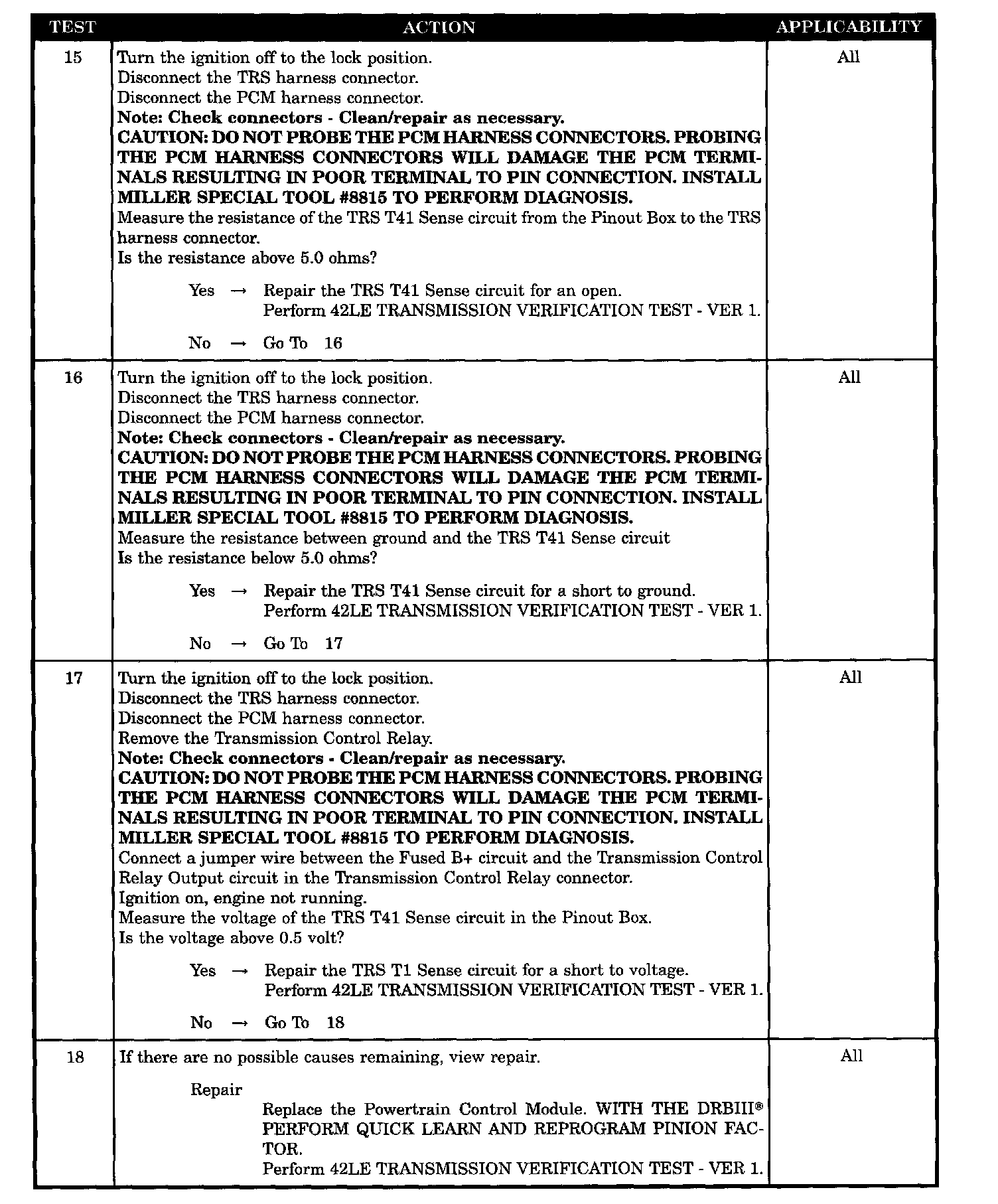

- TRS T41 sense circuit open

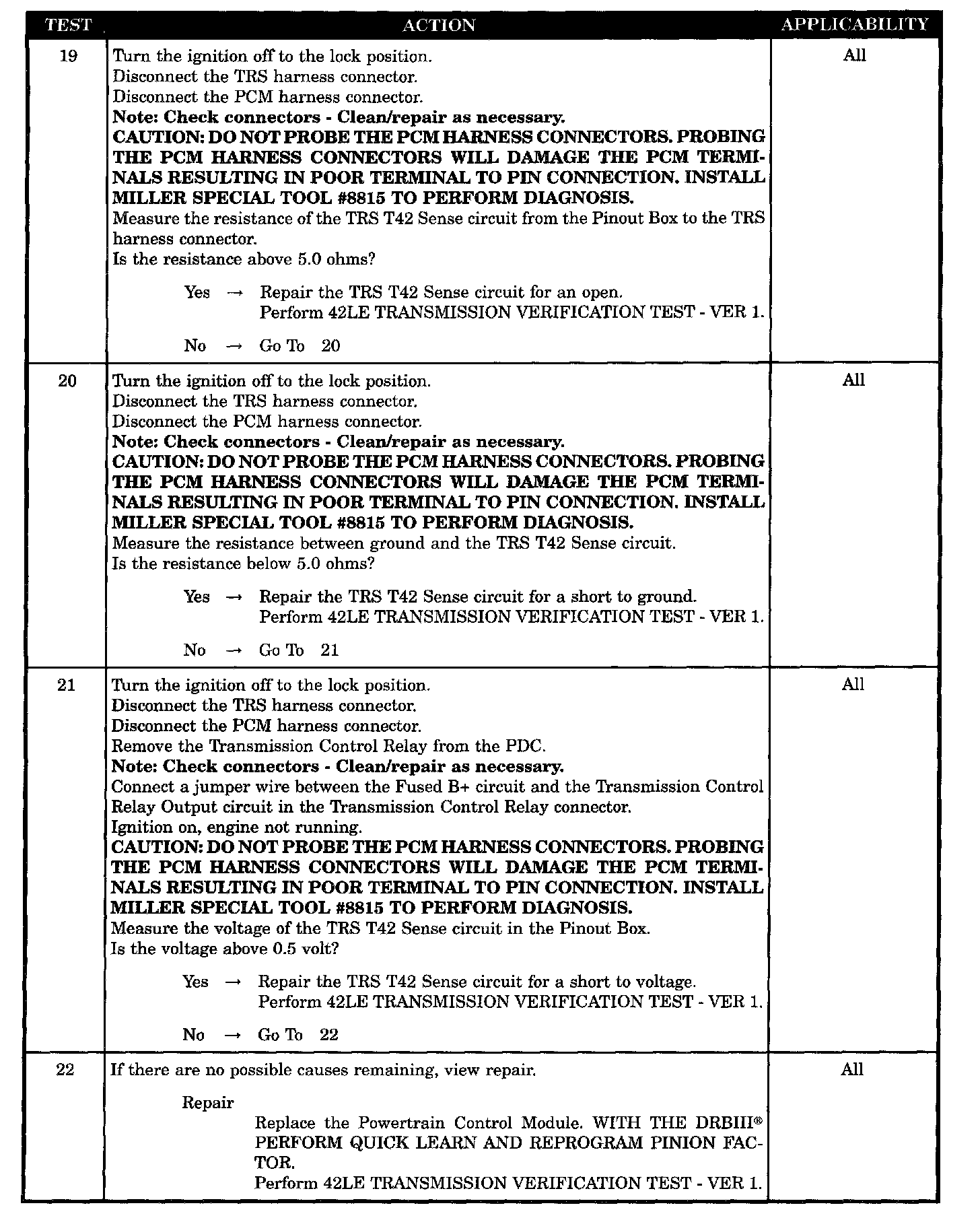

- TRS T42 sense circuit open
- TRS T1 sense circuit short to ground
- TRS T3 sense circuit short to ground
- TRS T41 sense circuit short to ground
- TRS T42 sense circuit short to ground
- TRS T1 sense circuit short to voltage
- TRS T3 sense circuit short to voltage
- TRS T41 sense circuit short to voltage
- TRS T42 sense circuit short to voltage

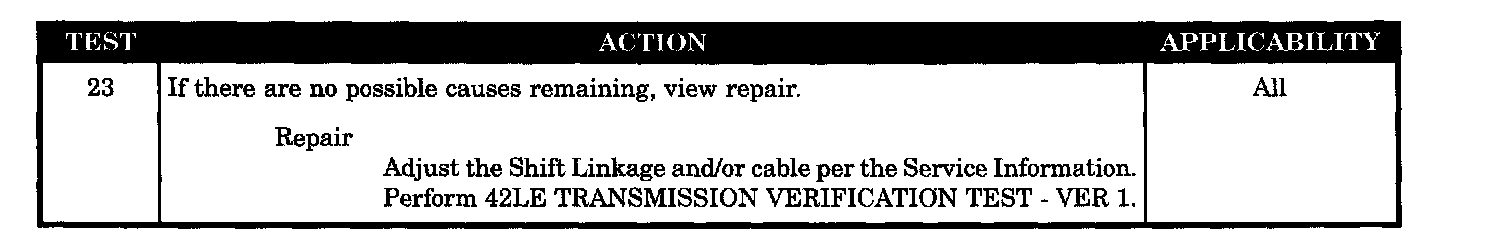

- Shift linkage out of adjustment
- PCM - TRS T1 sense circuit
- PCM - TRS T3 sense circuit
- PCM - TRS T41 sense circuit
- PCM - TRS T42 sense circuit
- Transmission range sensor
