P0660

Tests 1 - 2:

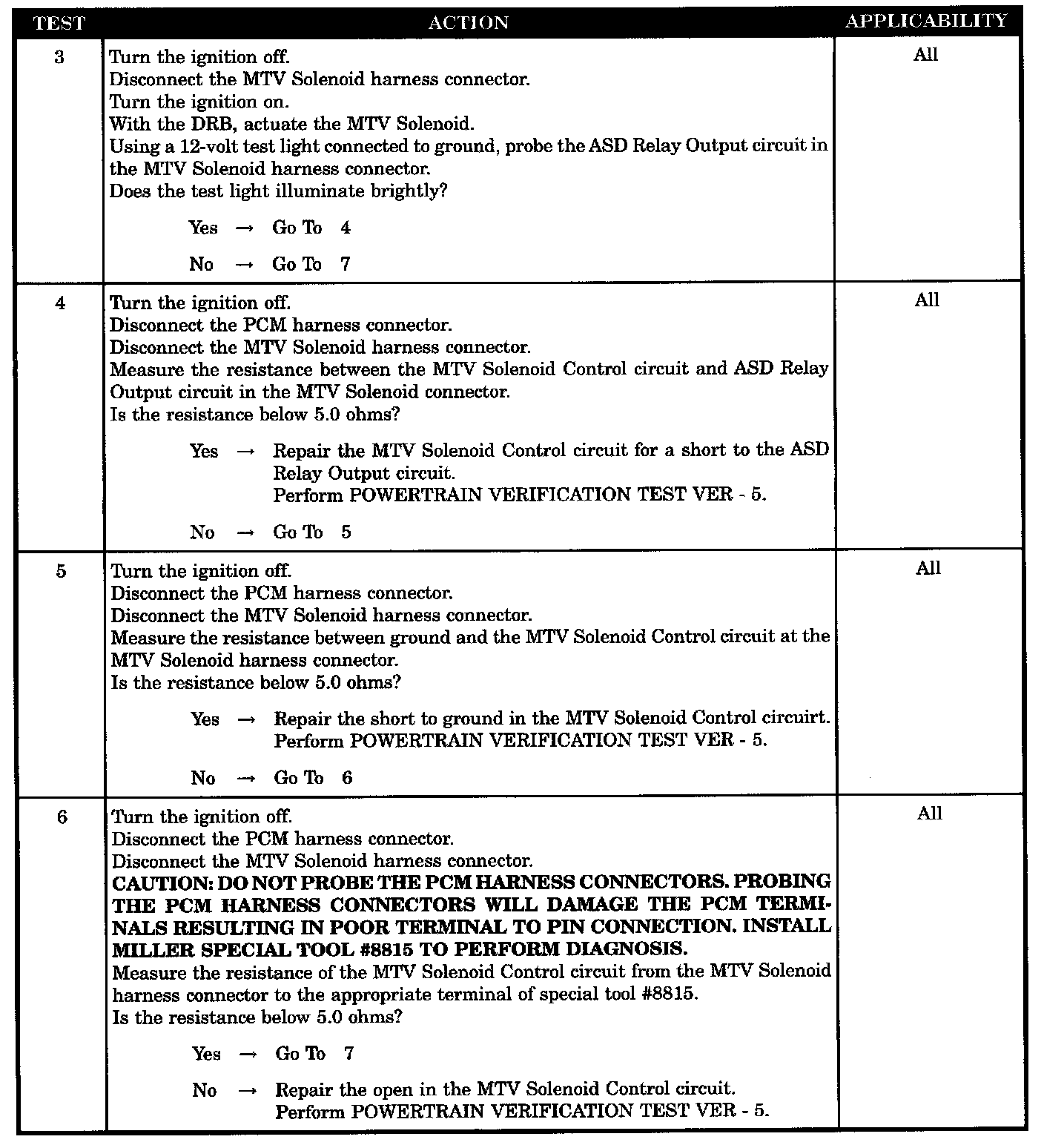

Tests 3 - 6:

Tests 7 - 9:

SYMPTOM
P0660-MANIFOLD TUNE VALVE SOLENOID CIRCUIT

WHEN MONITORED
With the ignition ON. ASD Relay energized. Battery voltage greater than 10 volts.

SET CONDITION
The PCM senses the MTV is not at the desired state. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Manifold tune valve solenoid operation
- ASD relay output circuit open
- Capacitor(s) shorted to ground
- ASD output circuit shorted to ground
- MTV solenoid control circuit shorted to ASD relay output circuit
- MTV solenoid control circuit shorted to ground
- MTV solenoid control circuit open
- PCM
