P0582

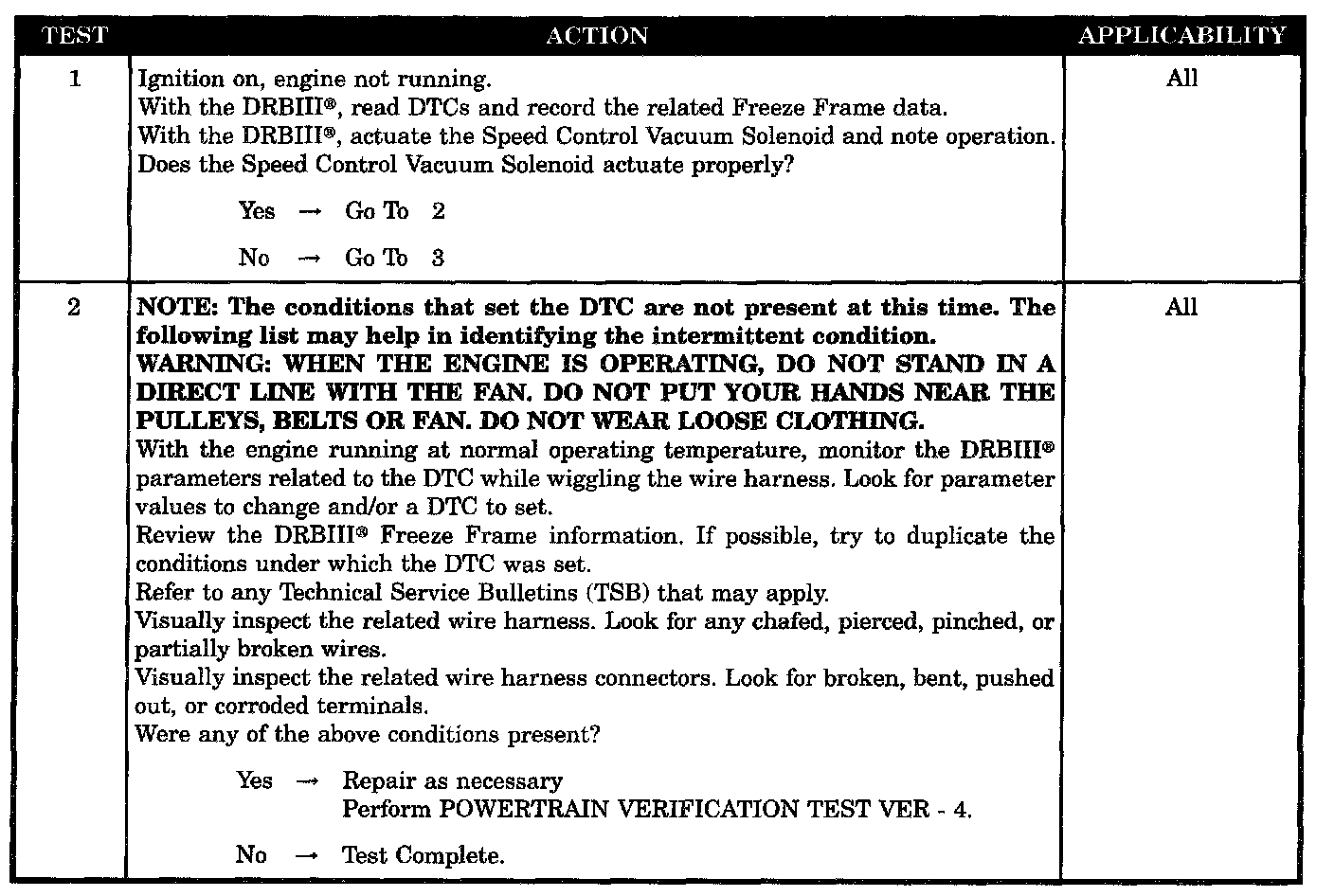

Tests 1 - 2:

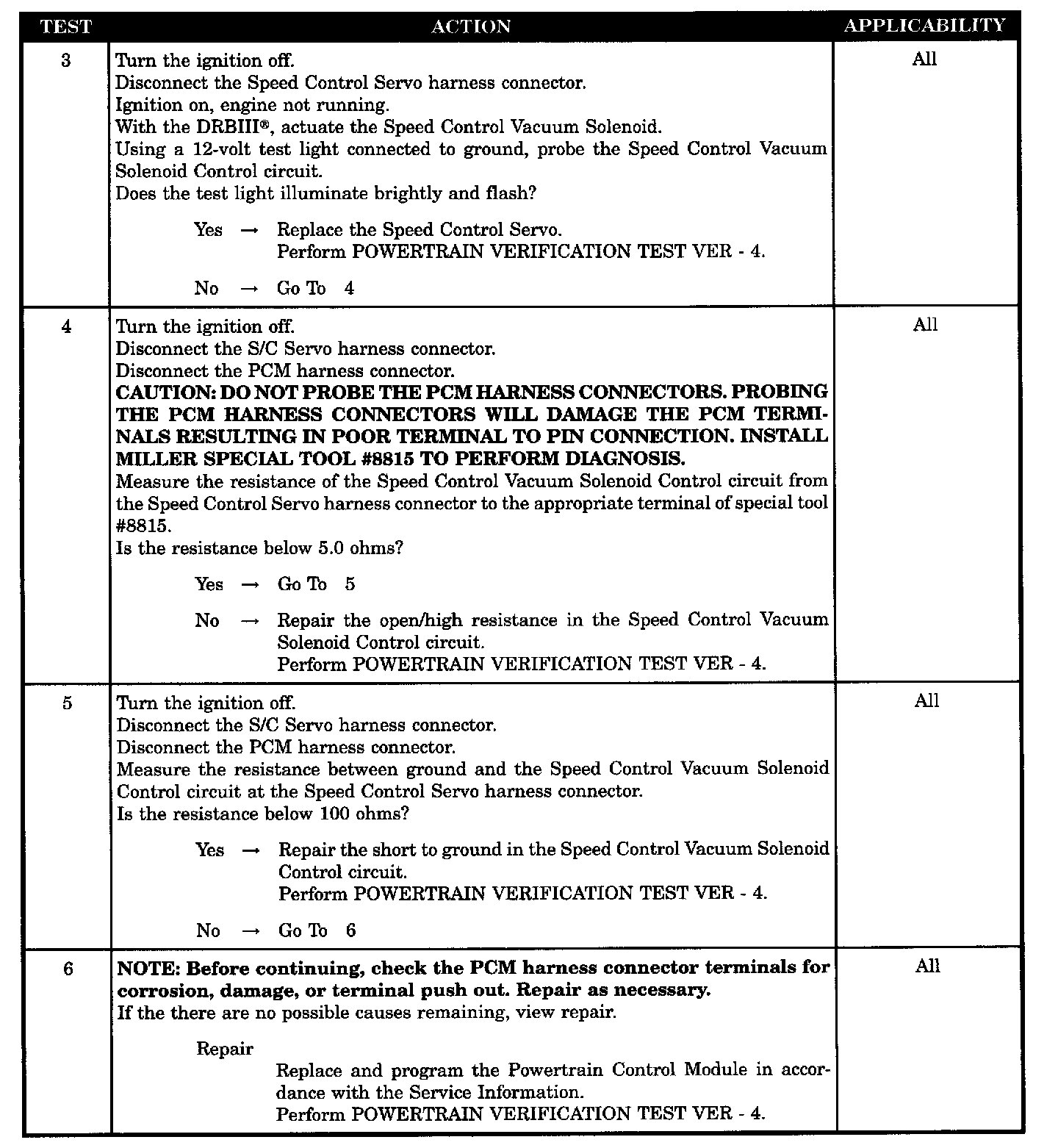

Tests 3 - 6:

SYMPTOM
P0582-SPEED CONTROL VACUUM SOLENOID CIRCUIT

WHEN MONITORED
Ignition ON. Speed Control active.

SET CONDITION
The PCM detects an open or short to voltage in the Speed Control Vacuum Control circuit. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Speed control vacuum solenoid
- Speed control vacuum solenoid control circuit shorted to ground
- Speed control vacuum solenoid control circuit open
- PCM (vacuum solenoid)
