P0513

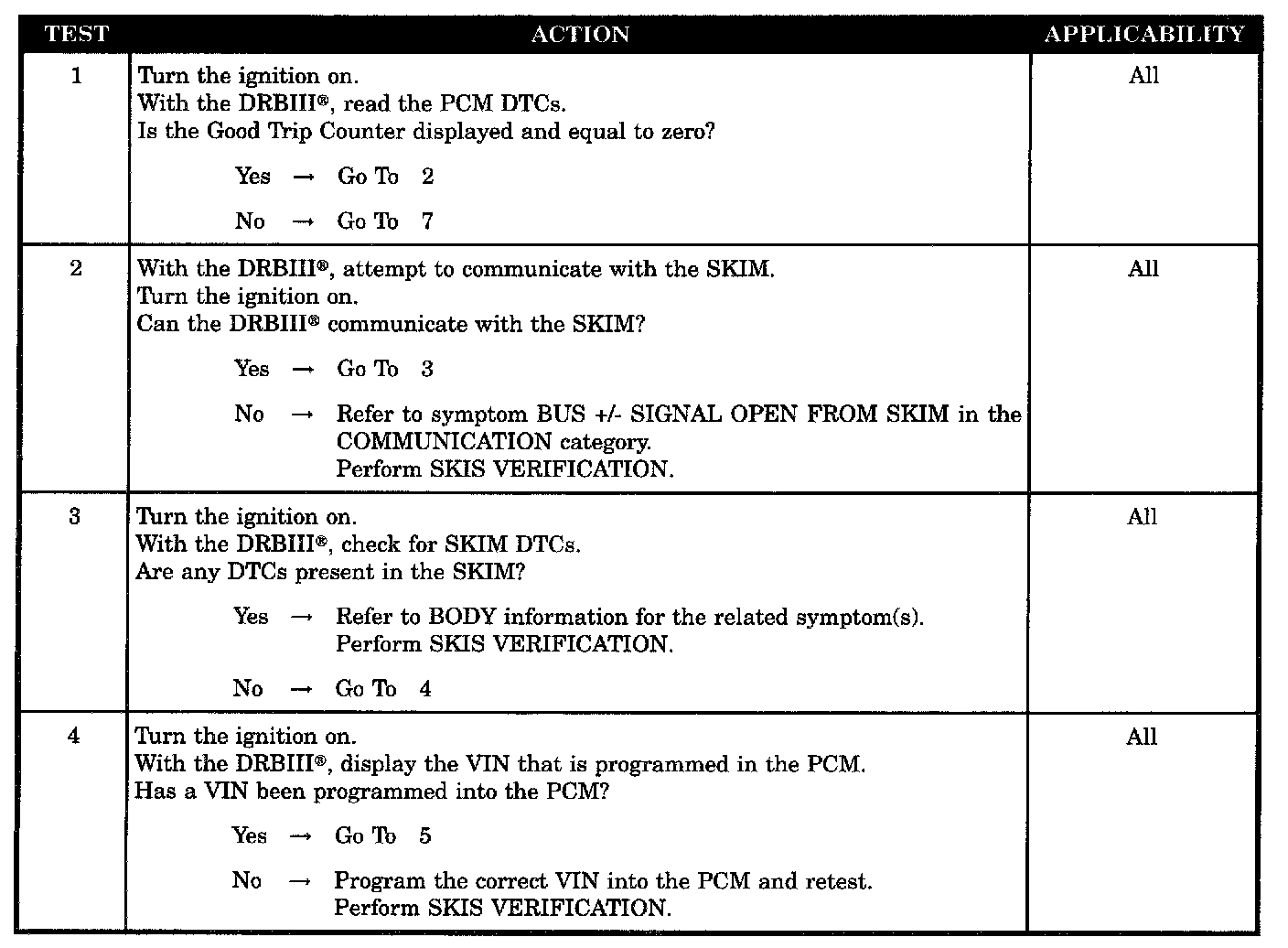

Tests 1 - 4:

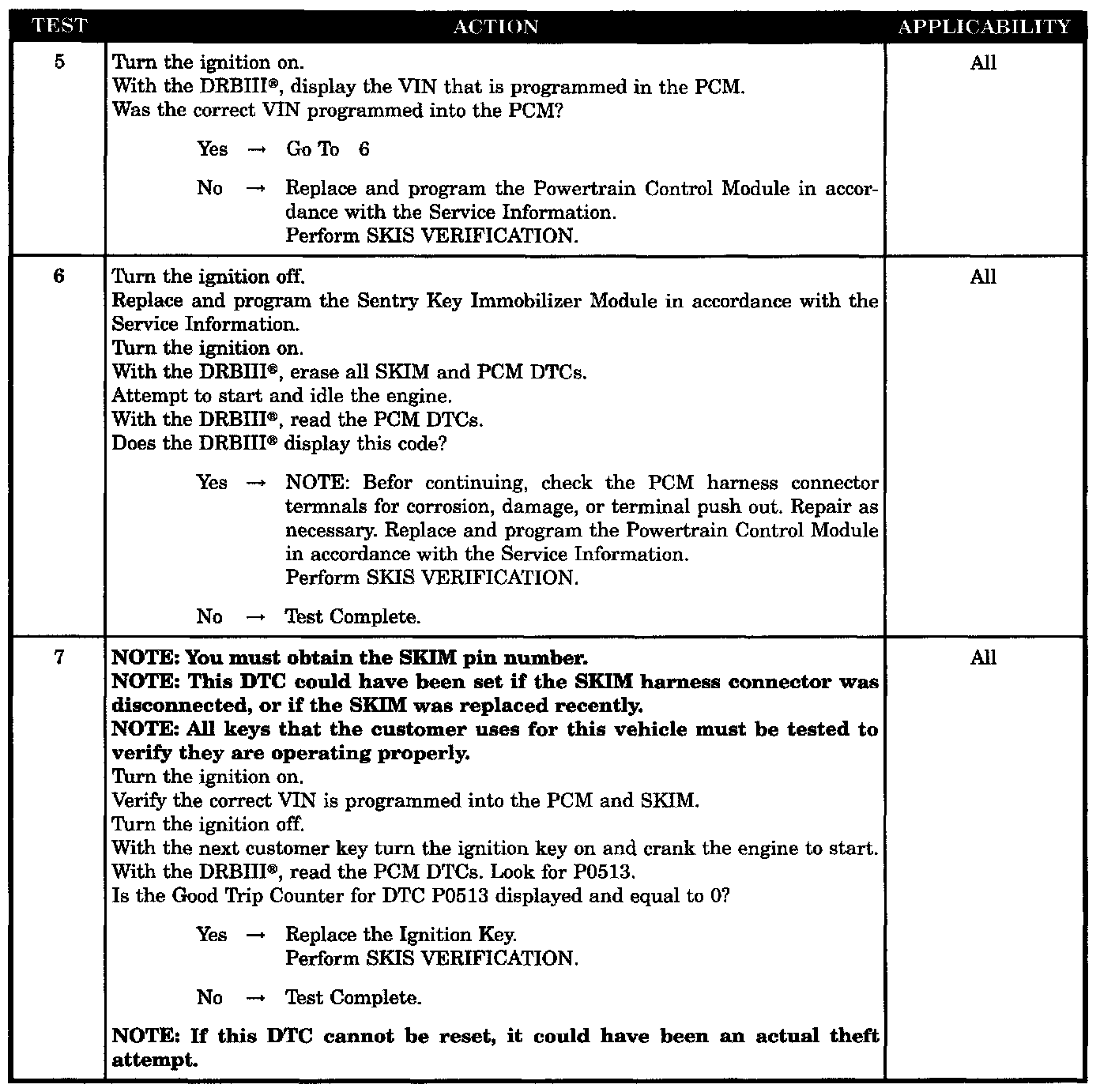

Tests 5 - 7:

SYMPTOM
P0513-INVALID SKIM KEY

WHEN MONITORED
Ignition ON.

SET CONDITION
The PCM detects an invalid SKIM key.

POSSIBLE CAUSES
- Incorrect VIN in PCM
- Invalid SKIM key not present
- NO communication with SKIM
- NO VIN programmed in the PCM
- PCM
- SKIM trouble codes set
