P0501

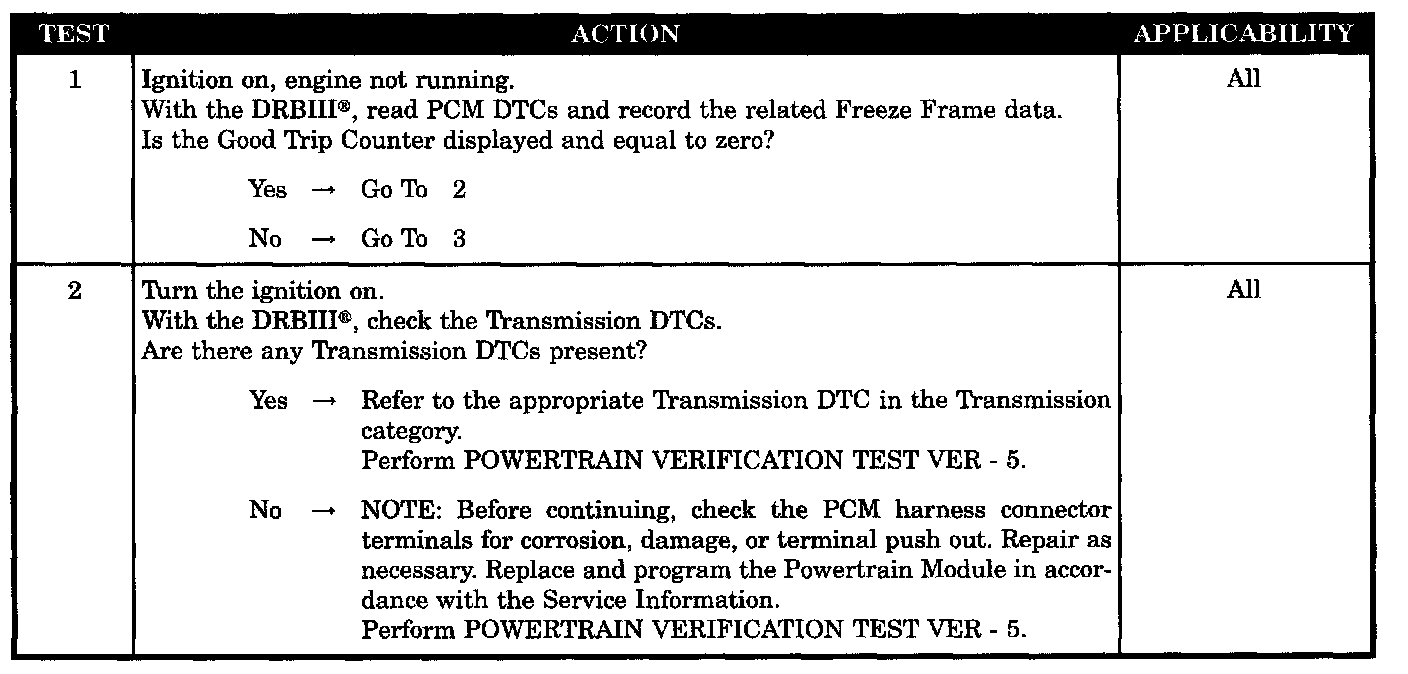

Tests 1 - 2:

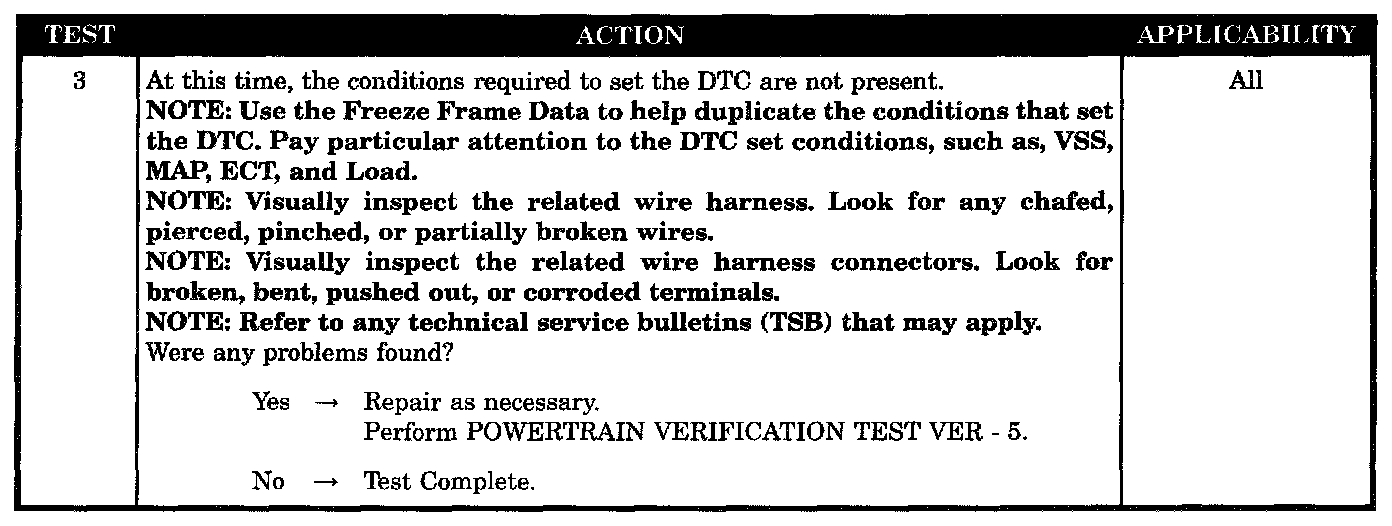

Test 3:

SYMPTOM
P0501-VEHICLE SPEED SENSOR #1 PERFORMANCE

WHEN MONITORED
Engine running. Transmission not in park or neutral. Brakes not applied. Engine run time greater than 10 seconds.

SET CONDITION
The PCM does not see vehicle speed signal from the transmission control side of the PCM. Two Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Transmission DTC(S)
- PCM
