P0461

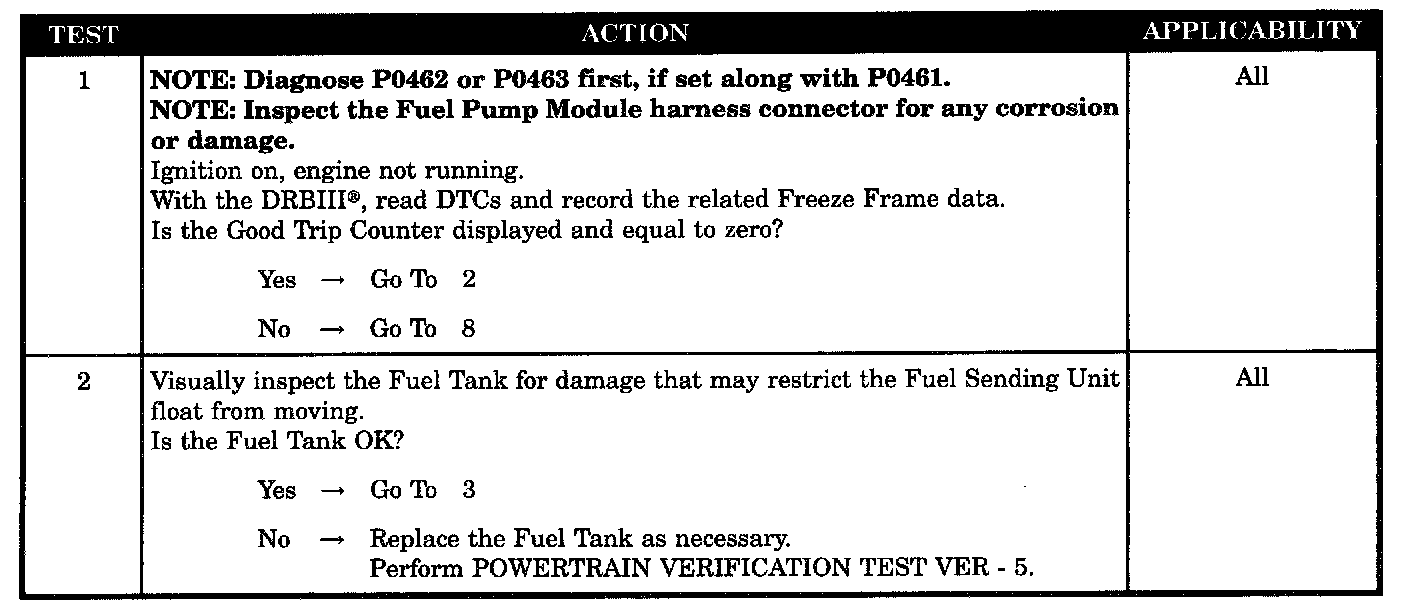

Tests 1 - 2:

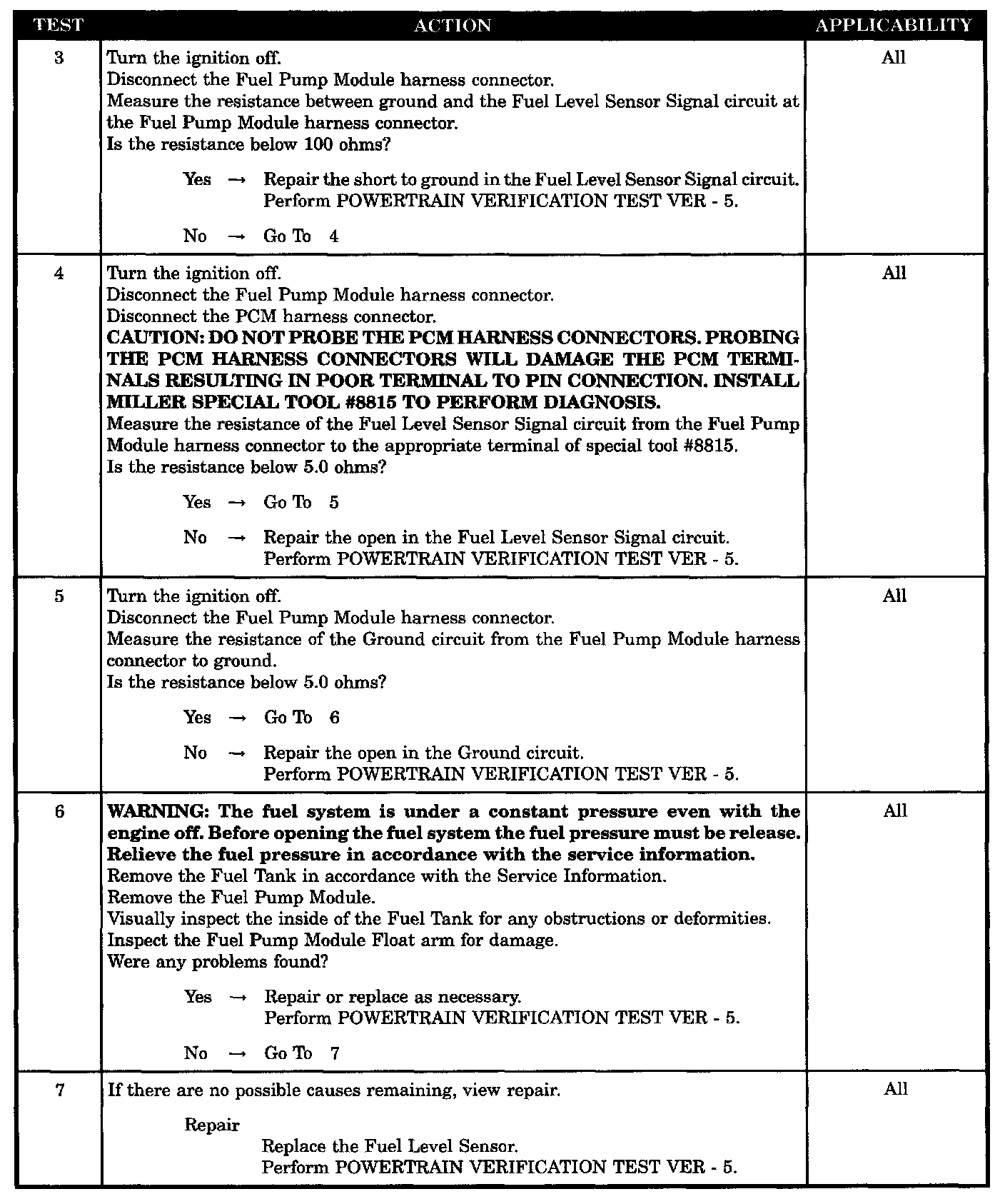

Tests 3 - 7:

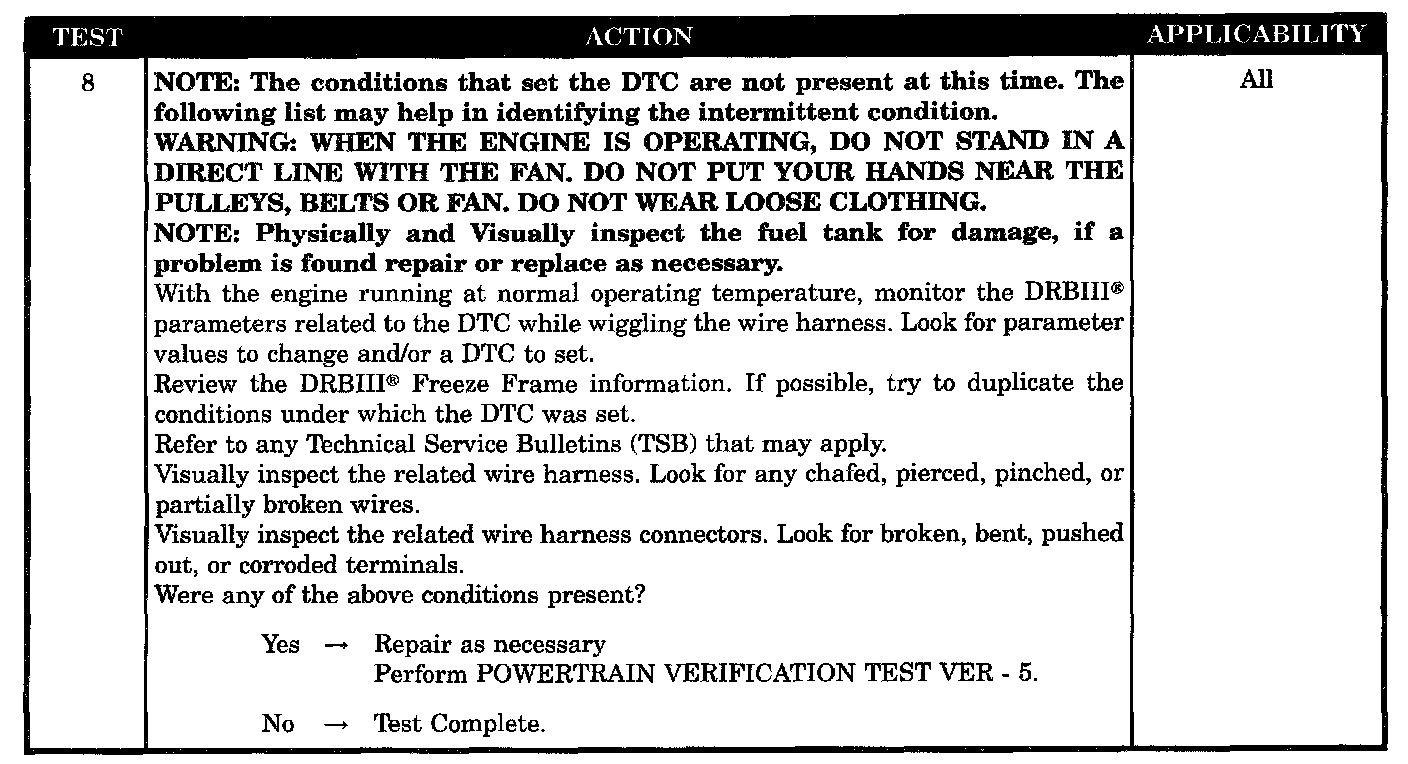

Test 8:

SYMPTOM
P0461-FUEL LEVEL SENSOR #1 PERFORMANCE

WHEN MONITORED
TEST #1: With the ignition ON, the fuel level is compared to the previous key down after a 20 second delay. TEST #2: The PCM monitor the fuel level at ignition ON.

SET CONDITION
TEST #1: If the PCM does not see a difference in fuel level of greater than 0.1 volt the test will fail. TEST #2: If the PCM does not see a change in the fuel level of 0.1765 over a set amount of miles the test will fail. Two Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Visually inspect fuel tank
- Fuel level sensor signal circuit shorted to ground
- Fuel level sensor signal circuit open
- Ground circuit open
- Internal inspection of the fuel tank
- Fuel level sensor
