P0335

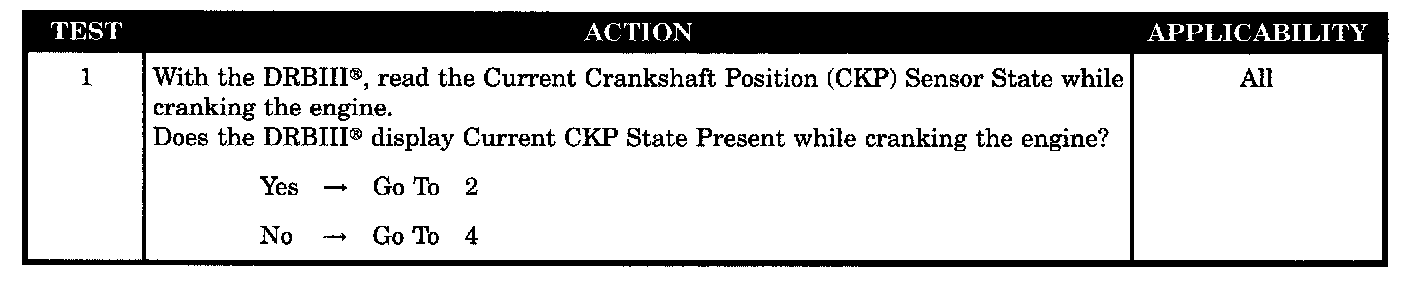

Test 1:

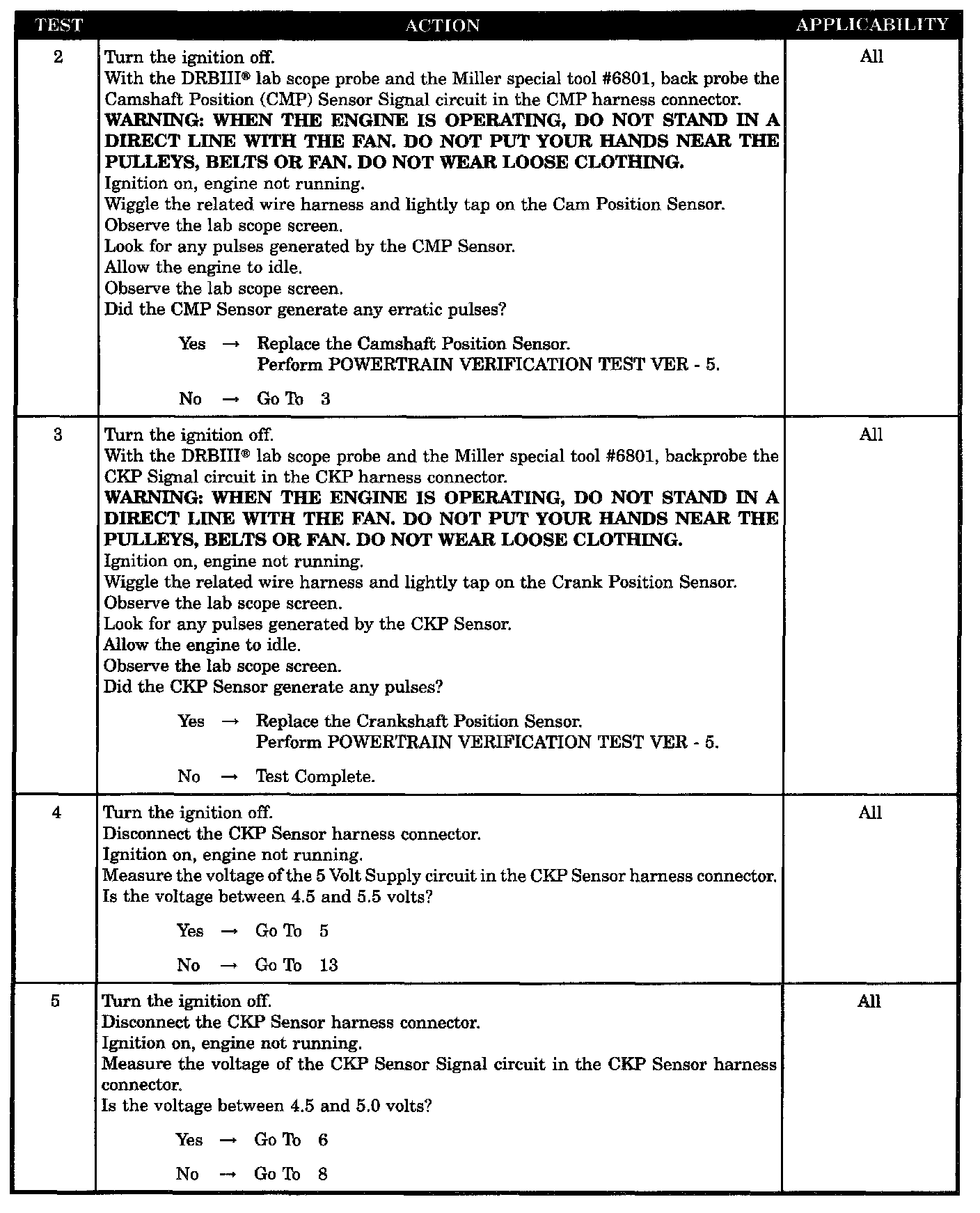

Tests 2 - 5:

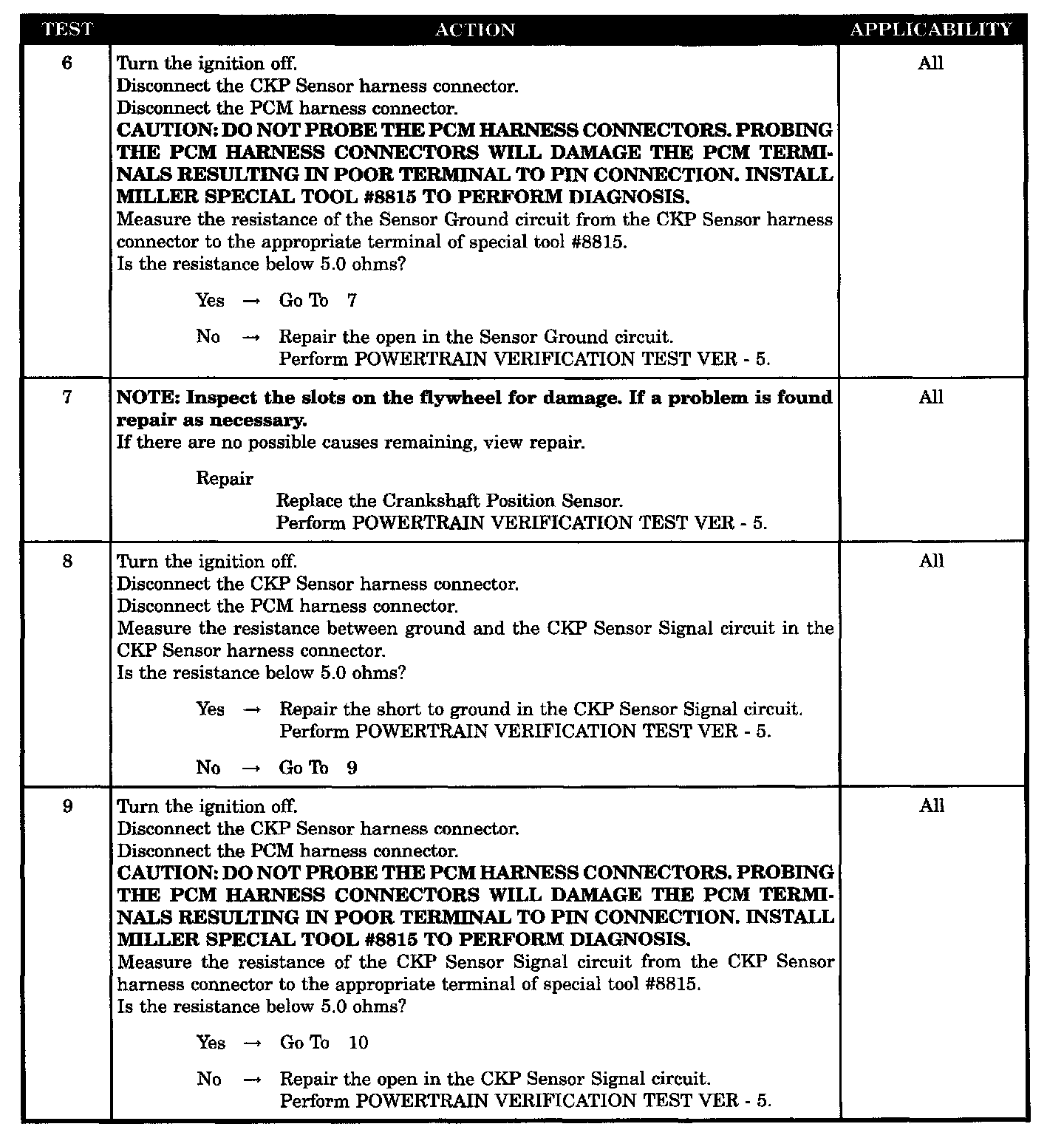

Tests 6 - 9:

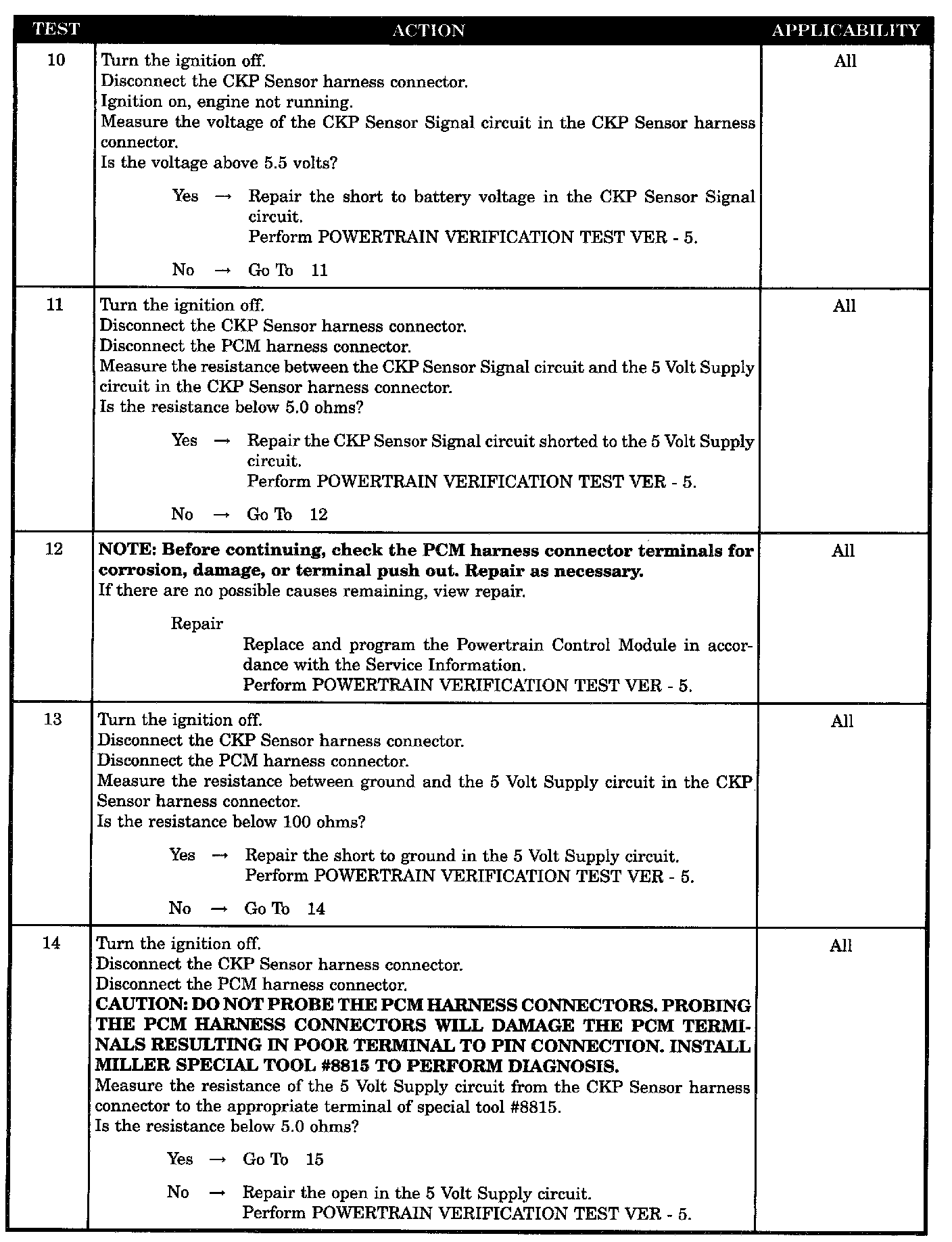

Tests 10 - 14:

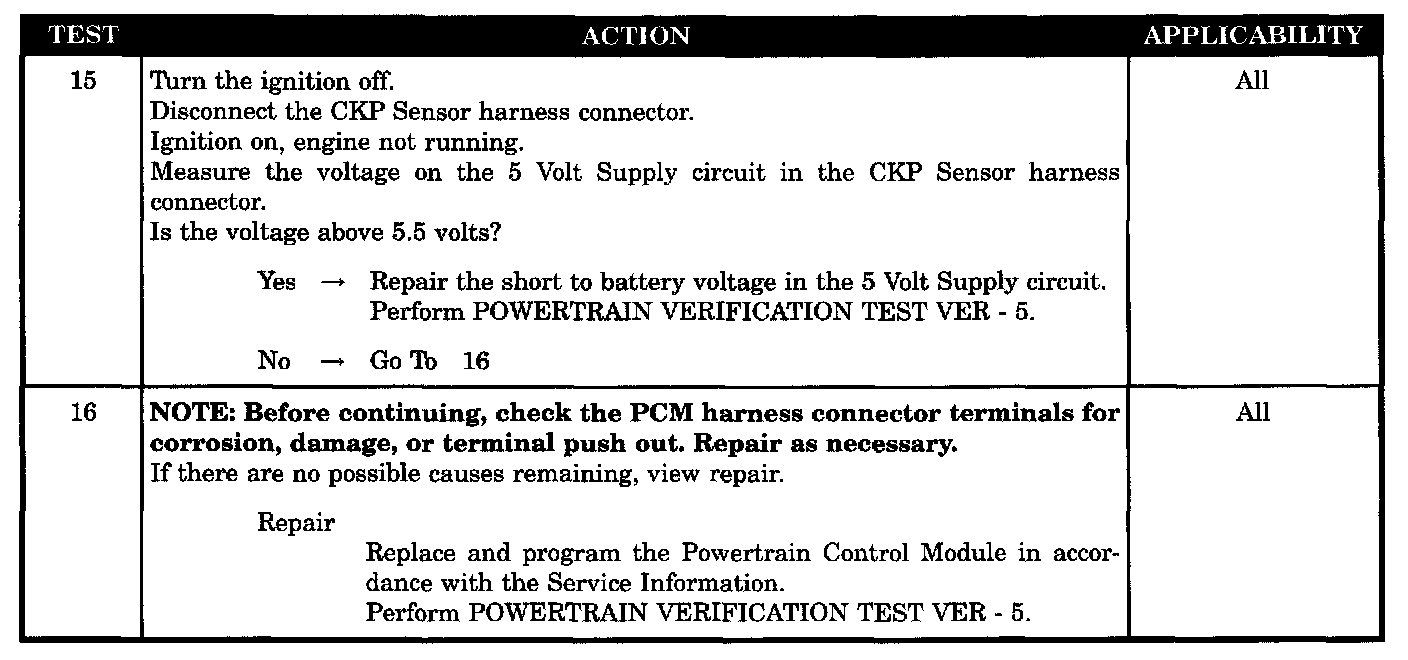

Tests 15 - 16:

SYMPTOM
P0335-CRANKSHAFT POSITION SENSOR CIRCUIT

WHEN MONITORED
Engine cranking.

SET CONDITION
No CKP signal is present during engine cranking, and at least 8 camshaft position sensor signals have occurred.

POSSIBLE CAUSES
- Checking intermittent CMP signal with LAB
- Intermittent CKP signal
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- 5 volt supply circuit shorted to voltage
- Crankshaft position sensor signal circuit shorted ground
- Crankshaft position sensor signal circuit open
- Crankshaft position sensor signal circuit shorted to voltage
- Crankshaft position sensor signal shorted to 5 volt supply circuit
- Sensor ground circuit open
- PCM - 5 volt supply
- PCM - crankshaft position sensor signal
- Crankshaft position sensor
