P0110

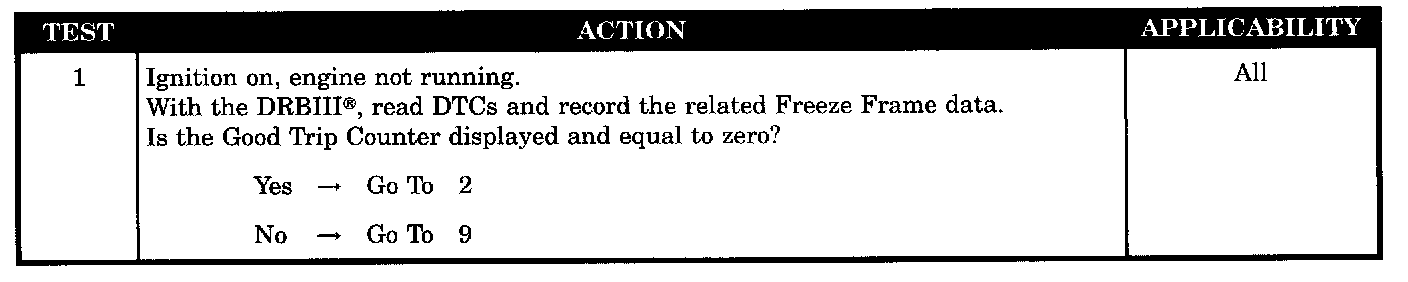

Test 1:

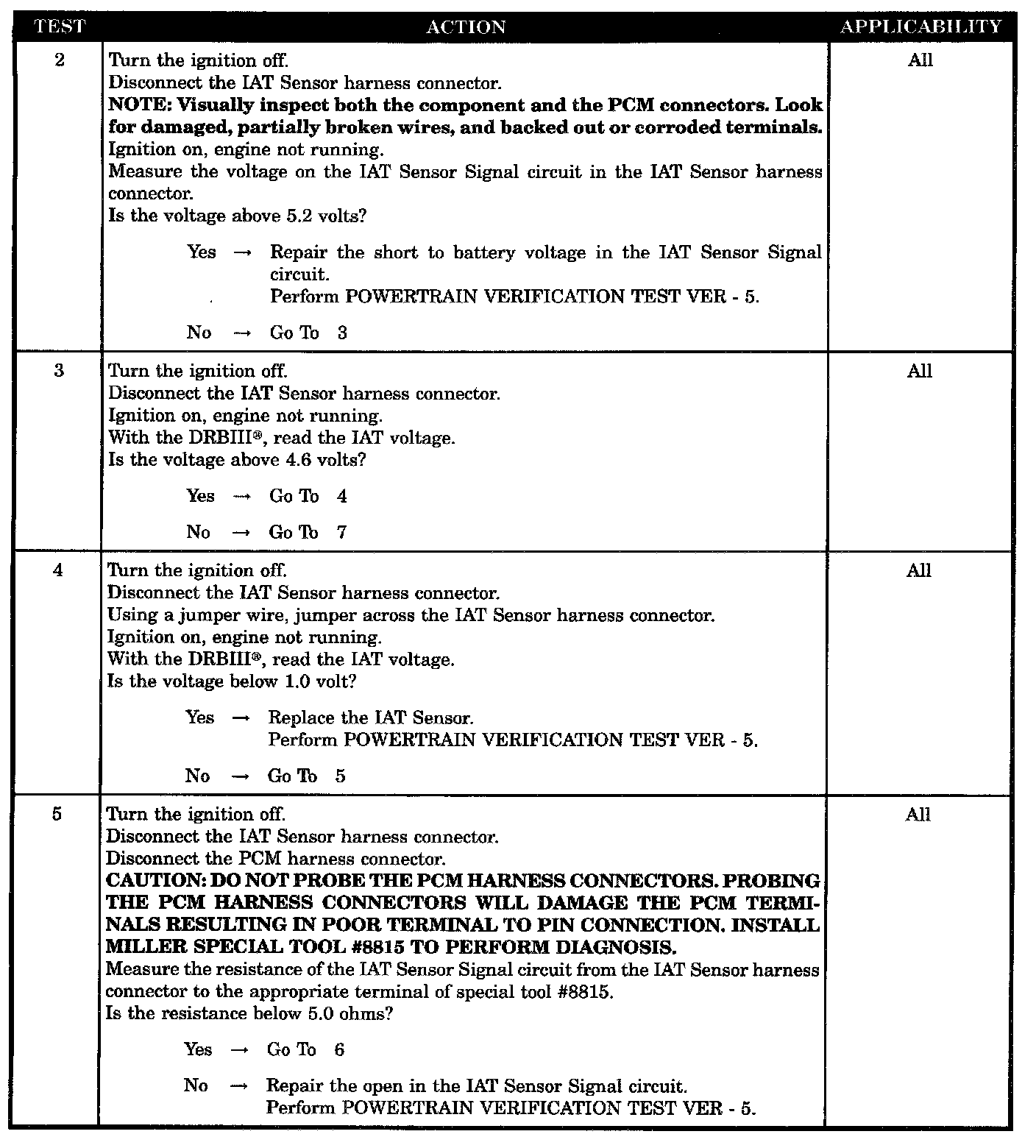

Tests 2 - 5:

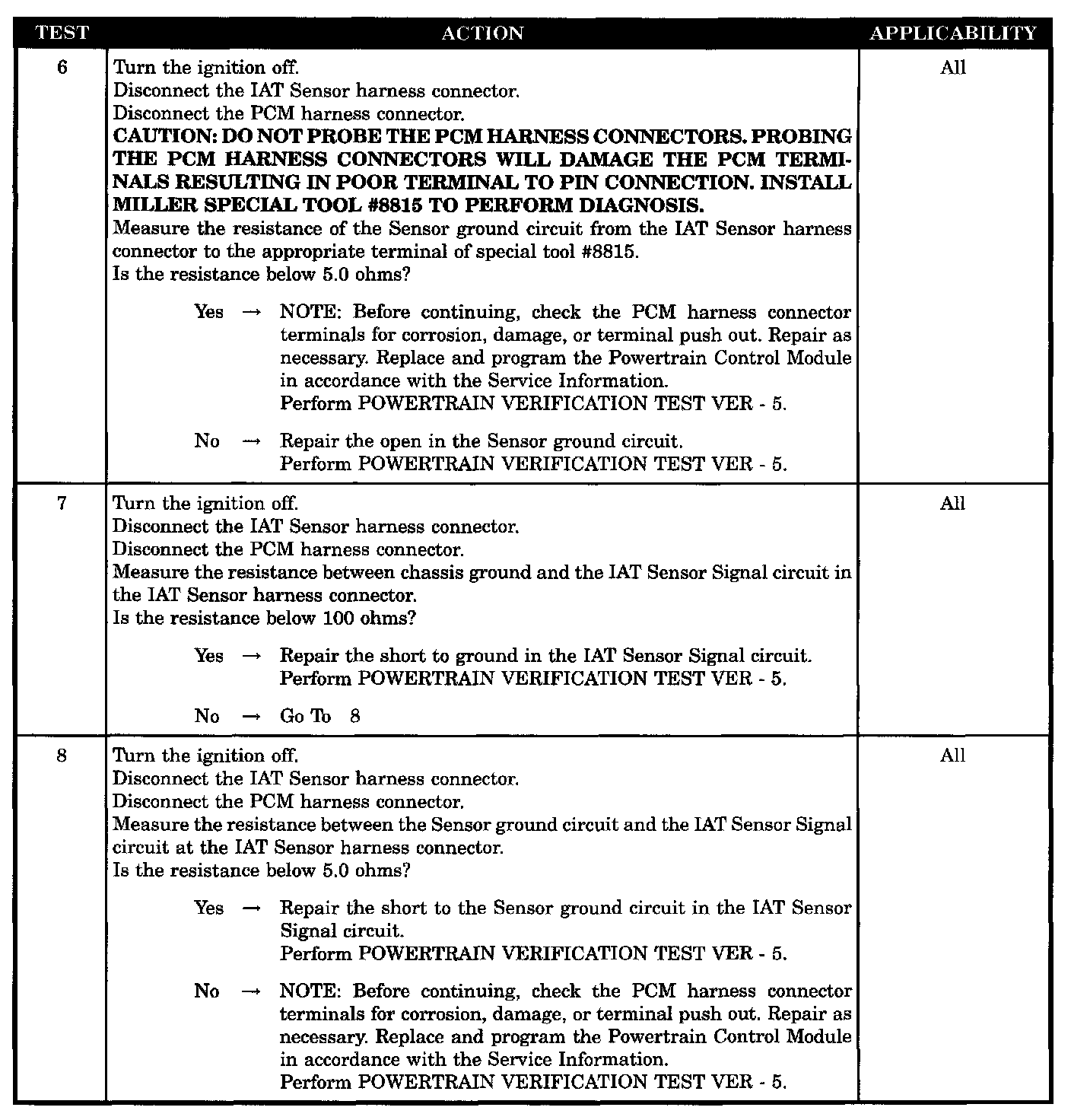

Tests 6 - 8:

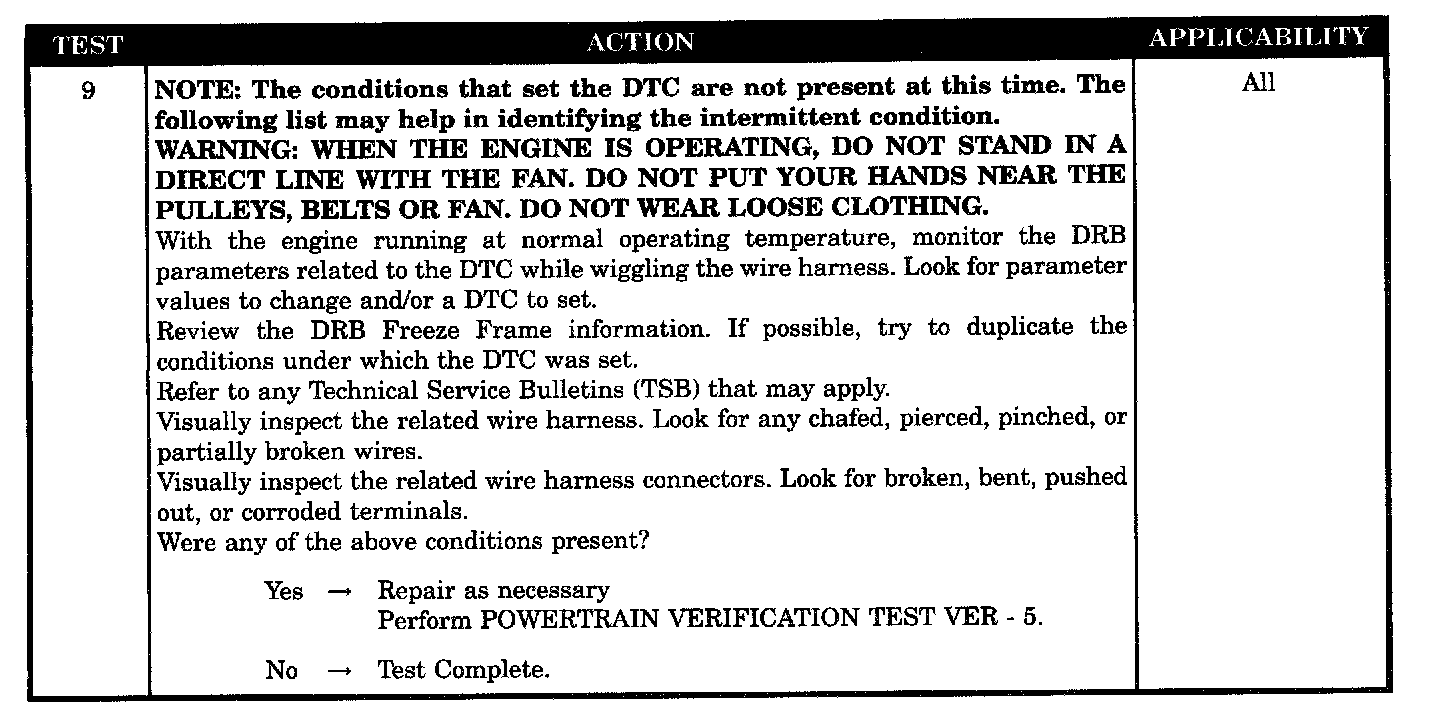

Test 9:

SYMPTOM
P0110-INTAKE AIR TEMPERATURE SENSOR STUCK

WHEN MONITORED
Engine Running.

SET CONDITION
After 4 warm-up cycles, the PCM did not see a 2 °C (18 °F) change in the IAT Sensor voltage within 200 miles Two Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- IAT sensor signal circuit shorted to battery voltage
- IAT sensor voltage below 1.0 volts
- IAT sensor signal circuit open
- Sensor ground circuit open
- IAT sensor signal shorted to ground
- IAT signal circuit short to sensor ground
- PCM high
- PCM low
