P0106

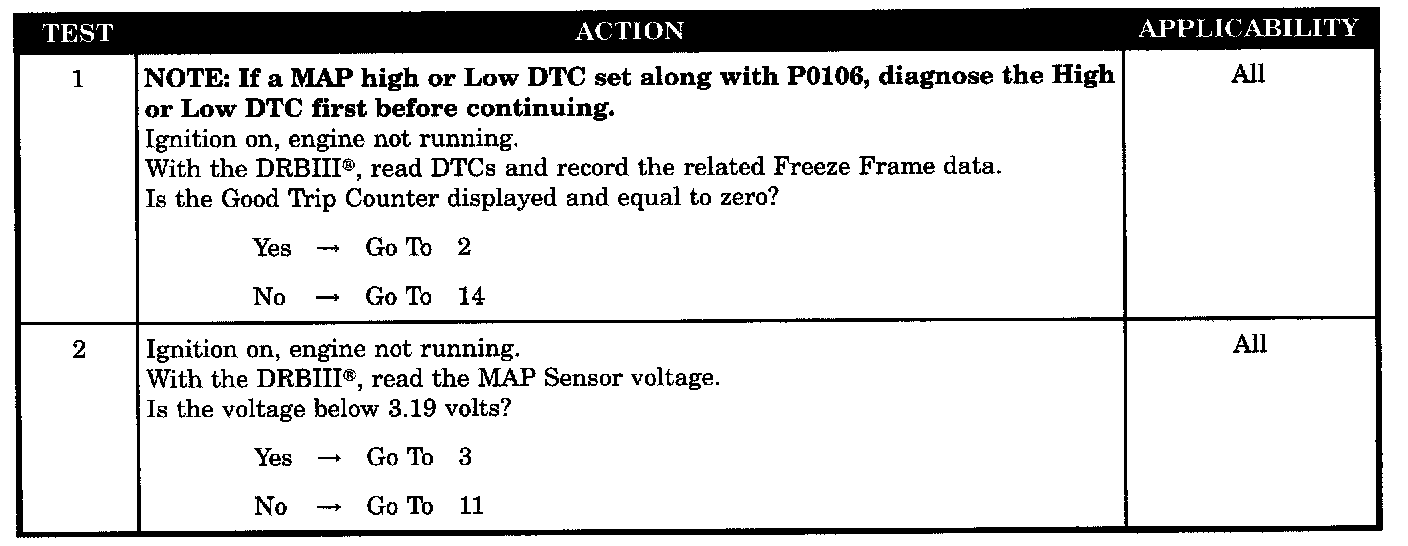

Tests 1 - 2:

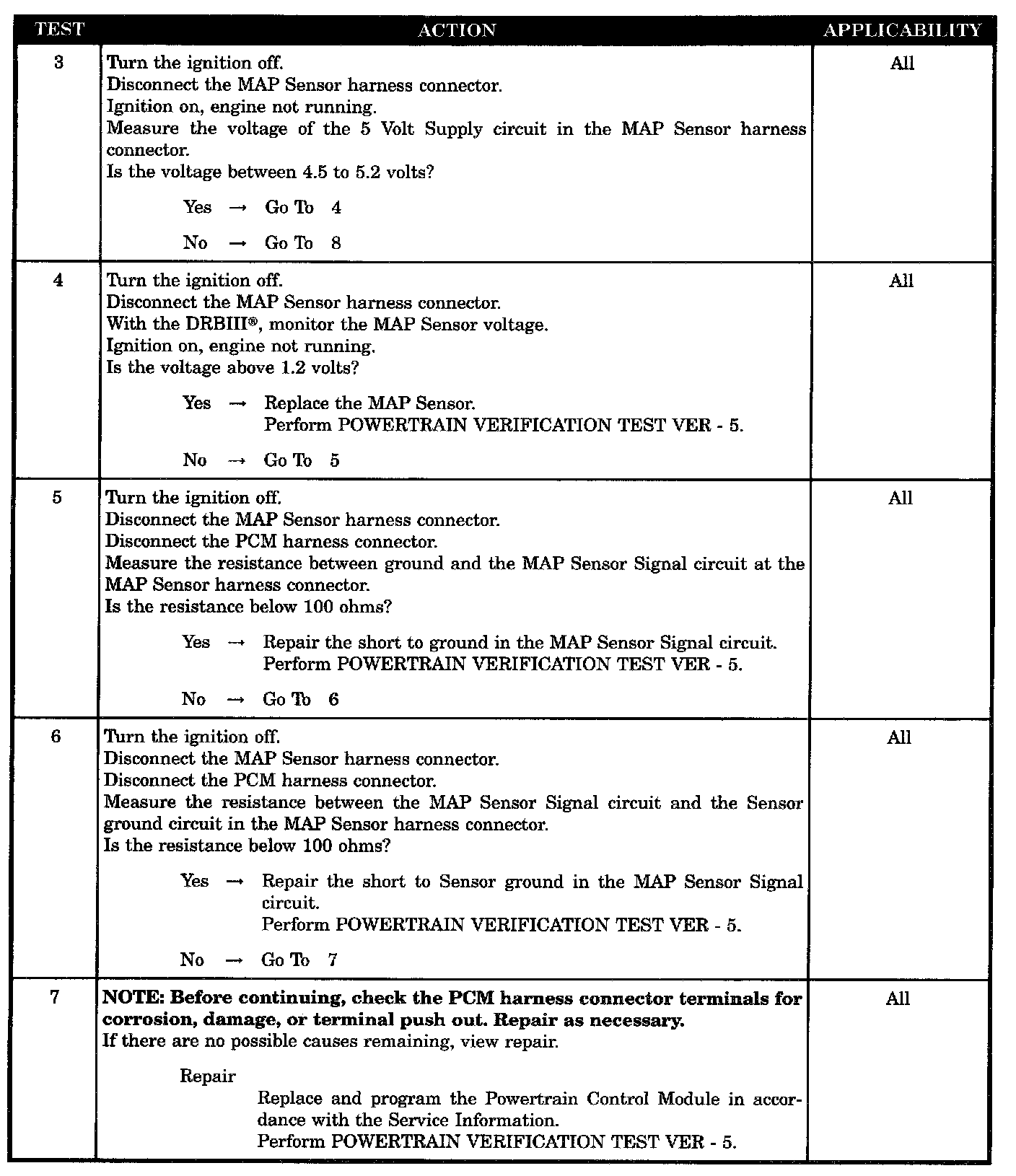

Tests 3 - 7:

Tests 8 - 12:

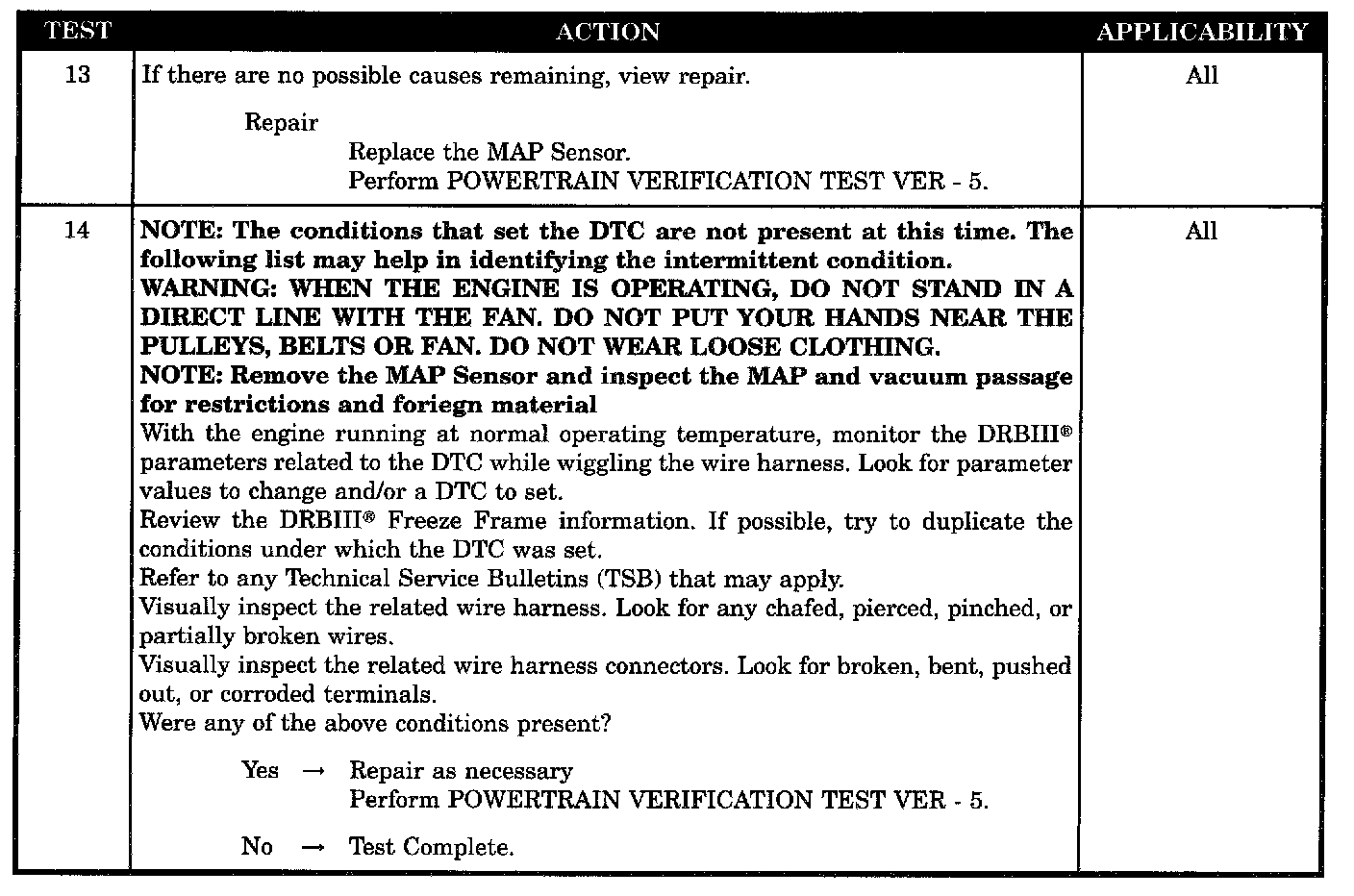

Tests 13 - 14:

SYMPTOM
P0106-MAP SENSOR PERFORMANCE

WHEN MONITORED
With engine greater than 64 RPM and the throttle blade at closed throttle.

SET CONDITION
Too small of a difference is seen between barometric pressure with ignition ON (engine running) and manifold vacuum for 2.80 seconds.

POSSIBLE CAUSES
- Intermittent condition
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- MAP sensor internal failure
- MAP sensor signal circuit shorted to ground
- MAP sensor signal circuit shorted to sensor ground circuit
- MAP 5 volt supply circuit open
- MAP sensor vacuum port
- MAP sensor
- PCM 5 volt supply circuit
- PCM MAP sensor signal
