P0073

Tests 1 - 2:

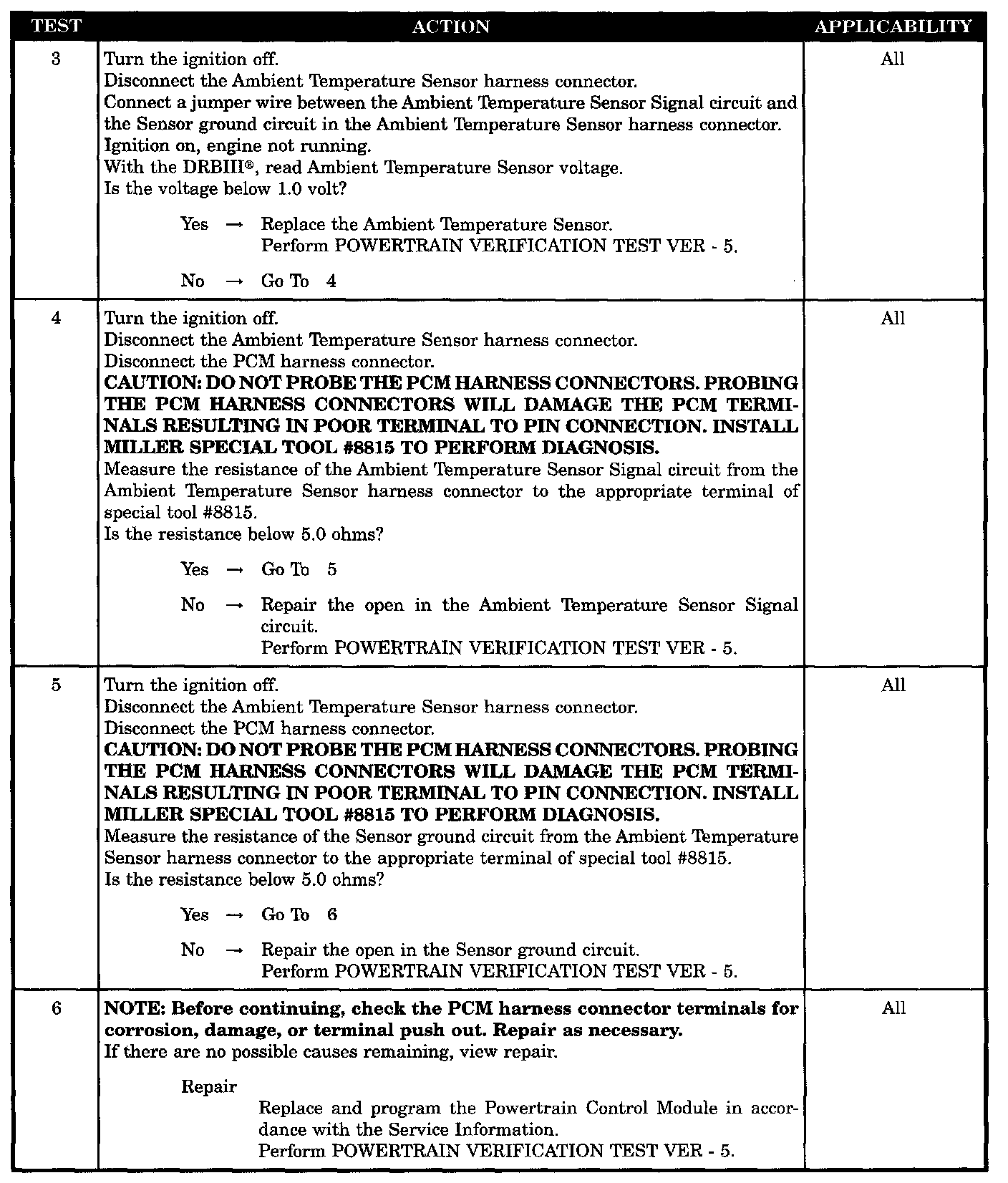

Tests 3 - 6:

Test 7:

SYMPTOM
P0073-AMBIENT TEMP SENSOR HIGH

WHEN MONITORED
The ignition key ON.

SET CONDITION
The Ambient Temperature Sensor voltage is greater than 4.94 volts. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Ambient temperature sensor signal circuit shorted to battery voltage
- Ambient temperature sensor internal failure
- Ambient temperature sensor signal circuit open
- Sensor ground circuit open
- PCM
