P0072

Tests 1 - 3:

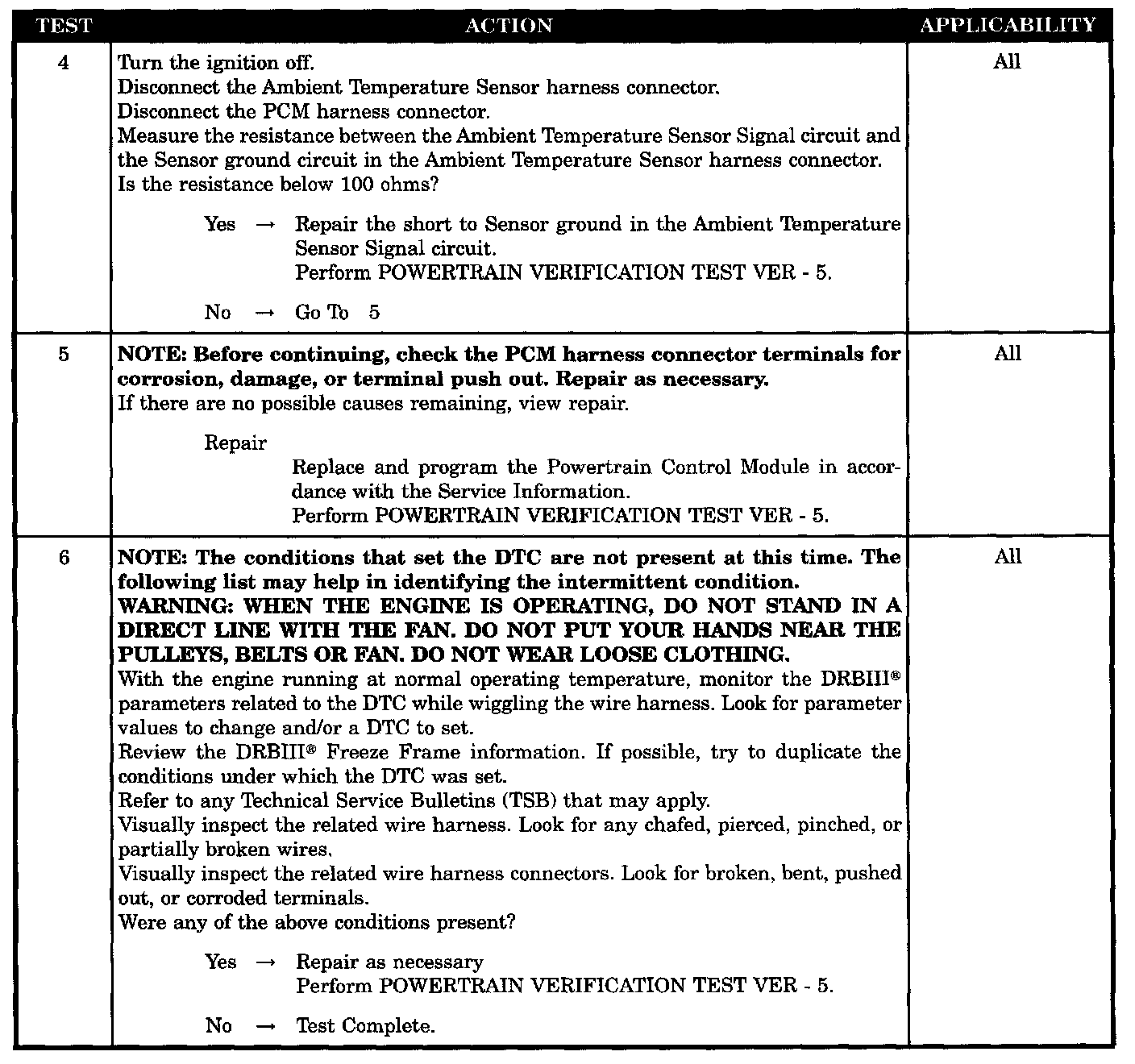

Tests 4 - 6:

SYMPTOM
P0072-AMBIENT TEMP SENSOR LOW

WHEN MONITORED
The ignition key ON.

SET CONDITION
Ambient Temperature Sensor is less than 0.0392 of a volt at the PCM. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Ambient temperature sensor internal failure
- Ambient temperature sensor signal shorted to ground
- Ambient temperature sensor signal shorted to sensor ground circuit
- PCM
