Wiper/Washer

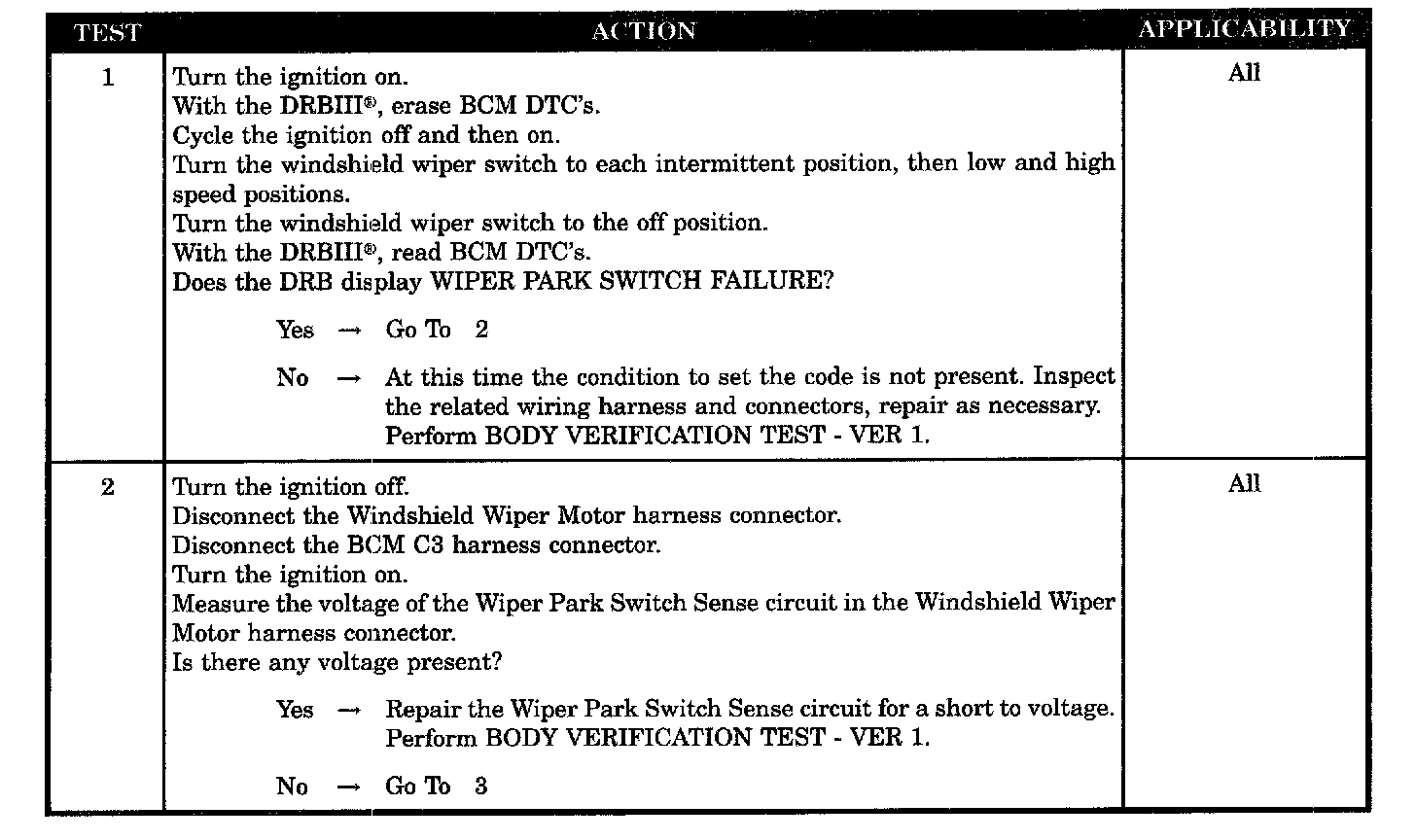

Test 1 - 2:

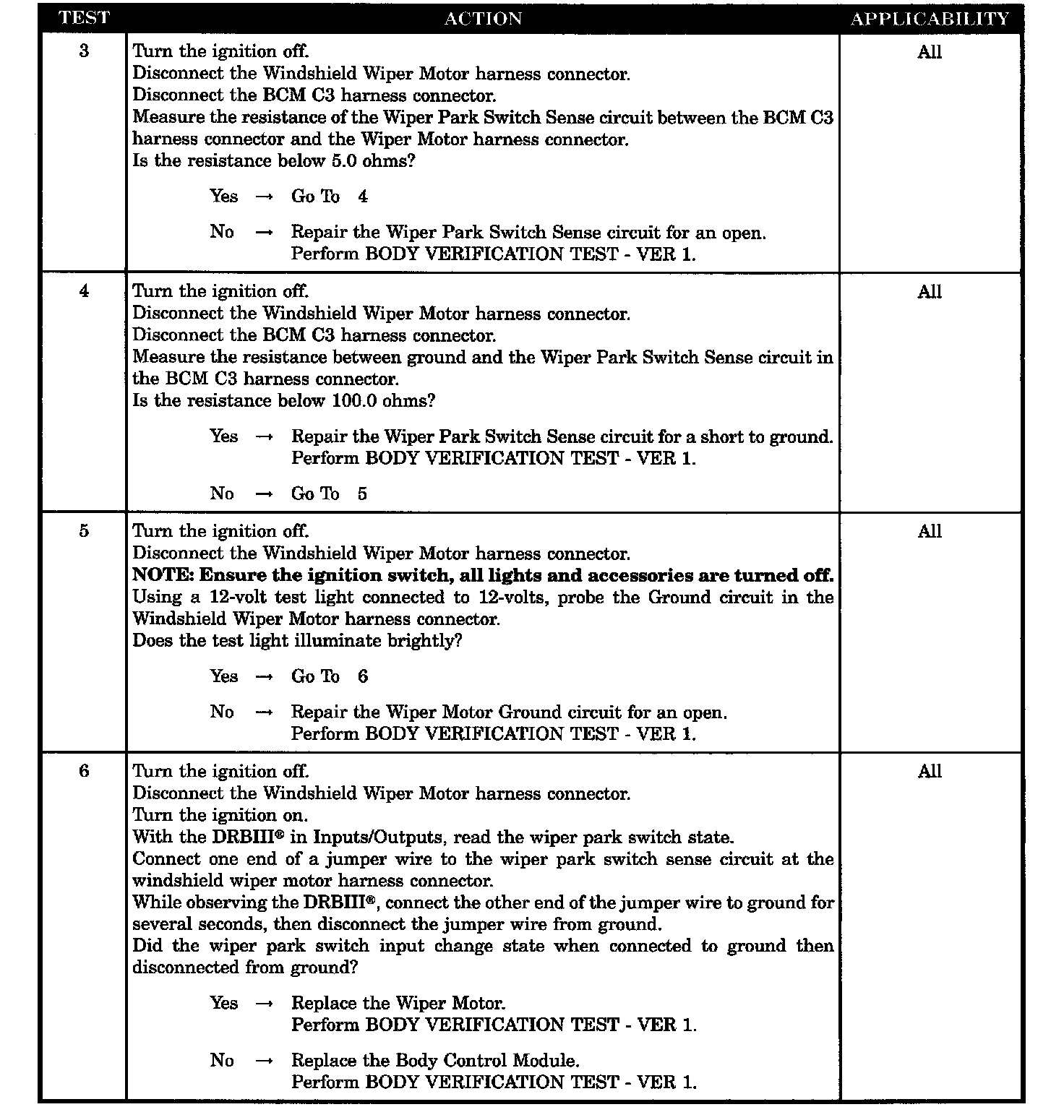

Test 3 - 6:

SYMPTOM
WIPER PARK SWITCH FAILURE/WIPERS RUN CONTINUOUSLY

WHEN MONITORED
The ignition must be in the run position and battery voltage supplied to the BCM on the Fused B(+) circuit.

SET CONDITION
The code will set if the BCM does not detect a low to high voltage transition on the Wiper Park Switch Sense circuit within 8 seconds after energizing the wiper relay On/Off relay.

POSSIBLE CAUSES
- Wiper park switch operation
- Wiper park switch sense circuit shorted to voltage
- Wiper park switch sense circuit open
- Wiper park switch sense circuit shorted to ground
- Ground circuit open
- Wiper motor operation
- BCM
